Associated RC10 - Wheels, Tires, and Body Installation (Bag J)

18
:: :: Electronics Build Electronics Build - - Bag I Bag I - Step 6- Step 6
Battery not
included!
6332
Body clip

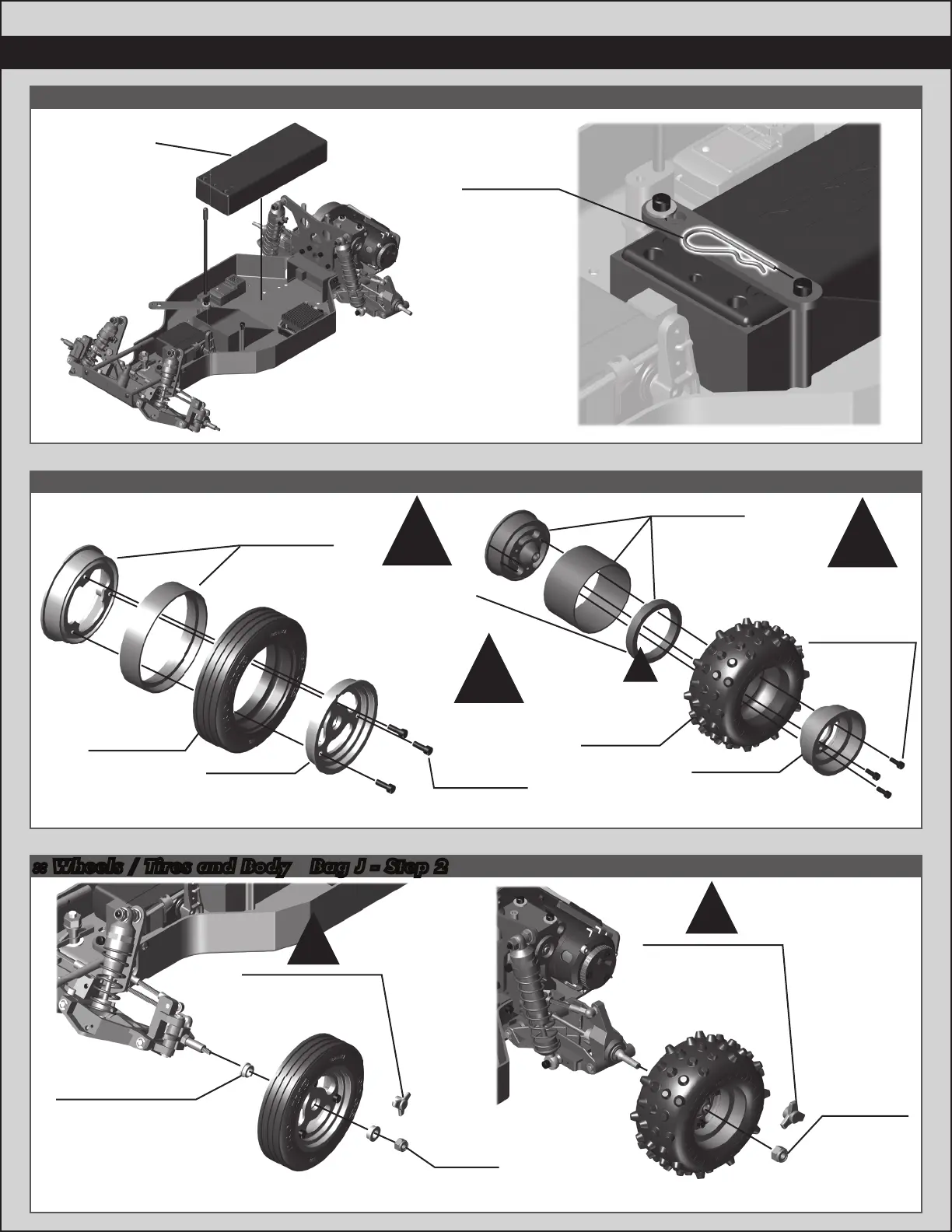

:: Wheels / Tires and Body - - Bag J - Step 2
!
!
8-32 steel
locknut
4-40
locknut
RC10 wheel
knock off, Clear
(for display only)
RC10 wheel
knock off, Clear
(for display only)
Oilite bushing
3/16x5/16x1/8
x2x2
x2x2
x2x2
x2x2
x2x2
:: Wheels / Tires and Body:: Wheels / Tires and Body - - Bag J Bag J - Step 1- Step 1
Build 2 Build 2
Use optional
wheel insert for
aftermarket
vintage tires!
TIP: For faster motors, it is recommended
to glue the tire bead to the wheels!
Do not
overtighten
wheel screws!
Do not
overtighten
wheel screws!
!
!
!
4-40 x 5/16
SHCS
RC10 rear
wheel,
Clear
RC10 front
wheel,
Clear
4-40 x 5/16
SHCS
6313
RC10
front tire
RC10 front
wheel,
Clear
RC10 rear
wheel,
Clear
6314
RC10
rear tire
x3x3
x3x3
!
Build left and right sides! Build left and right sides!
