Associated RC10 - Page 17

17

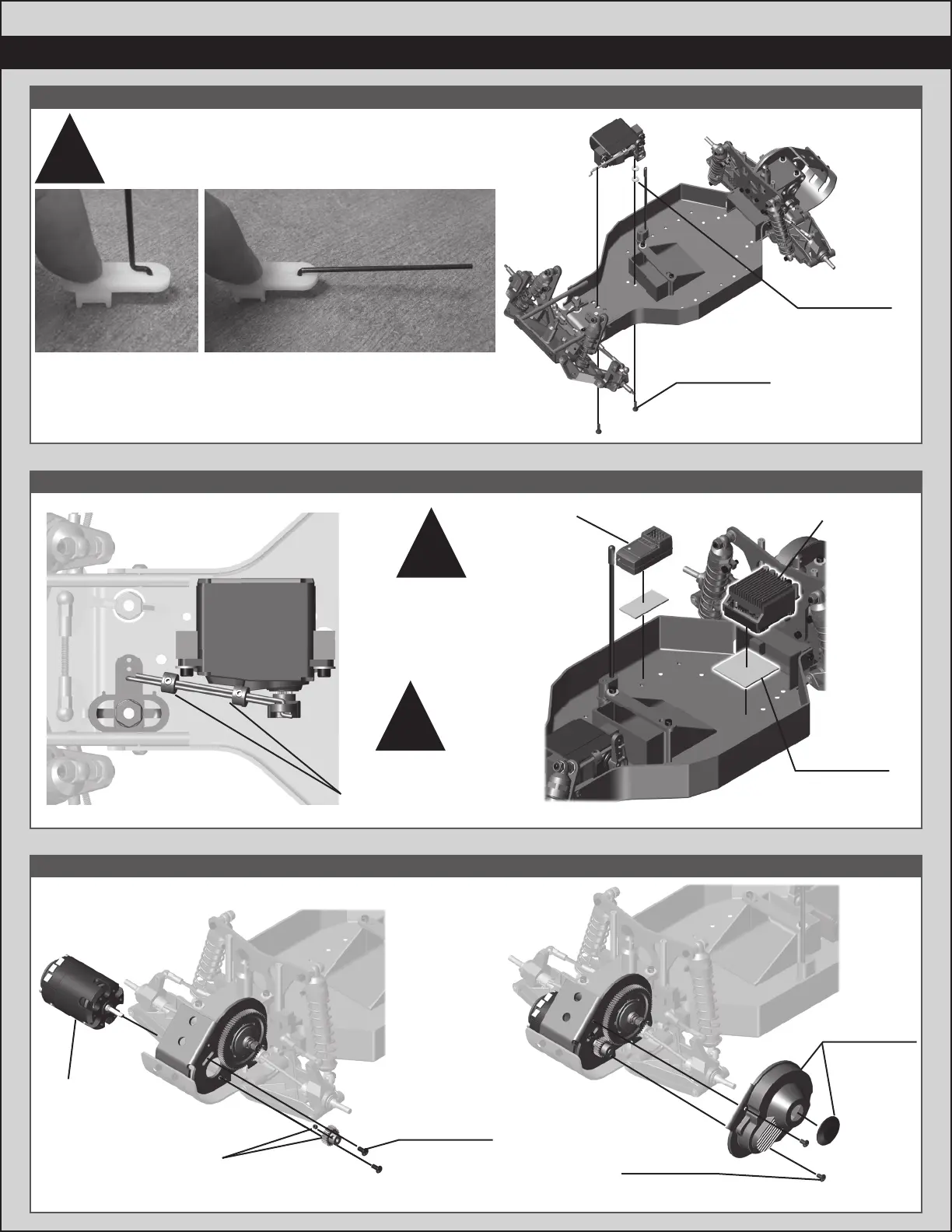

:: :: Electronics Build Electronics Build - - Bag I Bag I - Step 5- Step 5
31531
3 x 6mm
BHCS
Gear cover
and plug
x2x2
Motor not
included!
Pinion not
included!
4-40 x 3/16
BHCS
x2x2
:: :: Electronics Build Electronics Build - - Bag I Bag I - Step 4- Step 4
ESC not
included!
Receiver not
included!
6727
Servo tape
x2x2
Install Z bend servo wire
into steering bellcrank
as shown. Ensure that
full steering throw can
be achieved with your
servo horn setup!
Space collars as
wide as possible
while still clamping
both wires.
!
!
:: :: Electronics Build Electronics Build - - Bag I Bag I - Step 3- Step 3
4-40 x 1/2
FHCS
#4 aluminum
washer
x2x2
x2x2
Follow steps below to properly install Z
bend wire into servo horn and steering link.
NOTE: Hole choice may vary depending on
servo and servo horn used.
1) Press down on the
Z bend wire....
2) Rotate the wire so the Z bend wire is
fully installed into steering link as shown.
TIP: Chamfering the top
of the hole slightly will help
to press in Z bend wire.
!
