Associated RC10 - Page 9

9

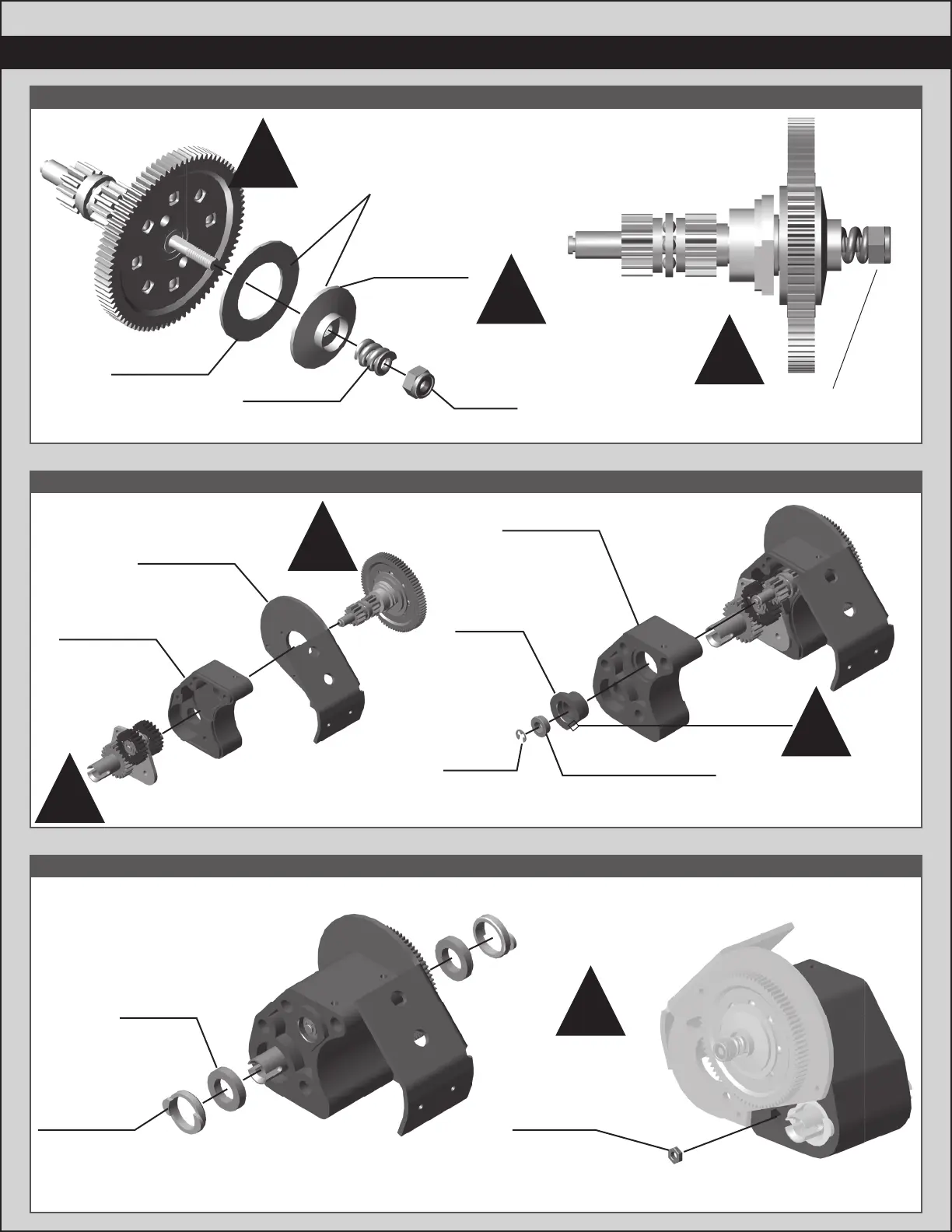

:: :: Transmission Build Transmission Build - Bag C - Bag C - Step 7- Step 7
:: :: Transmission Build Transmission Build - Bag C - Bag C - Step 8- Step 8
:: :: Transmission Build Transmission Build - Bag C - Bag C - Step 9- Step 9
RC10 diff
outer hub
5-40
locknut
Press nut all the
way inside the
transmission
case.
!
4-40
plain nut
(small)
Diff drive
rings
RC10
transmission
case, Clear
(right)
6311
RC10 motor
plate, Silver
RC10 diff
spring
RC10
bearing
adapter,
Clear
Oilite bushing
3/16 x 5/16 x 1/8
6299
E-clip
(small)
RC10 felt
seal,
Clear
RC10
felt
x2x2
x2x2
RC10
transmission
case, Clear
(left)
Tighten locknut until spring is fully
compressed, then back out until lock nut is
flush with shaft end. Adjust as necessary.
!
Make sure diff
rings sit flat on hub!
Cutting a slot in the
bearing adapter
will make e-clip
installation easier!
!
!
1
2
Caution:
Do not get any grease
on the back side of the
diff drive rings or the
outer hub.
!
