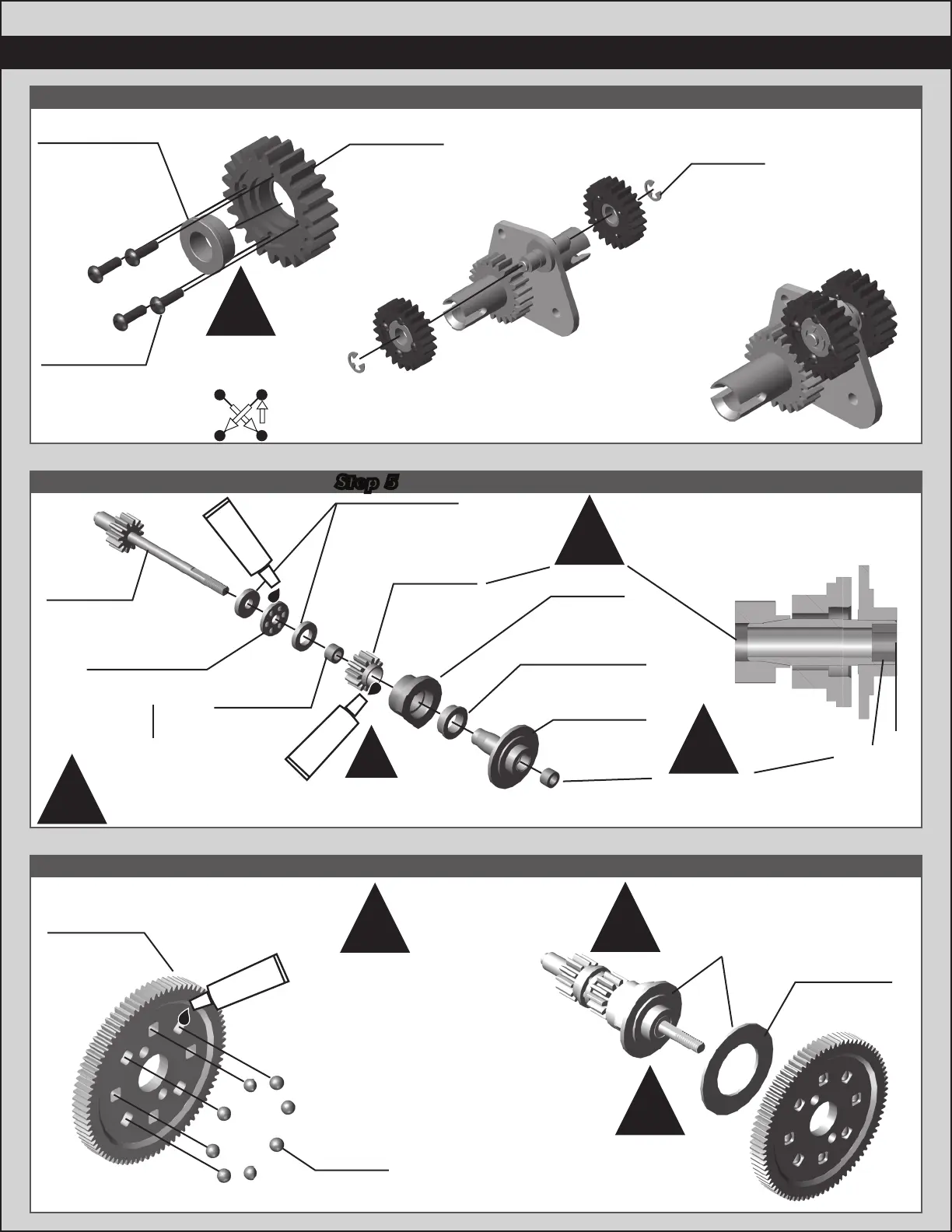

:: :: Transmission Transmission BuildBuild - Bag C - Bag C -- Step 4Step 4
:: :: TransmissionTransmission BuildBuild - Bag C - Bag C -- Step 5
:: :: Transmission Build Transmission Build - Bag C - Bag C - Step 6- Step 6
Build 2
Bushing
x2x2
Carefully tighten
screws in
x- pattern!
!
6299
E-clip
(small)
0-80 x 3/16
BHCS
RC10 diff
bushing
RC10
bearing
adapter
Spur gear
81T, 48P
Diff drive
rings
RC10 diff
shaft and
pinion
RC10 diff
thrust bearing
RC10 diff
thrust washers
(small & large)
RC10 diff
pinion
RC10 diff
tube w/hub
Oilite bushing
1/4 x 3/8 x 1/8
Oilite
bushing
3/16x5/16x1/8
x4x4
x2x2
RC10 idler
gear
x8x8
1/8 diff
balls
#6588
black grease
#6636
silicone lube
Press bushing
in, make sure it is
flush with diff hub!
Use #6636
silicone lube on the
inside of diff pinion
Use just
enough black
grease to cover
the balls on the
thrust bearing!
Slip the gear onto the tube and tap the
assembly together using the handle
of a hammer or a plastic handle of a
screwdriver. Do not use a vise!
Apply silicone grease
into each hole of the spur
gear before inserting
diff balls.
Insert diff balls opposite
of stamped number on
spur gear. Make sure
they are evenly
covered in lube!
!
!
!
!
!
#6636
silicone lube
Make sure diff
rings sit flat on hub!
Caution:
Do not get any
grease on the back
side of the diff drive
rings or the diff hub.
!
!
To Next Page
