Introduction to the Series 40 Conveyor
KPI-JCI stationary
conveyors are designed for
transporting large amounts
of bulk material and are built
in a wide variety of sizes to
handle many different types
of material.
The Series 40 conveyor
consists of an endless belt
which revolves around a head
pulley at one end of a steel
frame and a tail pulley at the
other end.
Material is fed onto a belt
through a hopper or feeder at
the tail pulley, and is unloaded
at the head pulley.
Stationary conveyors provide
great fl exibility in application.

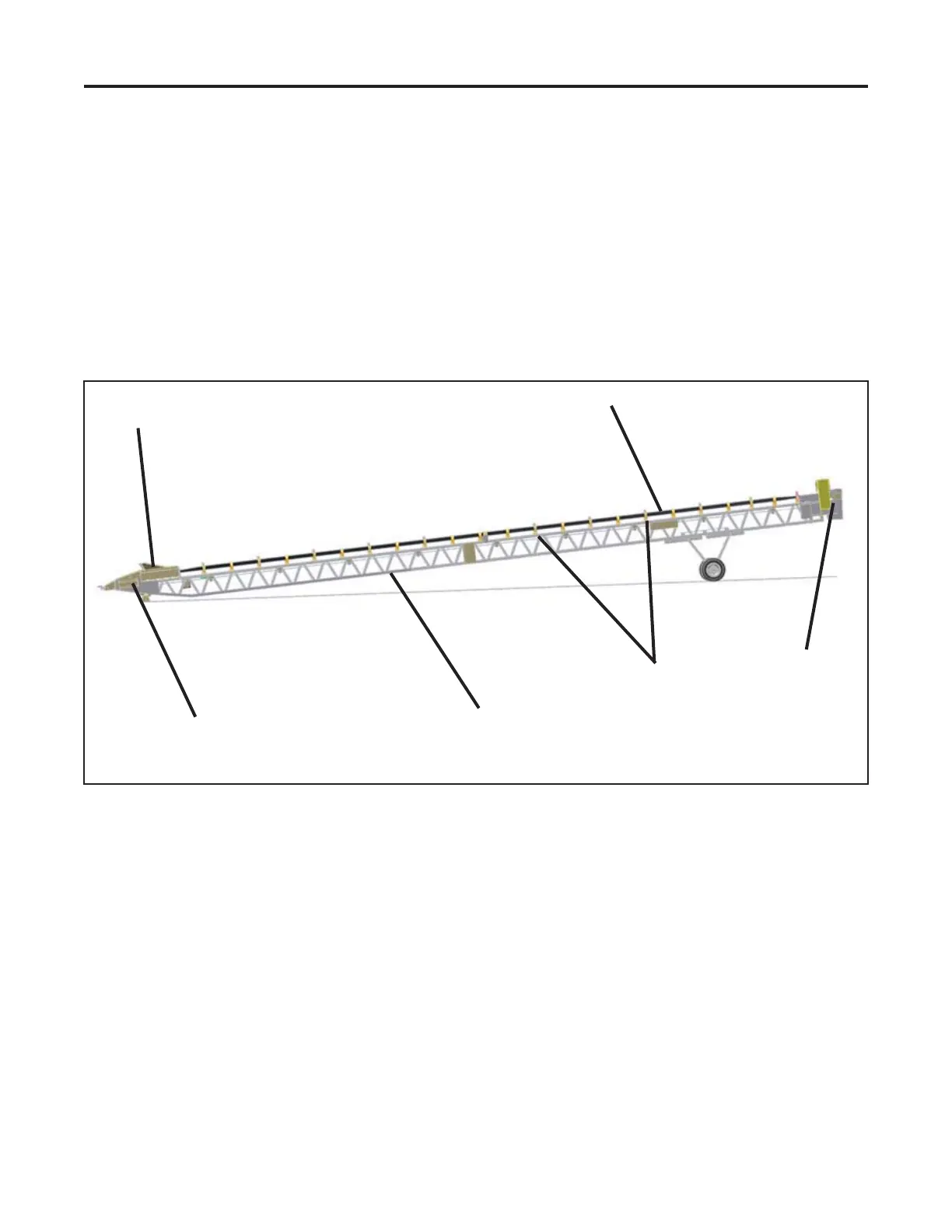

Idlers
Conveyor belt
Frame
Receiving
trough
Conveyor belt
take-up
Head end
Tail end
Drive
