ASTEC 40 Series User Manual

IB-2003
S
eries 40 Trans
fl
ite -
S
tationary
C
onveyor
38
Conveyor Belt
Bolt
Plate
Clip
3. Spray templet holes with
silicone lubricant (included
in kit). Punch or bore bolt
holes. Remove templet.
A 1/2” square drive electric
impact wrench will speed
hole boring operation.
4. Assemble the bottom plate
by inserting two bolts
through the plate and
attaching the clip.

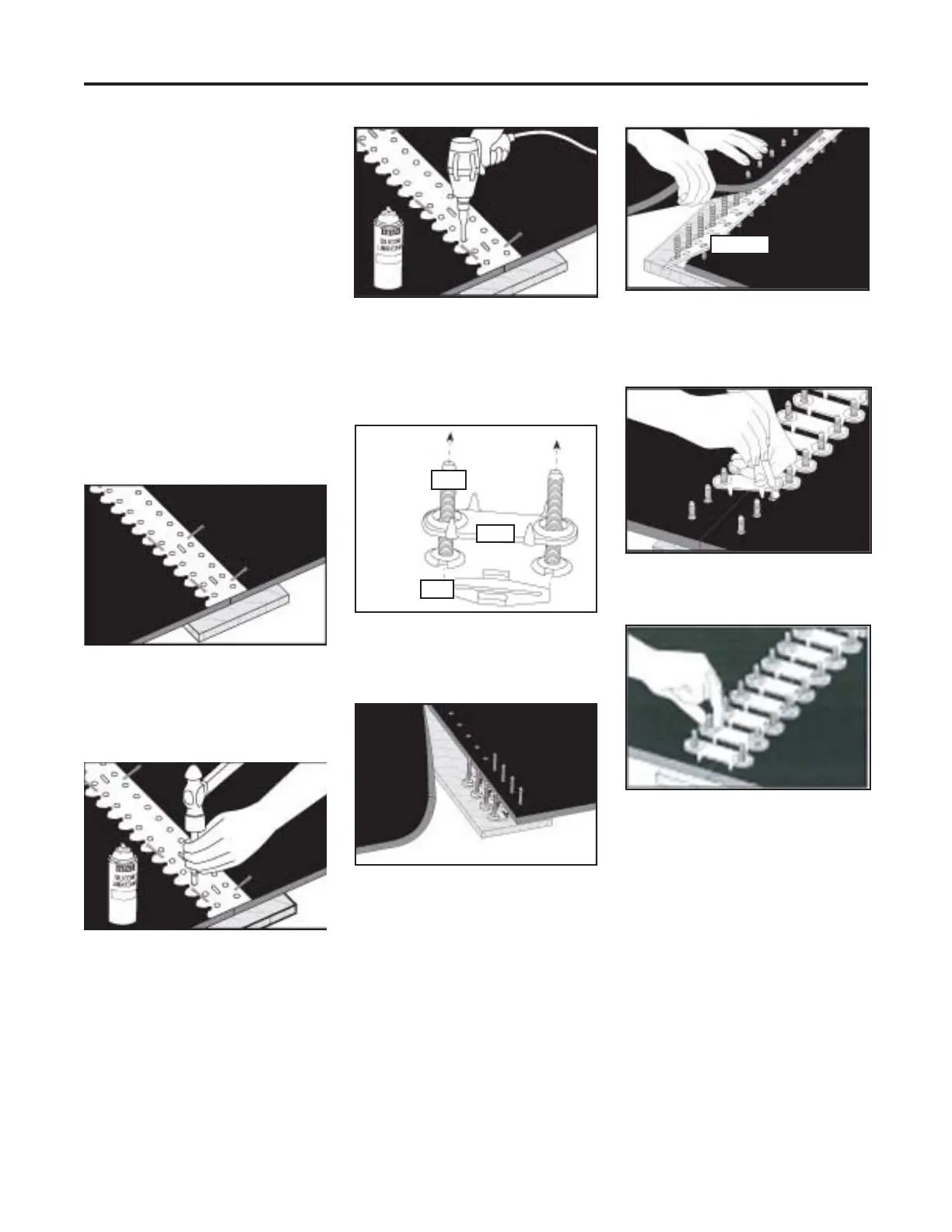

Belt Fastener Installation
Use the following procedure
to install belt fasteners on the
conveyor belt.
1. Make sure all power is
locked out/tagged out.
2. Support belt ends with
wood plank. Nail templet
(included with the
installation kit) in position
with belt ends tight against
lugs.
Templet
5. Fold one belt end back and
insert bolts in one row of
holes.
6. Align bolts with templet
teeth and place the other
belt end over bolts. Remove
templet.
7. Place top plates over bolts
using bolt horn.
8. Start nuts on bolts by hand.
9. Cut Flexco-Lok Tape 3.5
times the belt width and
feed tape under top plates,
under the bottom plates,
then back under top plates.
10. Pull tape tight and hold in
position by tightening a
fastener at each end. Then
tighten all other plates.
