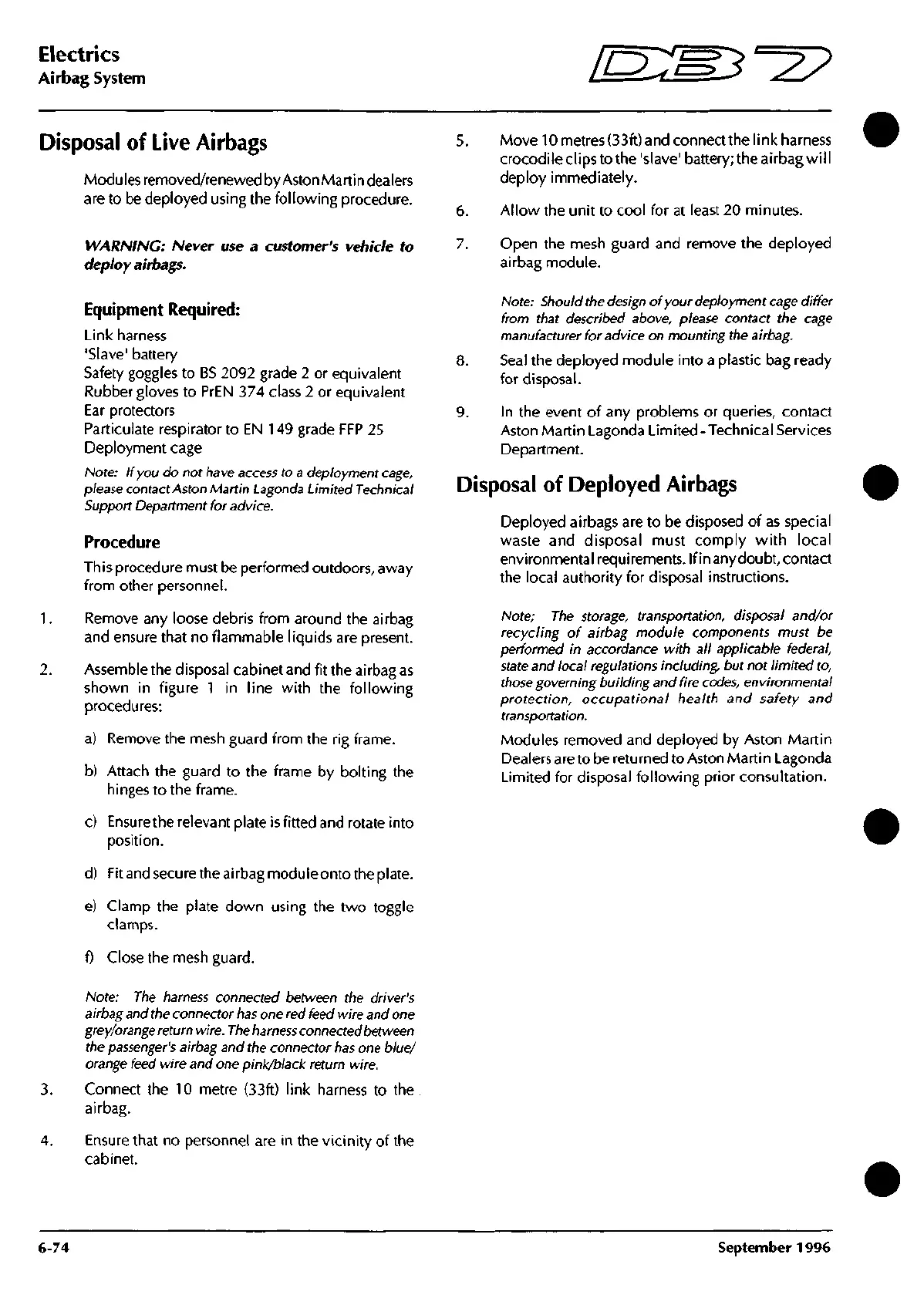

Electrics
Airbag System
E:m3^2?
Disposal of Live Airbags
Modu
les
removed/renewed by Aston Martin dealers
are to be deployed using the following procedure.
WARNING: Never use a customer's vehicle to
deploy airbags.
Equipment Required:
Link harness
'Slave'
battery
Safety goggles to BS 2092 grade 2 or equivalent
Rubber gloves to PrEN 374 class 2 or equivalent
Ear protectors
Particulate respirator to EN 149 grade FFP 25
Deployment cage
Note: If you do not
have access
to a deployment
cage,
please
contact Aston Martin
Lagonda
Limited
Technical
Support Department for advice.
Procedure
This procedure must be performed outdoors, away
from other personnel.
Remove any loose debris from around the airbag
and ensure that no flammable liquids are present.
Assemble the disposal cabinet and fit the airbag as
shown in figure 1 in line with the following
procedures:
a) Remove the mesh guard from the rig frame.
b) Attach the guard to the frame by bolting the
hinges to the frame.
c) Ensure the relevant plate is fitted and rotate into
position.
d) Fit and secure the airbag module onto the plate.
e) Clamp the plate down using the two toggle
clamps.
f) Close the mesh guard.
Note: The harness connected between the driver's
airbag and
the
connector
has
one red
feed
wire and one
grey/orange return wire. The harness connected between
the
passenger's
airbag and the connector
has
one blue/
orange feed wire and one pink/black return wire.
Connect the 10 metre {33ft) link harness to the
airbag.
Ensure that no personnel are in the vicinity of the
cabinet.
5. Move 10 metres (33ft) and connect the link harness
crocodile clips to the 'slave' battery; the airbag will
deploy immediately.
6. Allow the unit to cool for at least 20 minutes.
7. Open the mesh guard and remove the deployed
airbag module.
Note: Should the
design
of your deployment
cage
differ
from that described above, please contact the cage
manufacturer for advice on mounting the airbag.
8. Seal the deployed module into a plastic bag ready
for disposal.
9. In the event of any problems or queries, contact
Aston Martin Lagonda Limited -Technical Services
Department.
Disposal of Deployed Airbags
Deployed airbags are to be disposed of as special
waste and disposal must comply with local
environmental requirements. If
in
any doubt, contact
the local authority for disposal instructions.
Note; The storage, transportation, disposal and/or
recycling of airbag module components must be
performed in accordance with all applicable federal,
state
and local regulations including, but not limited to,
those
governing building and fire
codes,
environmental
protection, occupational health and safety and
transportation.
Modules removed and deployed by Aston Martin
Dealers are to be returned to Aston Martin Lagonda
Limited for disposal following prior consultation.
6-74
September 1996
