Astralpool MICRO - Control Systems; Control Through Power Supply

4

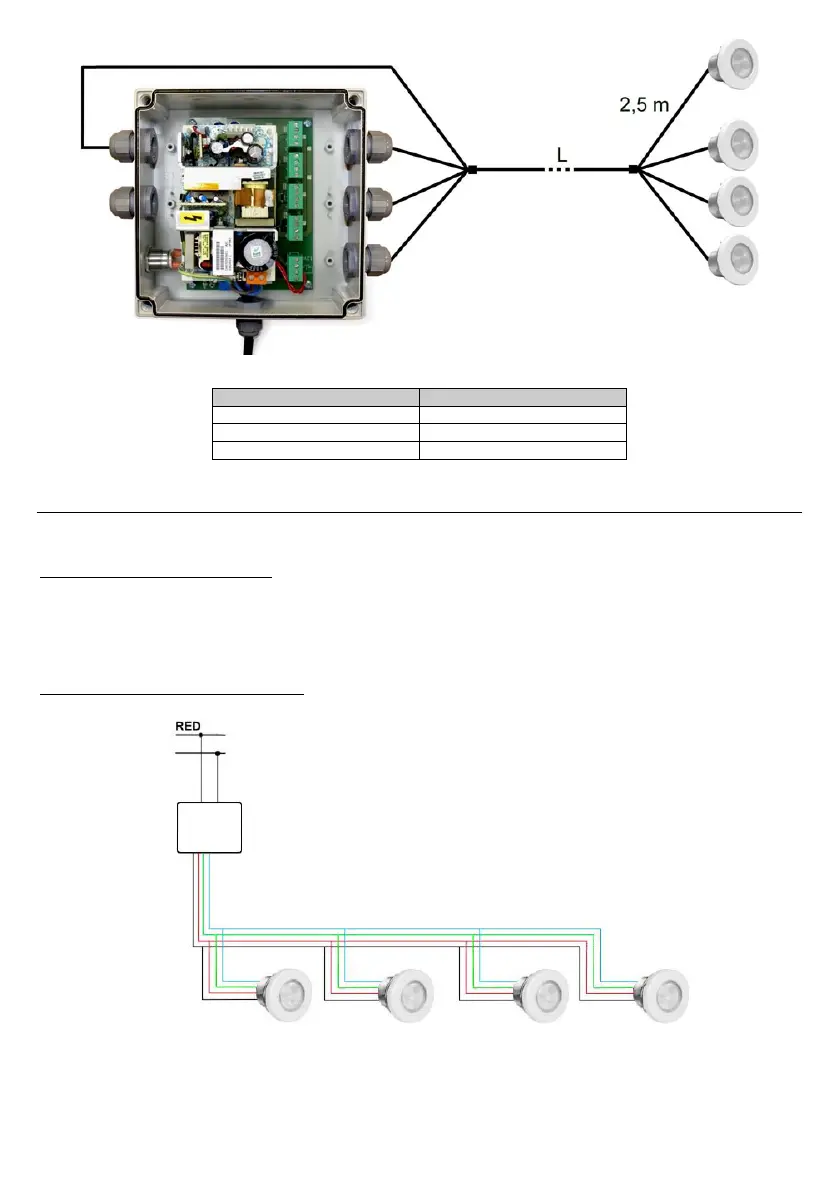

For this connection method, cables with appropriate sections should be used according to their length.
Length (m) Cable section
0-20 2.5 mm
2
Cu
20-30 4 mm
2
Cu
30-50 6 mm
2
Cu
6. CONTROL SYSTEMS OF THE LED PROJECTORS:
Installations with MICRO spotlights only, can be controlled from the power supply itself. In installations where there are
also Colorplus spotlights, the power supply can synchronize these spotlights with the MICRO spotlights.
The power supply is provided with a pushbutton, which is the simplest way of controlling the spotlights. Each press
changes the colour or sequence.
6.1. Control through the power supply
The pushbutton is normally closed (NC). It is connected in the terminals indicated “pushbutton input” shown in Figure 1.
With this control system you have 14 function modes: 7 fixed colours and 7 sequences with different colours.
6.1.1. Diagram of the electrical connection
In installations with more than four MICRO spotlights, which must be controlled jointly, a single pushbutton should be
installed connected in parallel to the connection terminals.
Power supply
Mini LED
projectors
