astreea IGLOO L PLUS - Page 15

M6x12 screw
second upper
panel
polycarbonate
panel
Components
1 x upper panel
2 x M6x12
screw
Allen key no.4
1. The frame

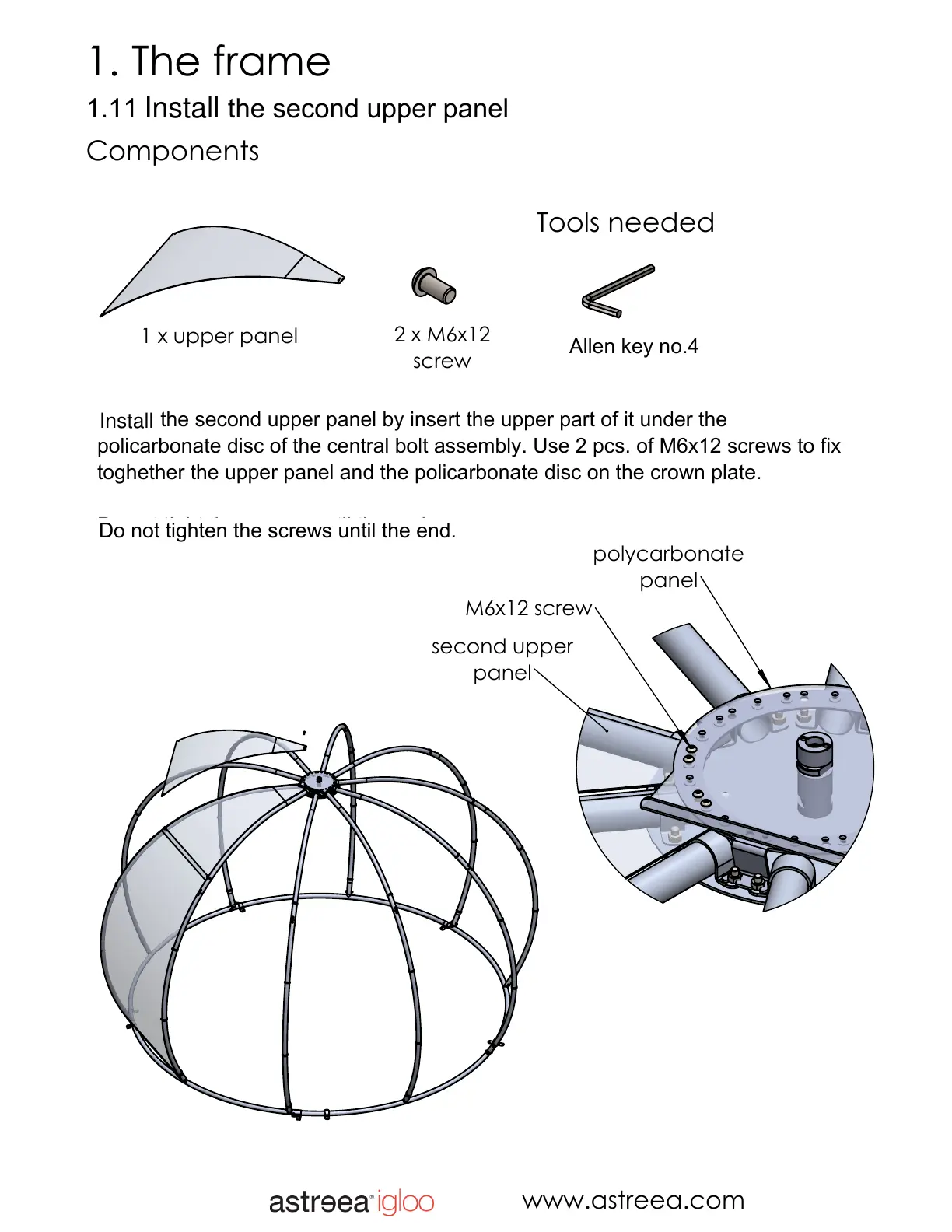

1.11 Mount the second upper panel
Mount the second upper panel by insert the upper part of it under the
policarbonate disc of the central bolt assembly. Use 2 pcs. of M6x12 screws to fix
toghether the upper panel and the policarbonate disc on the crown plate.
Do not tight the screws until the end.
Tools needed
www.astreea.com
Install
Install
Do not tighten the screws until the end.
