astreea IGLOO L PLUS - Page 17

M
door poles
Allen key no.4
DETAIL M
M6x20
screw
upper strip
crown plate
8 x upper strips
8 x M6x20
screws

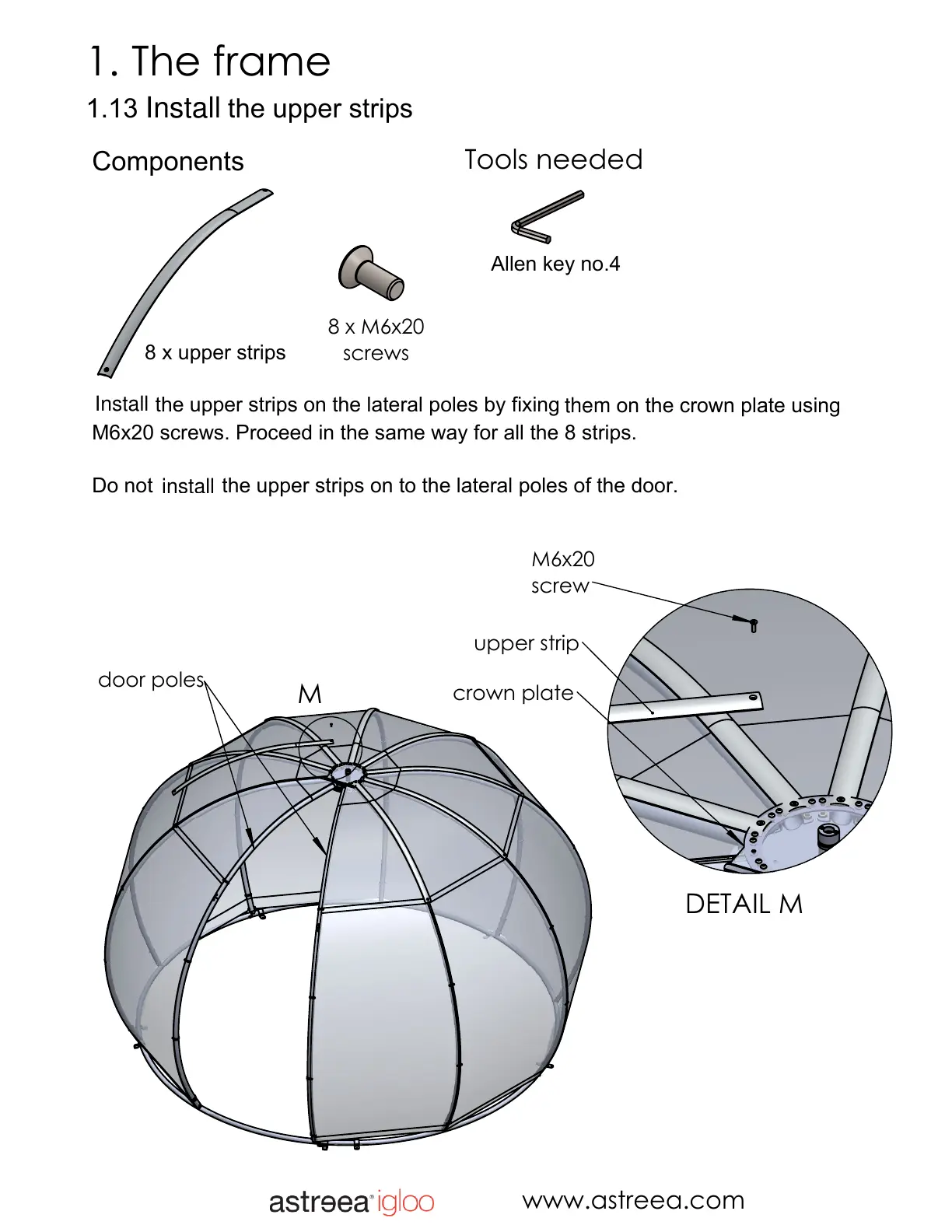

1. The frame
1.13 Mount the upper strips
Components
Mount the upper strips on the lateral poles by fixing its on the crown plate using
M6x20 screws. Proceed in the same way for all the 8 strips.
Do not mount the upper strips on to the lateral poles of the door.
Tools needed
www.astreea.com
Install
Install
them on the crown plate using
install
