astreea IGLOO L PLUS - Page 27

Allen key no.4
upper panels
M6x12 screws
2 x upper panel
2 x M6x12
screw
Top view of the door with the
upper panels mounted on

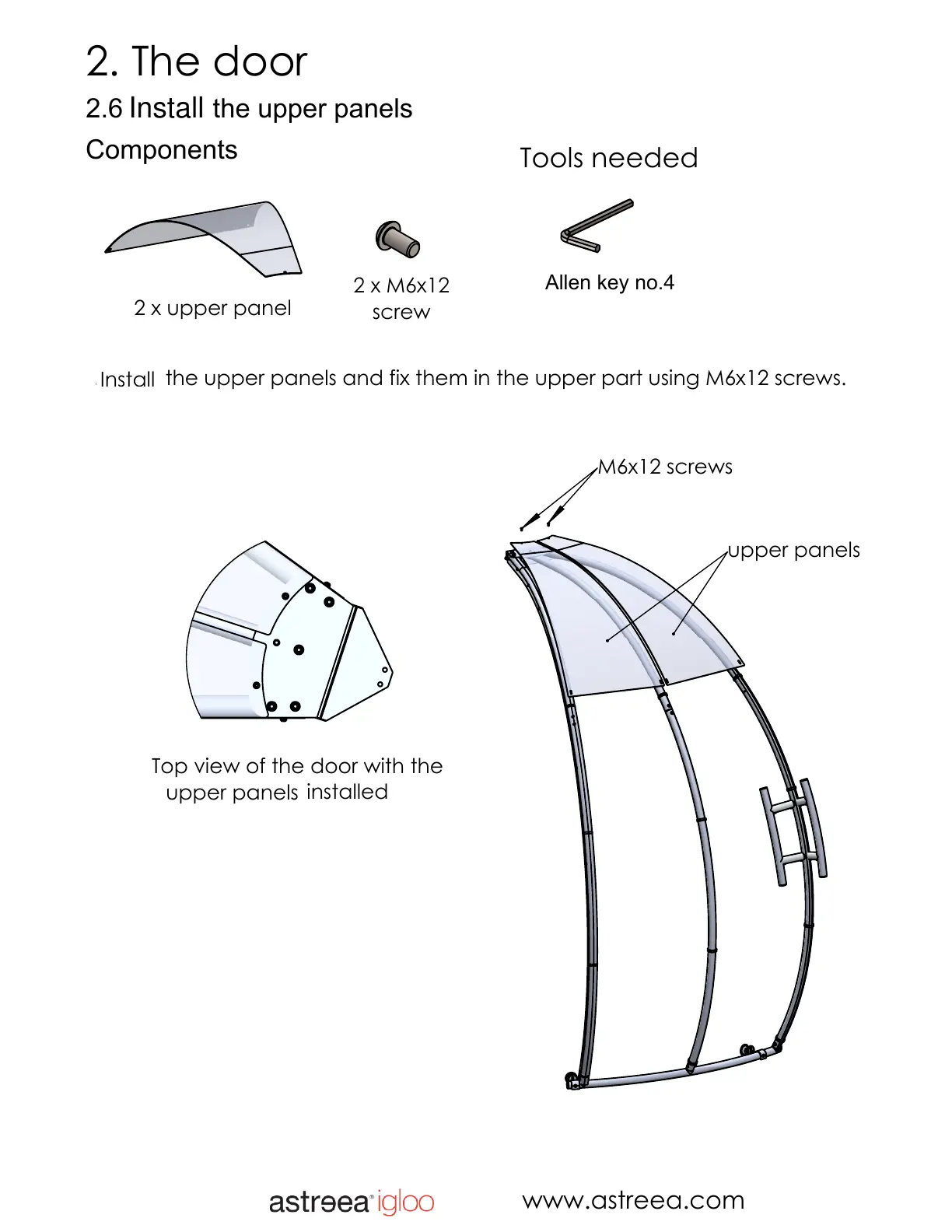

2. The door
2.6 Mount the upper panels
Components
Tools needed
Mount the upper panels and fix them in the upper part using M6x12 screws.
www.astreea.com
Install
Install
installed
