astreea IGLOO L PLUS - Page 33

Allen key no.5
O
M8x25
screw
DETAIL O
lower pole
umbrella cover
1 x Umbrella cover

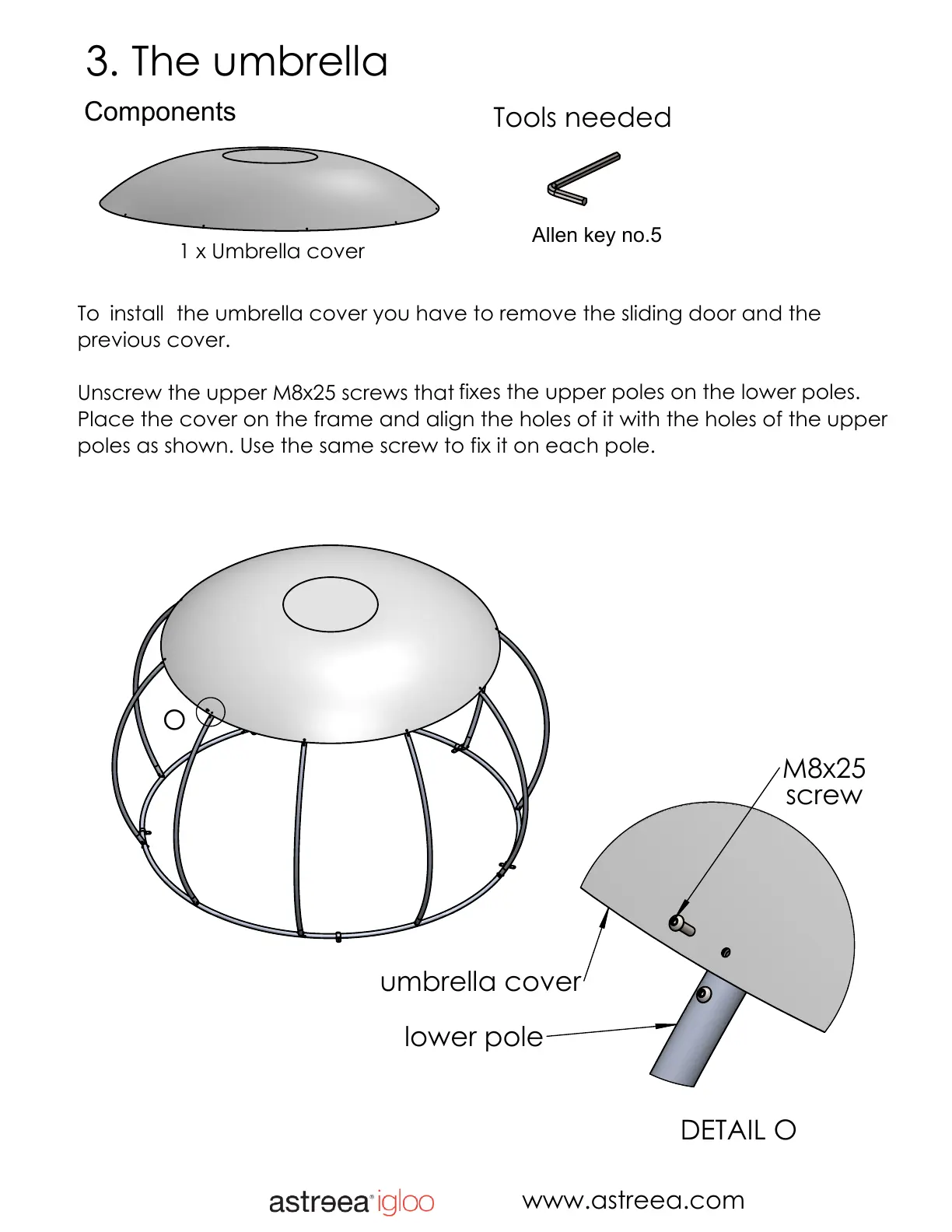

To mount the umbrella cover you have to remove the sliding door and the
previous cover.
Unscrew the upper M8x25 screws that fix the upper poles on the lower poles.
Place the cover on the frame and align the holes of it with the holes of the upper
poles as shown. Use the same screw to fix it on each pole.
3. The umbrella
Components
Tools needed
www.astreea.com
install
fixes the upper poles on the lower poles.
