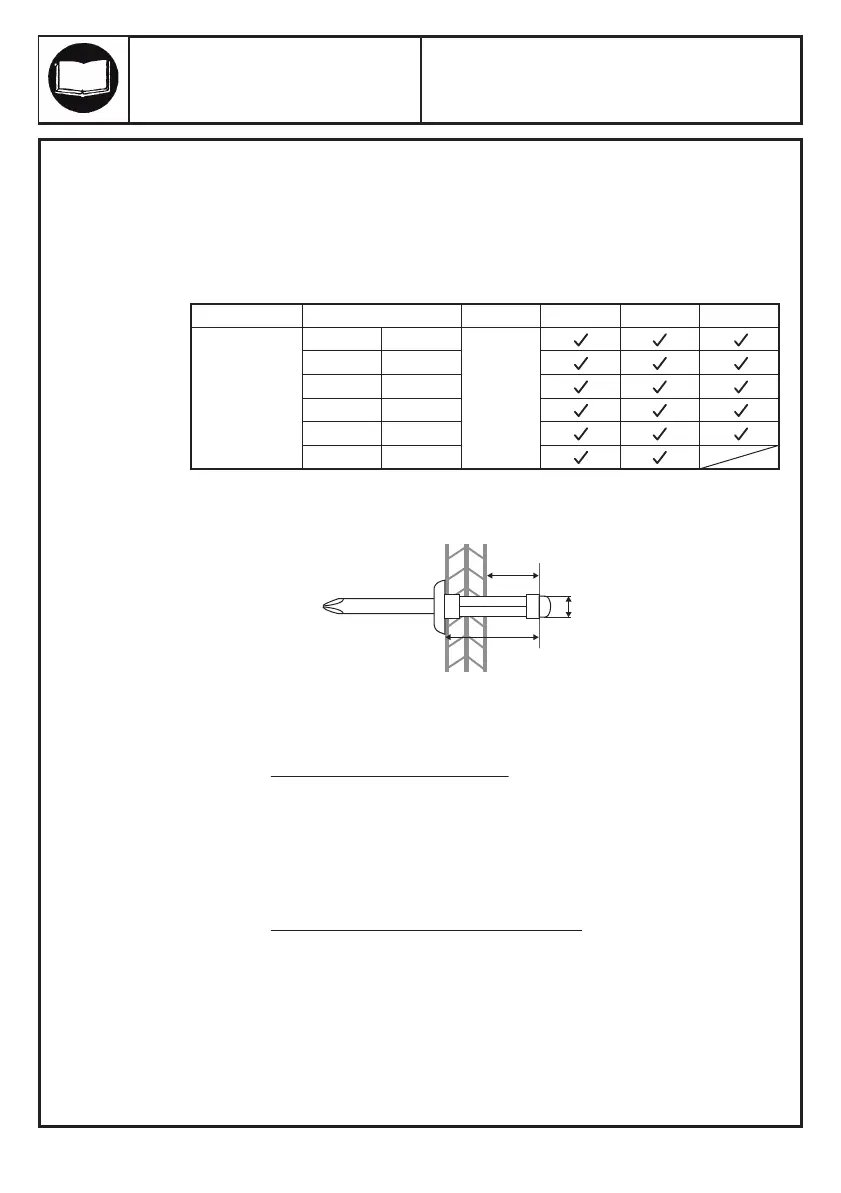

XL BLIND RIVET ADAPTER KIT
- 1/4" CAPACITY
I. Product Technical Data:
Set Includes:
Hex shank:
Rivet Type:
Weight:
Riveting Capability:
Working Torque:
Recommended RPM:
Temperature Range:
Requirements of Driving Tools:
1X Main body, Assorted metric or imperial nosepieces, 1X Hex wrench,
1X User’s manual, 1X Blow mold case
6.35mm (1/4")
Blind "Pop" Rivet
2.0 lbs
Refer to section III. Operation Guide (Page 3)
Low speed, driver setting (<600 RPM)
-20~120°C (-4~248°F)
Requirements of cordless driving tool:
• Adjustable torque setting.
• Chuck capacity of hex 6.35 mm (1/4") shank.
• Min. 12V for aluminum and steel rivets up to 3/16".
• Min. 14.4V for stainless steel rivets up to 3/16" and thru 1/4" in aluminum.
• Min. 16V+ for 7/32" in steel and stainless and 1/4" in steel. (1/4" stainless mandrel
and body is not recommended and may overheat the tool)
Requirements of electric or pneumatic driving tool:
• Chuck capacity of hex 6.35 mm (1/4") shank.
• With maximum torque > 190 in/lbs for aluminum and steel rivets up to 3/16" and
7/32" + 1/4" in aluminum.
• With maximum torque > 330 in/lbs for stainless steel rivets up to 3/16" and
7/32" + 1/4" in steel.
Maximum 0.7 inch ( Y should be less than 1/2" in most cases, beyond 0.6" may cause rivet
mandrel to bottom out inside tool and jam)
Stroke Limit:
Y
Φ
L
Rivet Size Φ
Limit
Aluminum
Steel/Copper
Stainless Steel
Capacity / Limits
2.4mm
3.2mm
4.0mm
4.8mm
6.0mm
6.4mm
3/32"
1/8"
5/32"
3/16"
7/32"
1/4"
Y<1/2"
