page 13
Installation
Operating manual HVB 21, HVB 31 a. HVB 32 - Version 01-2021A
Installation
You can install the amplifier either using wall plugs in a masonry
wal
l or on a perforated or wooden panel using wood screws or sheet
metal screws.
The following describes how to fix the amplifier to a masonry wall:
PREPARATION:
Drill two holes in a vertical masonry wall and insert the supplied wall
plugs into the holes.
The required distance between the two boreholes is 100 mm.
The following describes how to install the device:
TASK
1. Place the back of the device against the installation surface so
that its drill holes are exactly above the two wall plugs. The
device inputs and outputs must point downwards.

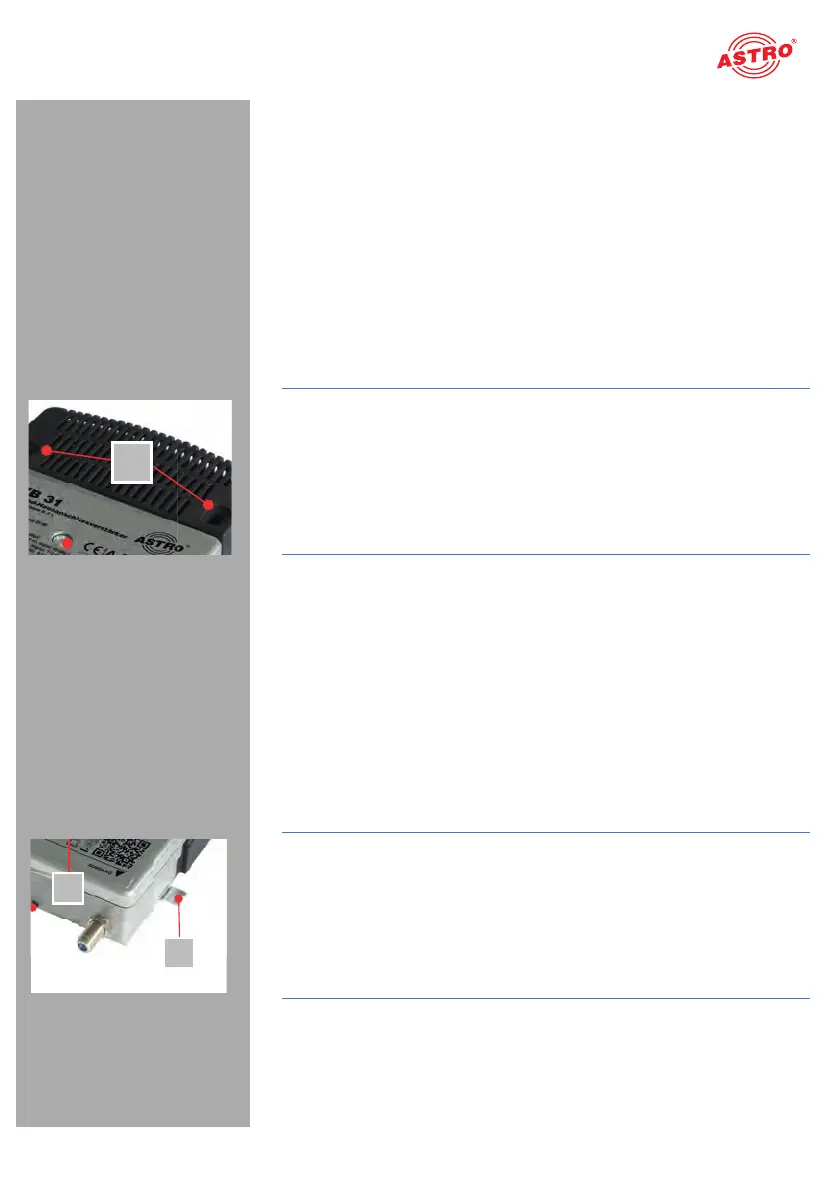

2. Screw the device into place using the supplied screws (drill
holes [4] in the device, see left).
RESULT:
The
module is now installed and can be connected.
The following describes how to install the amplifier on a perforated
or wooden panel:
PREPARATION:
Drill two holes in a wooden panel or use the existing boreholes in a
perforated plate.
The required distance is 130 mm.
The following describes how to install the device:
TASK
1. Place the device on the installation surface so that the lugs on
the outside of the housing are exactly over the boreholes in the
panel. The device inputs and outputs must point downwards.
2. Screw the device in place using wood screws or sheet metal
screws (drill holes [5] in the device, see left).
RESULT:
The
module is now installed and can be connected.
4
2
5
