10. Control Signal Waveform and Timing
This driver can accept pulse control signals up to 300khz.

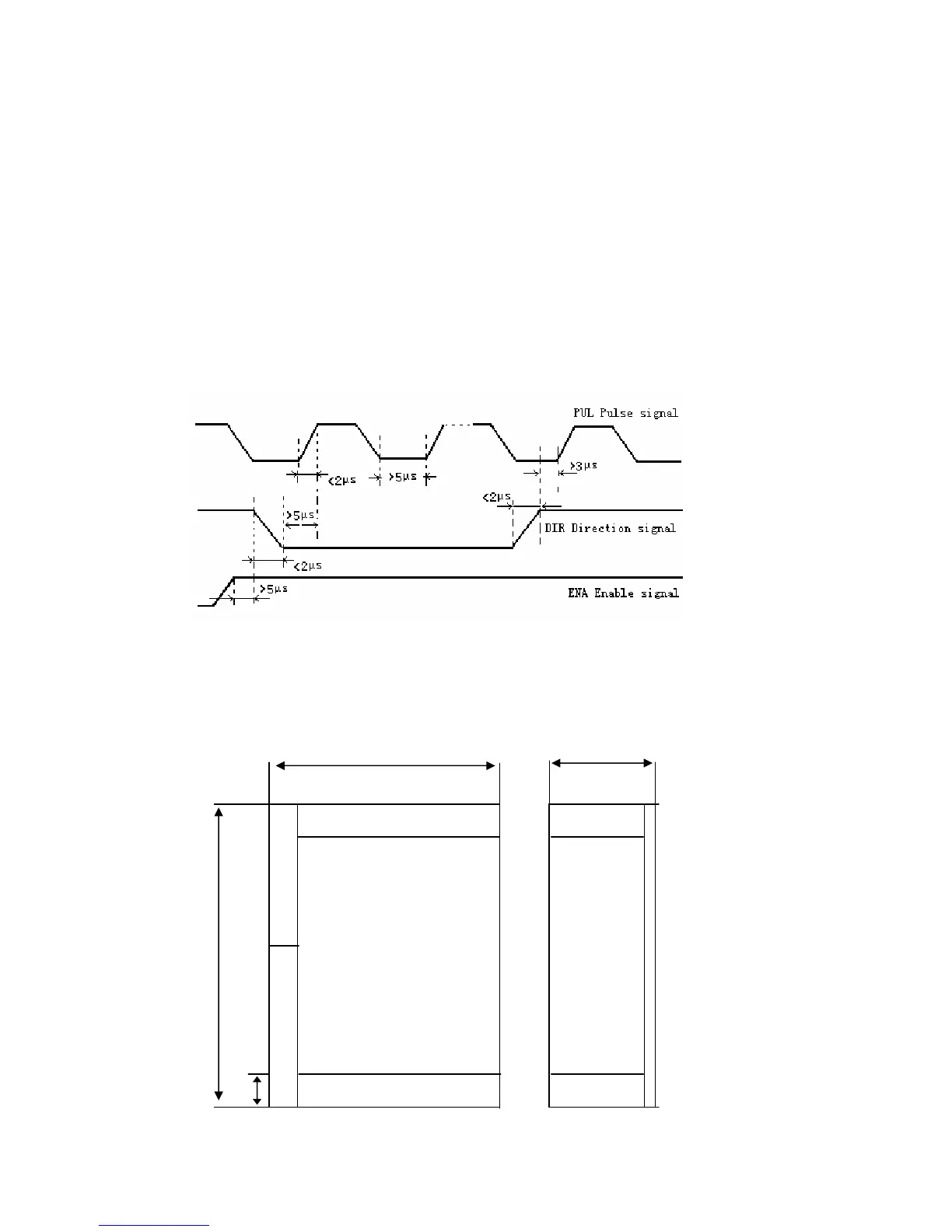

Before a direction reversal, the direction signal needs to be established at least 2µs before the first
pulse of the next pulse train. Please examine the timing diagrams of the three control signals as
follows.
11. Dimensions
External dimensions are shown in mm.
50
120
102
Astrosyn International Technology Ltd, The Old Courthouse, New Rd Ave, Chatham, Kent ME4 6BE, England
Tel: +44(0)1634 815175 Fax: +44(0)1634 826552
