Chapter 1: Product introduction

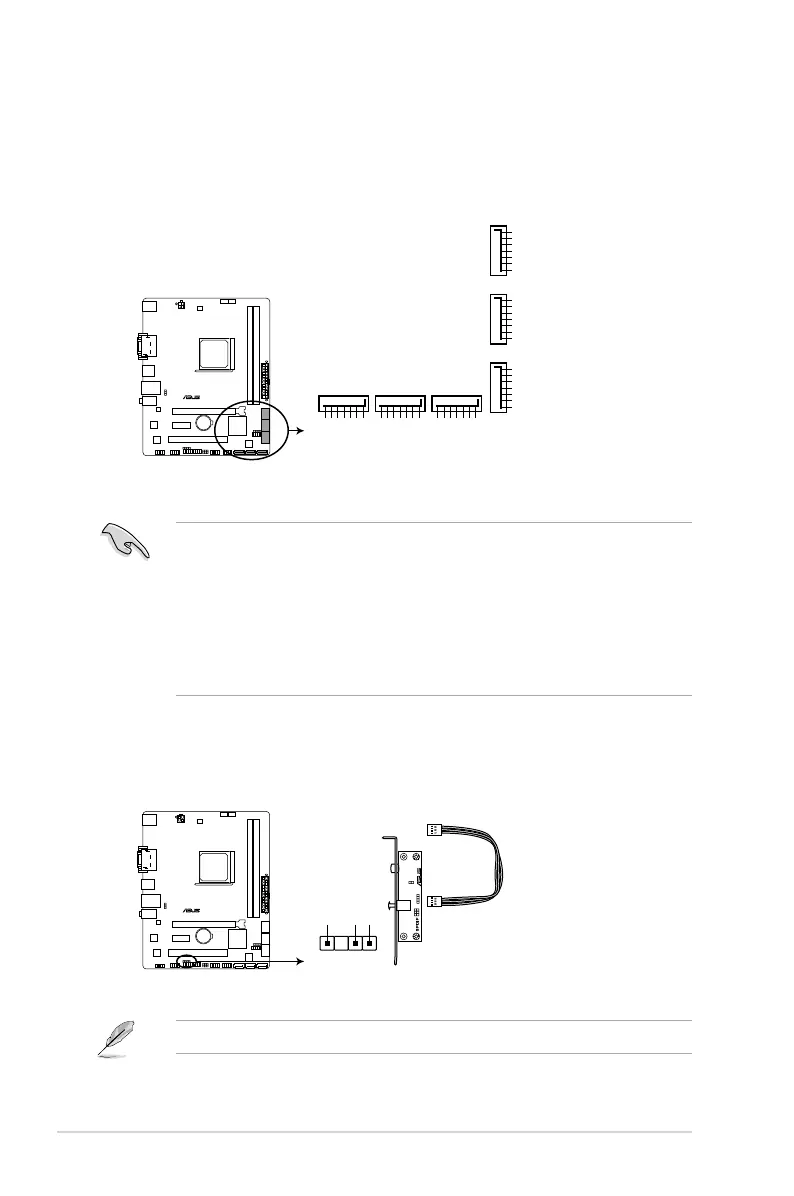

4. Serial ATA 3.0 Gb/s connectors (7-pin SATA3G 1~6)
These connectors are for the Serial ATA 3.0 Gb/s signal cables for Serial ATA hard
disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you can
create a RAID 0, RAID 1, or RAID 10 conguration through the onboard controller.
• These connectors are set to AHCI mode by default. If you intend to create a Serial ATA
RAID set using these connectors, set the type of the SATA connectors in the BIOS to
[RAID].
• You must install Windows
®
XP Service Pack 3 or later version before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP3 or later version.
• When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to
[AHCI].
SATA3G_2
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA3G_1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA3G_3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA3G_4
GND
RSATA_RXP4
RSATA_RXN4
GND
RSATA_TXN4
RSATA_TXP4
GND
SATA3G_5
GND
RSATA_RXP5
RSATA_RXN5
GND
RSATA_TXN5
RSATA_TXP5
GND
SATA3G_6
GND
RSATA_RXP6
RSATA_RXN6
GND
RSATA_TXN6
RSATA_TXP6
GND
A58M-E
A58M-E SATA 3.0Gb/s connectors
5. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
SPDIF_OUT
+5V
SPDIFOUT
GND
A58M-E
A58M-E Digital audio connector
The S/PDIF module is purchased separately.
