3. HARDWARE SETUP

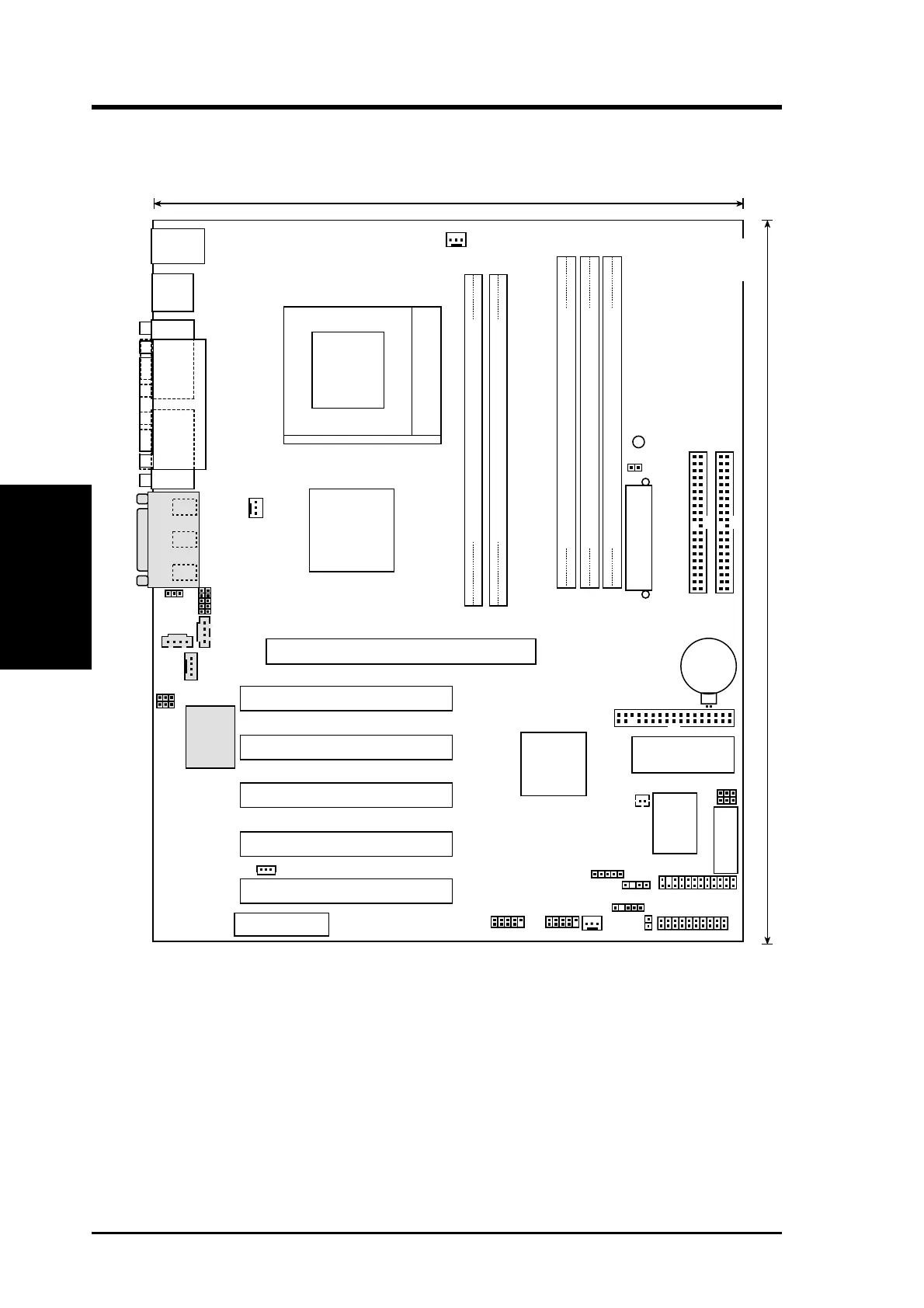

3.1 Motherboard Layout
Motherboard Layout
3. H/W SETUP
Grayed components are available only on certain models at the time of purchase.
24.5cm (9.64in)
30.5cm (12.0in)
Primary IDE
Secondary IDE
PANEL
PCI 2
SMB
FLOPPY
A7A266
ALi
M1535D+
Chipset
ASUS
ASIC
with Hardware
Monitor
PCI 1
Accelerated Graphics Port (AGP Pro)
ALi
M1647
Chipset
Flash EEPROM
(Programable BIOS)
CR2032 3V
Lithium Cell
CMOS Power
PCI 4
PCI 3
PCI 5
GAME_AUDIO
Mic
In
Line
Out
Line
In
AUX
MODEM
CD1
LED
JEN
COM1
PARALLEL PORT
COM2
DIP Switches
VID
AFPANEL
Socket 462
DIMM Socket 1 (64/72-bit, 168-pin module)
0
1
DIMM Socket 2 (64/72-bit, 168-pin module)
2
3
01
DDR DIMM1 (64/72 bit, 184-pin module)
0 1
01
DDR DIMM2 (64/72 bit, 184-pin module)
2 3
C-Media
CMI-8738
USB1
CHASIS
IDELED
USB2
AUDIO_PANEL
MIC2
Audio Modem Riser
(AMR)
PS/2
T: Mouse
B: Keyboard
USB1
USB2
ATX Power Connector
DIMM Socket 3 (64/72-bit, 168-pin module)
4
5
CPU_FAN
PWR_FAN
CHA_FAN
WOR
WOL_CON
CLRTC
JTPWR
DSW
BCS1
BCS2
IR
