12. LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT is
standardized as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
A88XM-PLUS

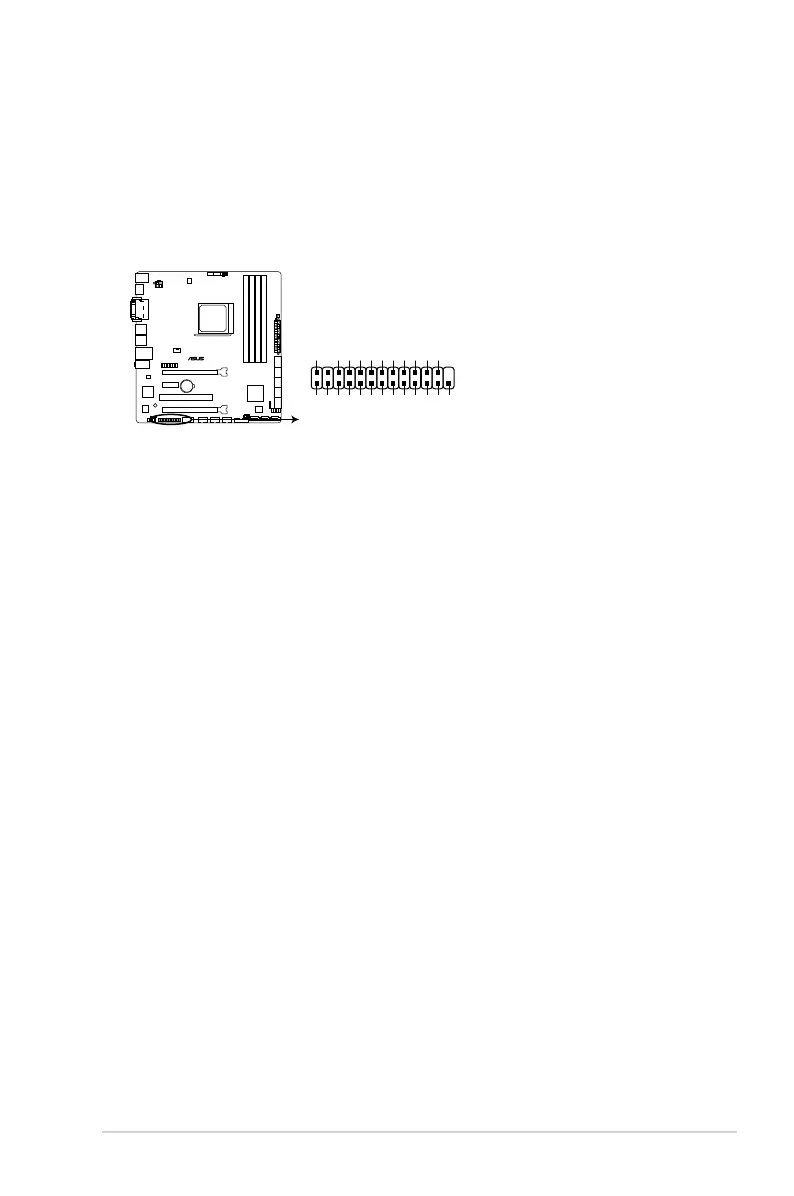

A88XM-PLUS Parallel Port Connector
PIN 1
LPT
STB#
PD0 PD1 PD2 PD3 PD4 PD5 PD6 PD7
ACK#
BUSY
PE
SLCT
AFD ERR# INIT# SLIN# GND GND GND GND GND GND GND GND
