Keyboard power (3-pin KBPWR)Keyboard power (3-pin KBPWR)
Keyboard power (3-pin KBPWR)Keyboard power (3-pin KBPWR)
Keyboard power (3-pin KBPWR)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) to wake up the
computer when you press a key on the keyboard (the default is the
Space Bar). This feature requires an ATX power supply that can supply
at least 500 mA on the +5VSB lead, and a corresponding setting in
the BIOS.
A8N-VM
®

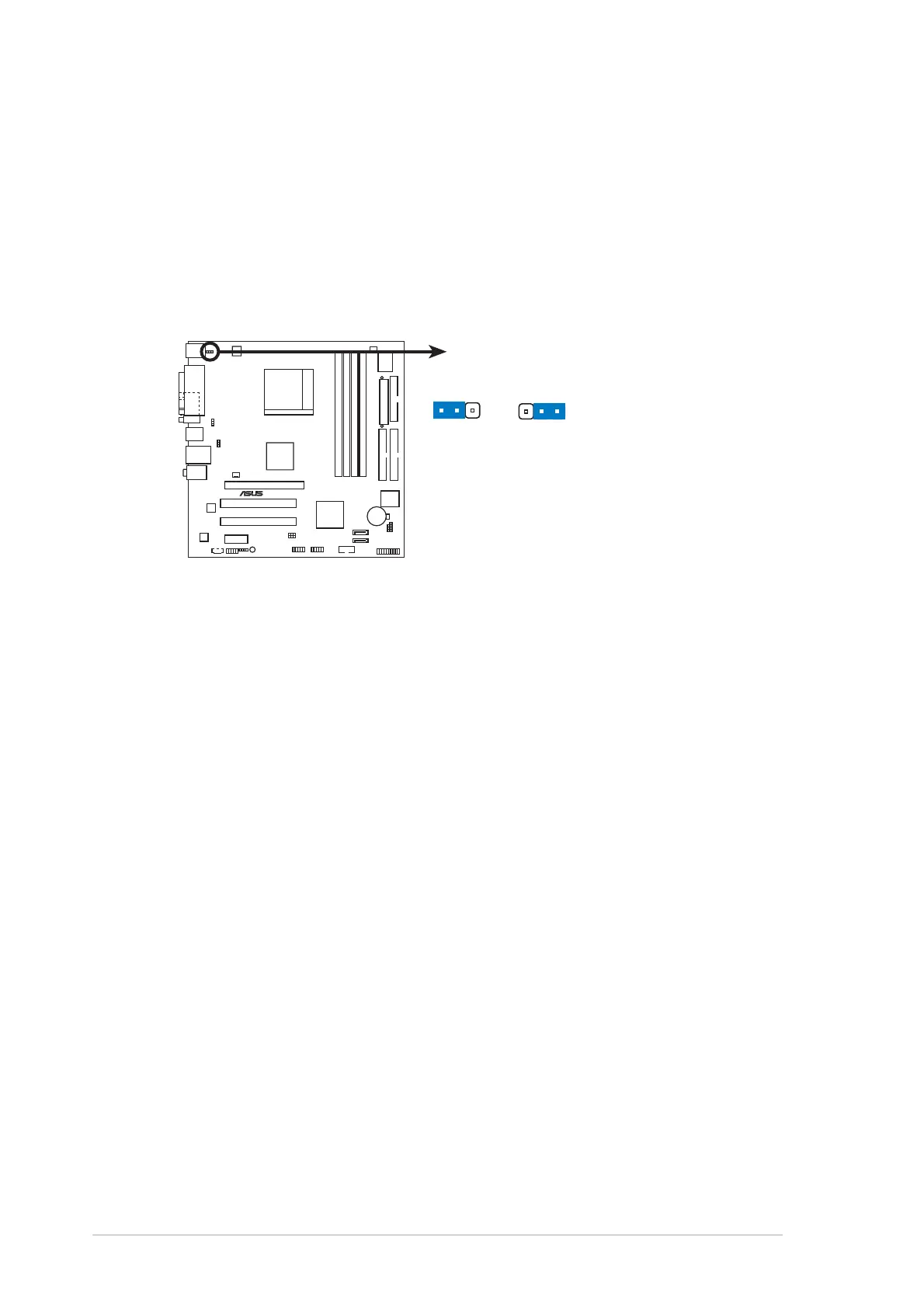

A8N-VM Keyboard power setting
(Default)
+5V +5VSB
KBPWR
2312
