Asus C60M1-I User Manual

ASUS C60M1-I1-2
C60M1-I
PCIEX16
Super
I/O
F_PANEL
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
USB1112
USB910
USB78
Lithium Cell
CMOS Power
EPU
VIA
VT1708S
RTL
8111F
32Mb
BIOS
SB_PWR
CLRTC
17cm(6.7in)
17cm(6.7in)
AMD
®
FCH
A50M
(Hudson M1)
SATA6G_2
SATA6G_1
SATA6G_4
SATA6G_3
SATA6G_6
SATA6G_5
AMD
®
Fusion
APU C-60
with Radeon
TM
HD 6290 graphics
CHASSIS
ICS
9LRPS482
DDR3 DIMM1 (64bit, 240-pin module) DDR3 DIMM2 (64bit, 240-pin module)
AUDIO
KB_USB56
LAN1_USB12
USB34
VGA
DVI
1 2 3
2
5
7891011
4
6
1.2.2 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors (3-pin
CPU_FAN, 3-pin CHA_FAN)
1-11 7. Serial ATA 6.0Gb/s connectors (7-pin
SATA6G_1~6)
1-12
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-10 8. Chassis intrusion connector (4-1 pin
CHASSIS)
1-13
3. AMD
®
Dual-core processor C-60 with AMD
®
Radeon™ HD 6290 graphics
1-3 9. Clear RTC RAM (3-pin CLRTC) 1-8
4. DDR3 DIMM slots 1-3 10. Standby power LED (SB_PWR) 1-1
5. System panel connector (10-1 pin F_PANEL) 1-13 11. Front panel audio connector (10-1 pin AAFP) 1-11
6. USB 2.0 connectors (10-1 pin USB78, USB910,
USB1112)
1-12

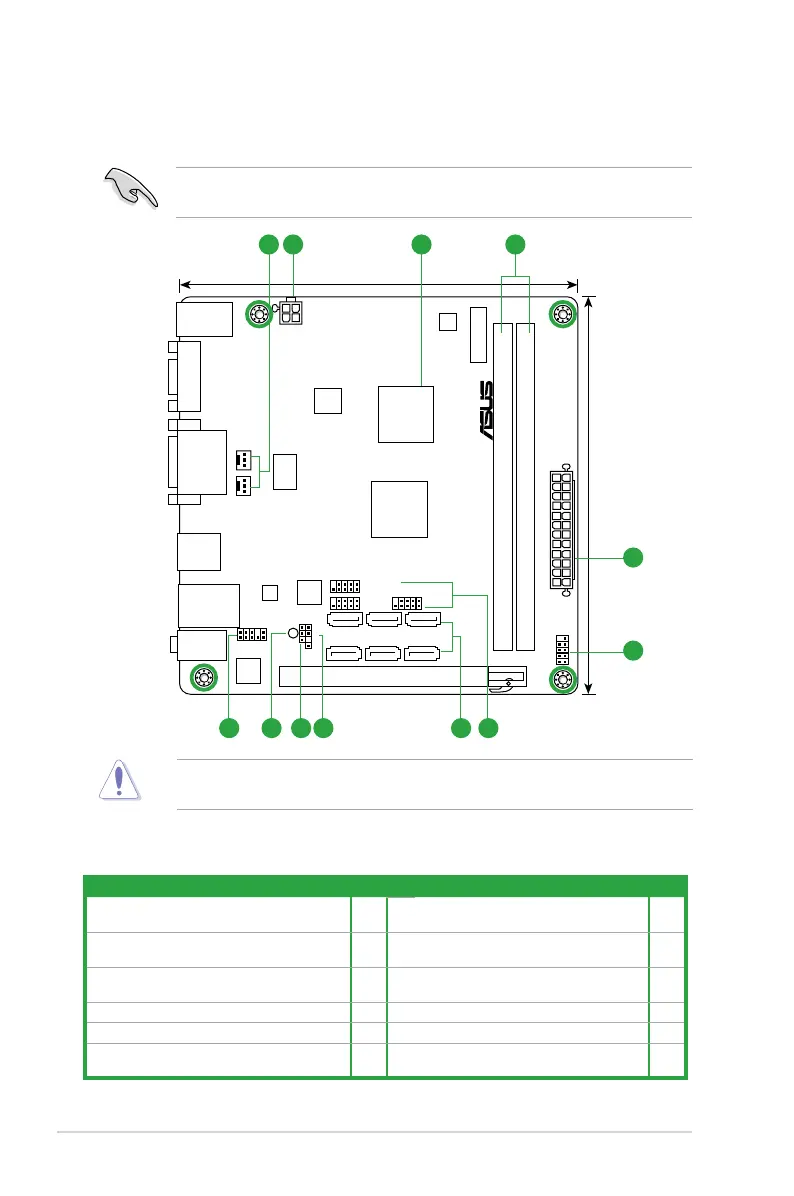

Place four screws into the holes indicated by circles to secure the motherboard to the
chassis. DO NOT overtighten the screws! Doing so can damage the motherboard.
Ensure that you install the motherboard into the chassis in the correct orientation. The edge
with external ports goes to the rear part of the chassis.
1.2 Motherboard overview
1.2.1 Motherboard layout

Asus C60M1-I Specifications

General

Non-ECC	Yes
Memory channels	Single-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	800, 1066 MHz
Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD C
USB 2.0 connectors	3
Number of SATA connectors	6
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A50M FCH
Audio output channels	- channels
Motherboard form factor	mini ITX
Graphics card	Radeon HD 6290
Maximum resolution	1920 x 1200 pixels
Graphics card family	ATI
Parallel processing technology support	Not supported
PCI Express slots version	2.0
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit

Weight and Dimensions

Width	170 mm
