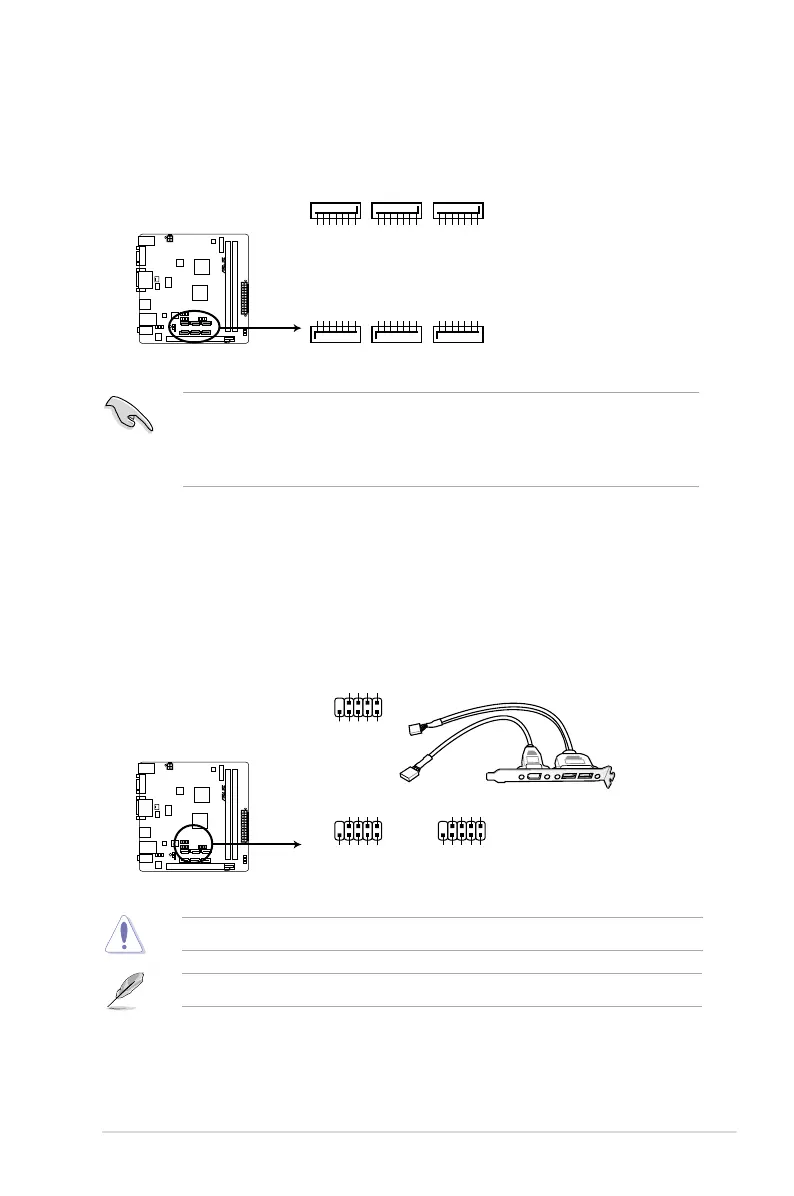

4. Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~6)
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• These connectors are set to [IDE] by default. In IDE mode, you can connect Serial ATA
boot/data hard disk drives to these connectors.
• When using hot-plug and NCQ, set the OnChip SATA Type item in the BIOS to [AHCI].
See section 2.5.2 SATA Conguration for details.
5. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!
The USB module cable is purchased separately.
C60M1-I
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA6G_4SATA6G_2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
GND RSATA_RXN3 RSATA_RXP3 GND RSATA_TXN3 RSATA_TXP3 GND GND RSATA_RXN1 RSATA_RXP1 GND RSATA_TXN1 RSATA_TXP1 GND
SATA6G_3SATA6G_1
GND
RSATA_TXP6
RSATA_TXN6
GND
RSATA_RXP6
RSATA_RXN6
GND
SATA6G_6
GND RSATA_RXN5 RSATA_RXP5 GND RSATA_TXN5 RSATA_TXP5 GND
SATA6G_5
C60M1-I SATA 6.0Gb/s connectors
C60M1-I
C60M1-I USB2.0 connectors
PIN 1
NC
GND
USB_P9+
USB_P9-
USB+5V
GND USB_P10+ USB_P10- USB+5V
USB910
PIN 1
NC
GND
USB_P7+
USB_P7-
USB+5V
GND USB_P8+ USB_P8- USB+5V
USB78
PIN 1
NC
GND
USB_P11+
USB_P11-
USB+5V
GND USB_P12+ USB_P12- USB+5V
USB1112

Asus C60M1-I Specifications

General

Non-ECC	Yes
Memory channels	Single-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	800, 1066 MHz
Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD C
USB 2.0 connectors	3
Number of SATA connectors	6
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A50M FCH
Audio output channels	- channels
Motherboard form factor	mini ITX
Graphics card	Radeon HD 6290
Maximum resolution	1920 x 1200 pixels
Graphics card family	ATI
Parallel processing technology support	Not supported
PCI Express slots version	2.0
LAN controller	Realtek RTL8111F
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	32 Mbit

Weight and Dimensions

Width	170 mm
