Asus GL552VW - Bottom Side Motherboard Test Points; Bottom Side Voltage Test Points; Bottom Side Control Signal Points; Bottom Side System Status Points

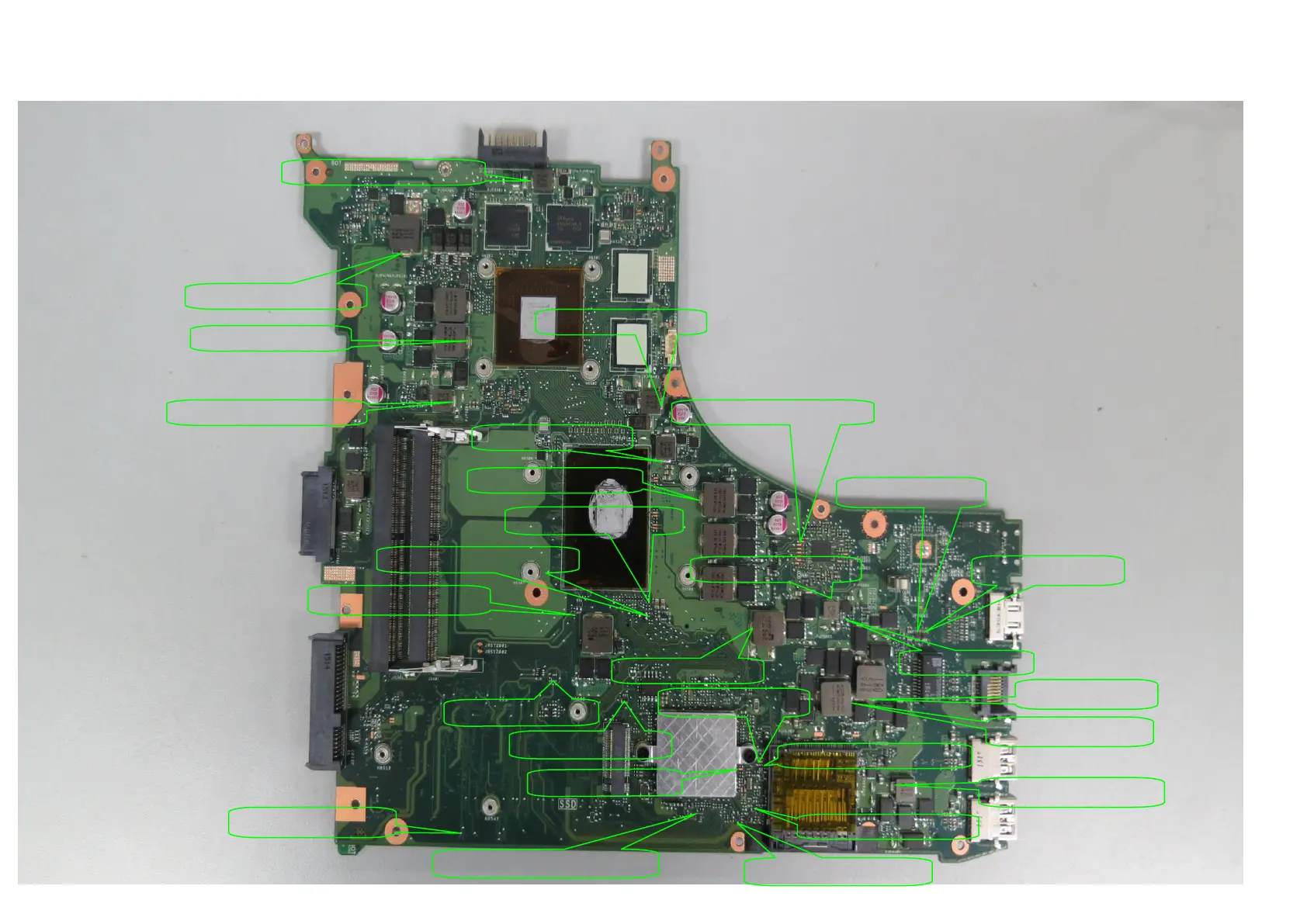

Signal Measure Point-Bottom
24.PD8603 12V_ON 729
38,PL8100 VCCCORE 5
31.VT2072 PM_PWROK 745
20.SL2002 PM_SUSC# 569
14 Q2805 PM_RSMRST# 738
46 PL8901 P_CHG_LX_30 501
36. PSL8701 +3VADSWO 382
35 PSL8301 P_1.0VSUS_VO 38
44 PL9100 +NVVDD 10
25 R0650 DDR_PG_CTRL 549
43 PL9300 +FBVDDQ 145
37 PSL8700 +5VSUS0 133
16 D2002 ME_AC_PRESENT 751
30.R5803 VCCST_PWRGD_CPU 458
15 SL2004 SUSWARN# 586
17 R2040 PM_SUSACK# 544
21.Q5707 PM_SUSB# 569
22.PQ8812 SUSC_EC # 741
23.PQ8814 SUSB_EC# 613
28.PSL8011 P_IMVP8_DRVON 562
29.D2004 IMVP8_PWRGD 559
34.R0621 H_CPUPWRGD 483
33.R0606 PCH_PLTRST_CPU# 483
39,PL8104 VCCGT 7
40 PL8105 +VCCSA 26
41 PL8401 P_VCCIO 85
42 PL8601 P_2.5VO 385
45 PL9200 P_PEXVDDO 152
