Asus GL552VW - Top Side Motherboard Test Points; Top Side Power and Control Points; Top Side Sequence Signal Points; Top Side System Status Points

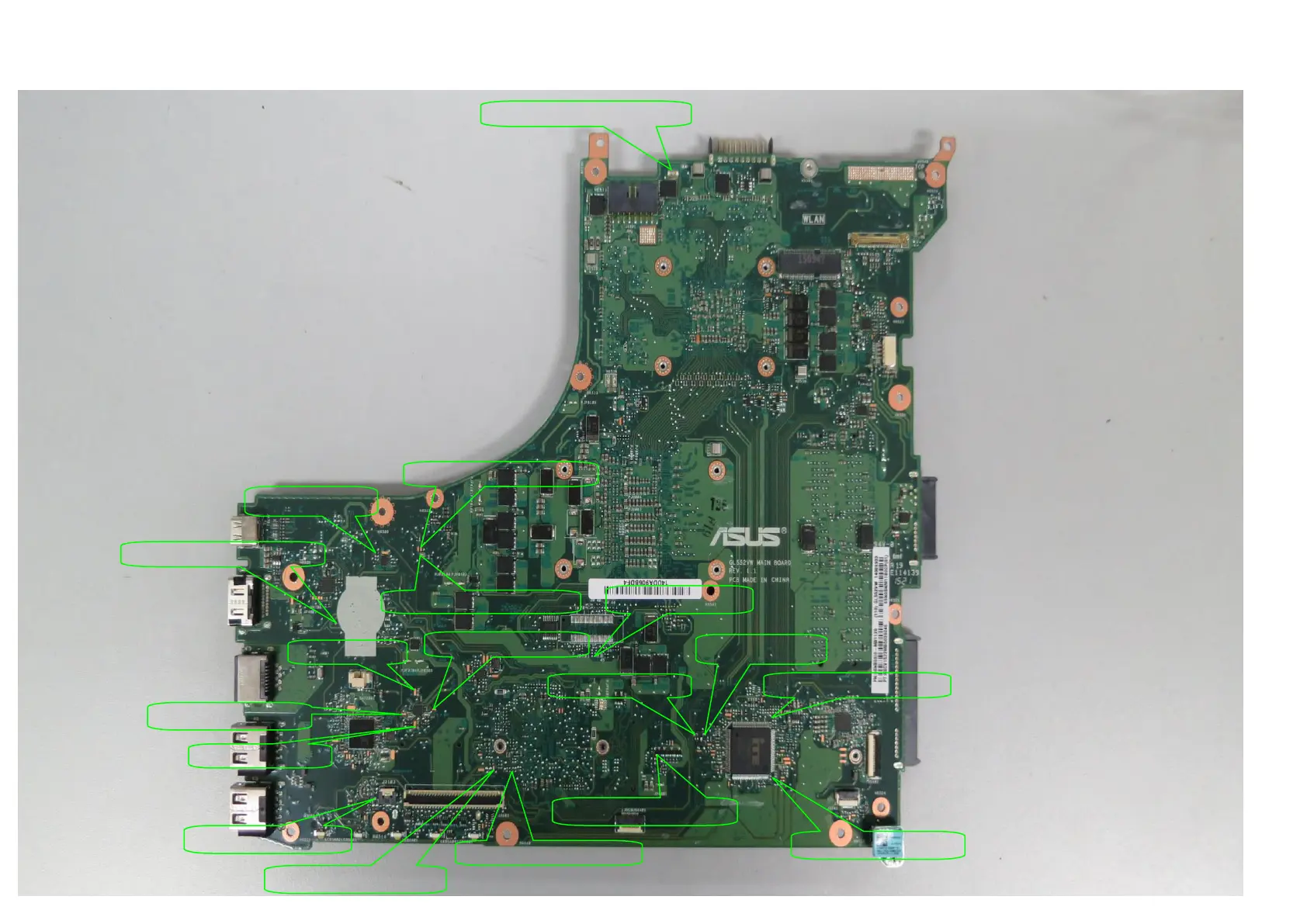

Signal Measure Point-Top
PU300 +3VSB
13 D5804 +3VSUS_PWRGD 483
5 D3201 +3VA_EC 477
26.PC8040 ALL_SYS_PWRGD 559
32.C3013 PM_SYSPWROK 744
6 D3201 EC_RST# 755
19.SL2005 PM_PWRBTN# 568
18. VT633 PWR_SW# 635
1. PR8921 AC_BAT_SYS 436
2 PSL8704 +5VA 506
3 PSL8703 +3VAO 424
7. PSL8701 3VADSW_ON 570
12.PSL8702+5VSUS_ON 578
27.PSL8007 P_IMVP8_EN_10 559
4. PR8820 PS_ON 519
8. VT1985 3VA_DSW_PWRGD 482
9 R2022 DPWROK_EC 700
10 VT657 PM_SLP_SUS# 573
11 PD8301 VSUS_ON 506
