Asus H81M-E R2.0 User Manual

2-9
ASUS H81M-E R2.0

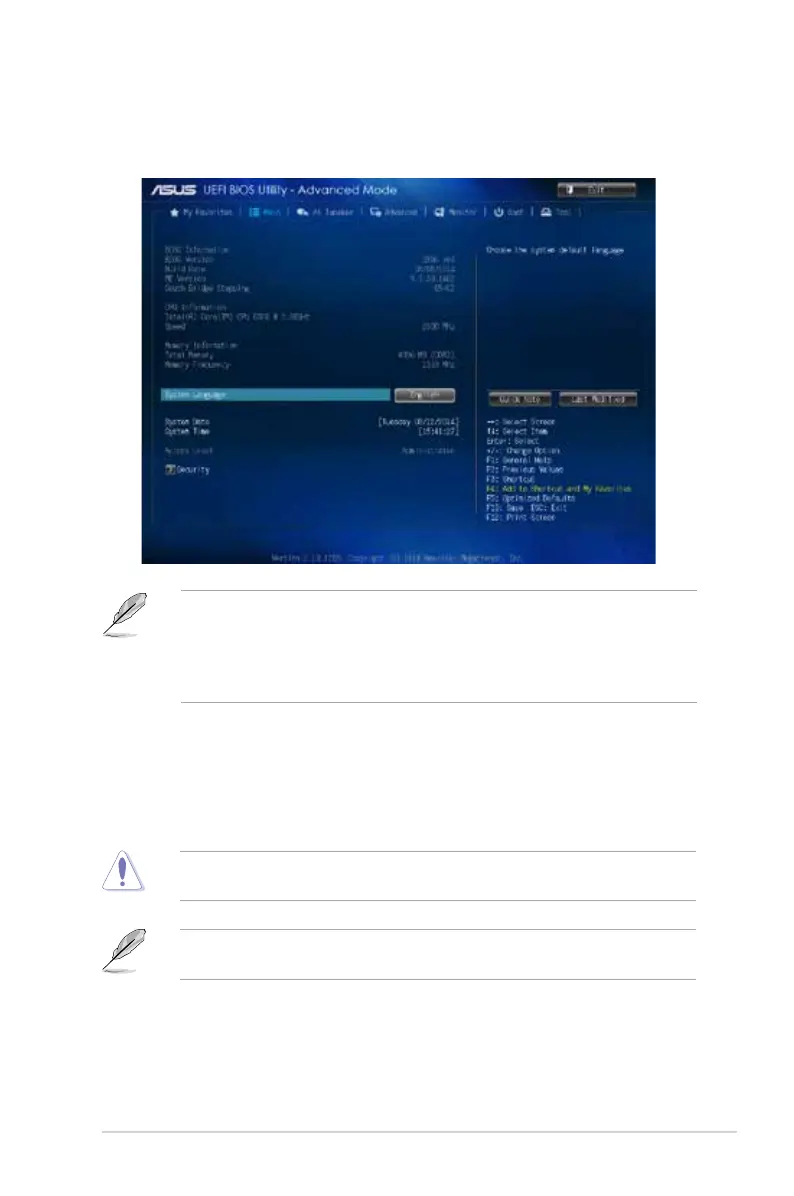

2.3 Main menu
The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup
program. The Main menu provides you an overview of the basic system information, and
allows you to set the system date, time, language, and security settings.
• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)
RAM to clear the BIOS password. See section 1.6 Jumpers for information on how to
erase the RTC RAM.
• The Administrator or User Password items on top of the screen show the default
Not Installed. After you set a password, these items show Installed.
2.4 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking‑related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.

Asus H81M-E R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
CPU Socket	LGA 1150
Memory Slots	2
Memory Type	DDR3
Maximum Memory	16 GB
PCIe x16 Slots	1
PCIe x1 Slots	2
USB 3.0 Ports	2
USB 2.0 Ports	8
RAID Support	No
Multi-GPU Support	No
Audio	Realtek ALC887
LAN	Realtek 8111G
