Asus KGPE-D16 User Manual

2-10 Chapter 2: Hardware information
2.3.1 Installing the CPU
To install a CPU:

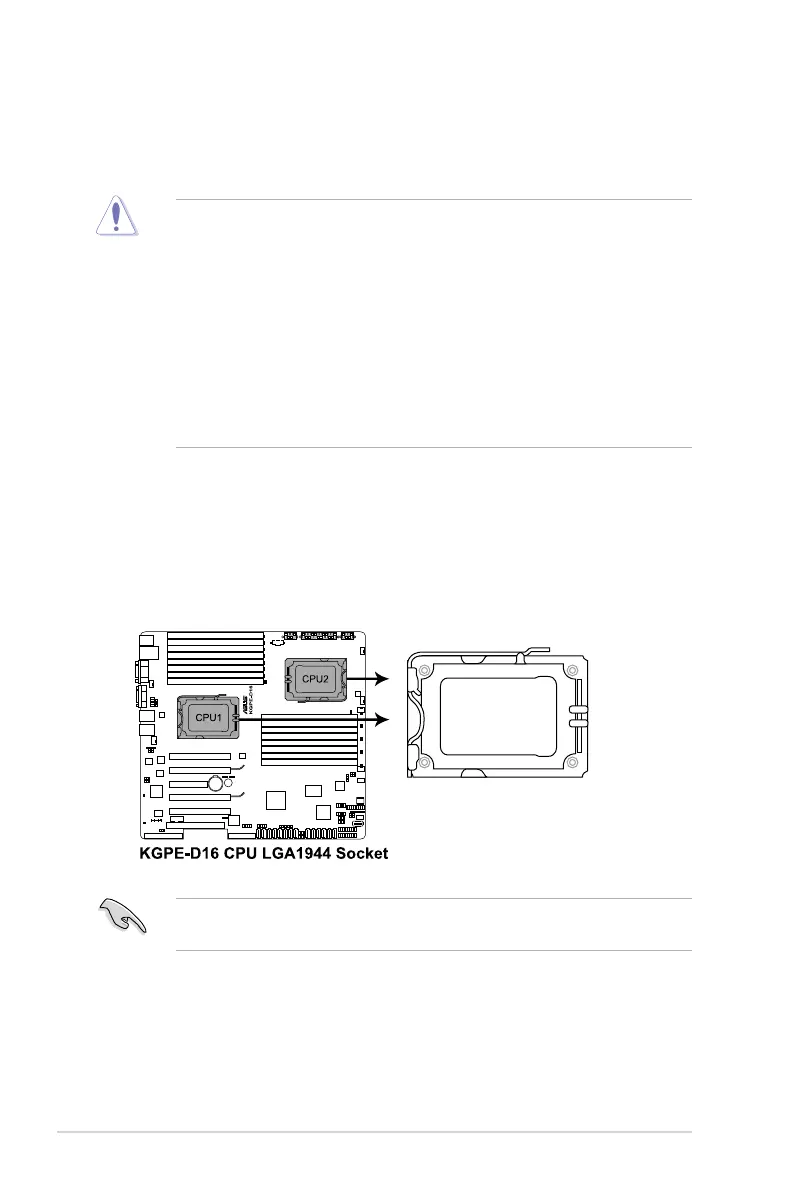

1. Locate the CPU socket on the motherboard.
Before installing the CPU, ensure that the socket box is facing toward you and
the load lever is on your left.
2.3 Central Processing Unit (CPU)
The motherboard comes with dual surface mount LGA 1944 Socket designed for
the AMD
®
Opteron™ 6300/6200/6100 series CPU in the Land Grid Array (LGA)
package.
• Upon purchase of the motherboard, ensure that the PnP cap is on
the socket and the socket contacts are not bent. Contact your retailer
immediately if the PnP cap is missing, or if you see any damage to the PnP
cap/socket contacts/motherboard components. ASUS shoulders the repair
cost only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return
Merchandise Authorization (RMA) requests only if the motherboard comes
with the cap on the Socket 1944.
• The product warranty does not cover damage to the socket contacts
resulting from incorrect CPU installation/removal, or misplacement/loss/
incorrect removal of the PnP cap.

Asus KGPE-D16 Specifications

General

Form Factor	SSI EEB
Maximum Memory Supported	128GB
PCIe 2.0 x16 Slots	2
PCIe 2.0 x4 Slots	1
PCI Slots	1
SATA 3Gb/s Ports	6
CPU Socket	Socket G34
Chipset	AMD SR5690
Memory Slots	16
Memory Type	DDR3
PCIe 2.0 x8 Slots	1
USB Ports	6
Network	Dual Gigabit LAN
