2-20 Chapter 2: Hardware information
2.7 Connectors

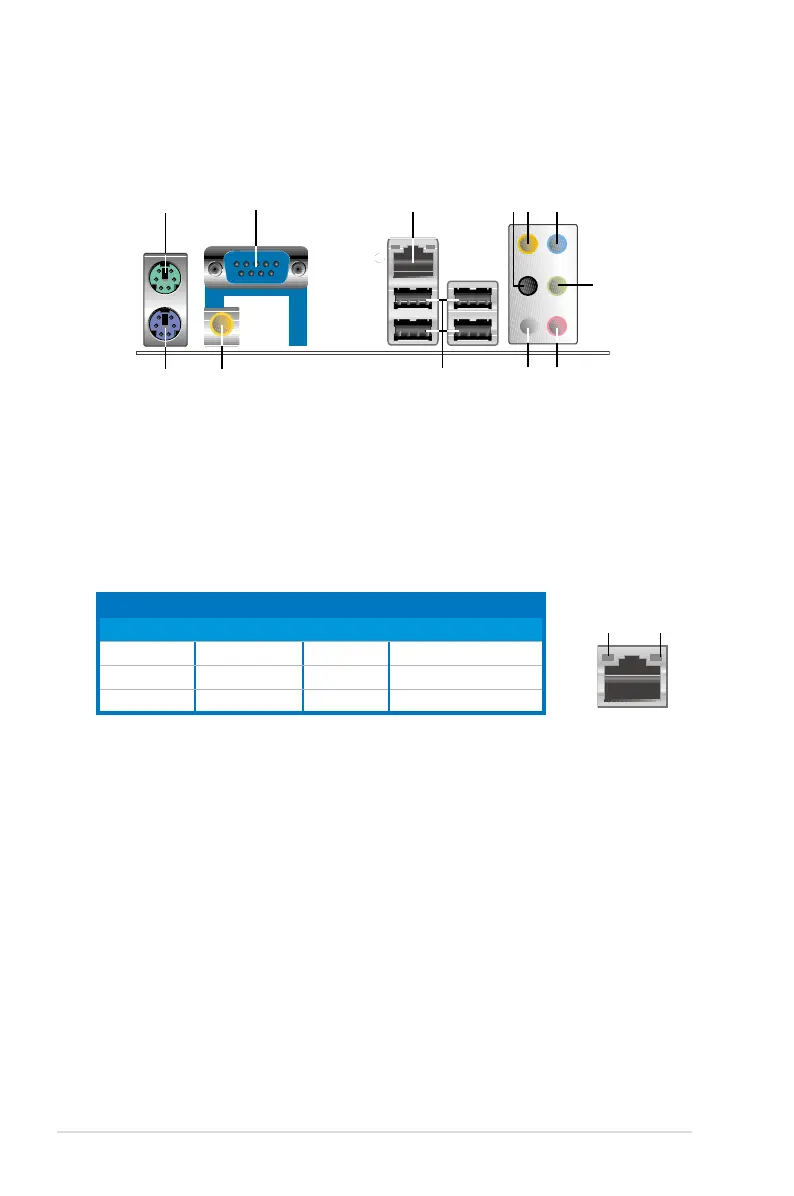

2.7.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Serial port.
This 9-pin COM1 port is for pointing devices and other serial
devices.
3. LAN 1 (RJ-45) port.
Supported by Marvell
®
88E1116 Gigabit LAN controller,
this port allows Gigabit connection to a Local Area Network (LAN) through a
network hub. Refer to the table below for the LAN port LED indications.
4. Rear Speaker Out port (black).
This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio conguration.
5. Center/Subwoofer port (orange).
This port connects the center/subwoofer
speakers.
6. Line In port (light blue).
This port connects the tape, CD, DVD player, or
other audio sources.
Activity/Link Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
3
4
11
1
2
12
5
6
9
10
8
7
7. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel conguration, the function of this port
becomes Front Speaker Out.
8. Microphone port (pink).
This port connects a microphone.
9. Side Speaker Out port (gray).
This port connects the side speakers in an
8-channel audio conguration.
