Asus M2N-MX DVI2 - 1.10 Connectors; 1.10.1 Rear Panel Connectors

1-20 Chapter 1: Product introduction
Refer to the audio conguration table for the function of the audio ports
in 2, 4, or 6,-channel conguration.
1.10 Connectors

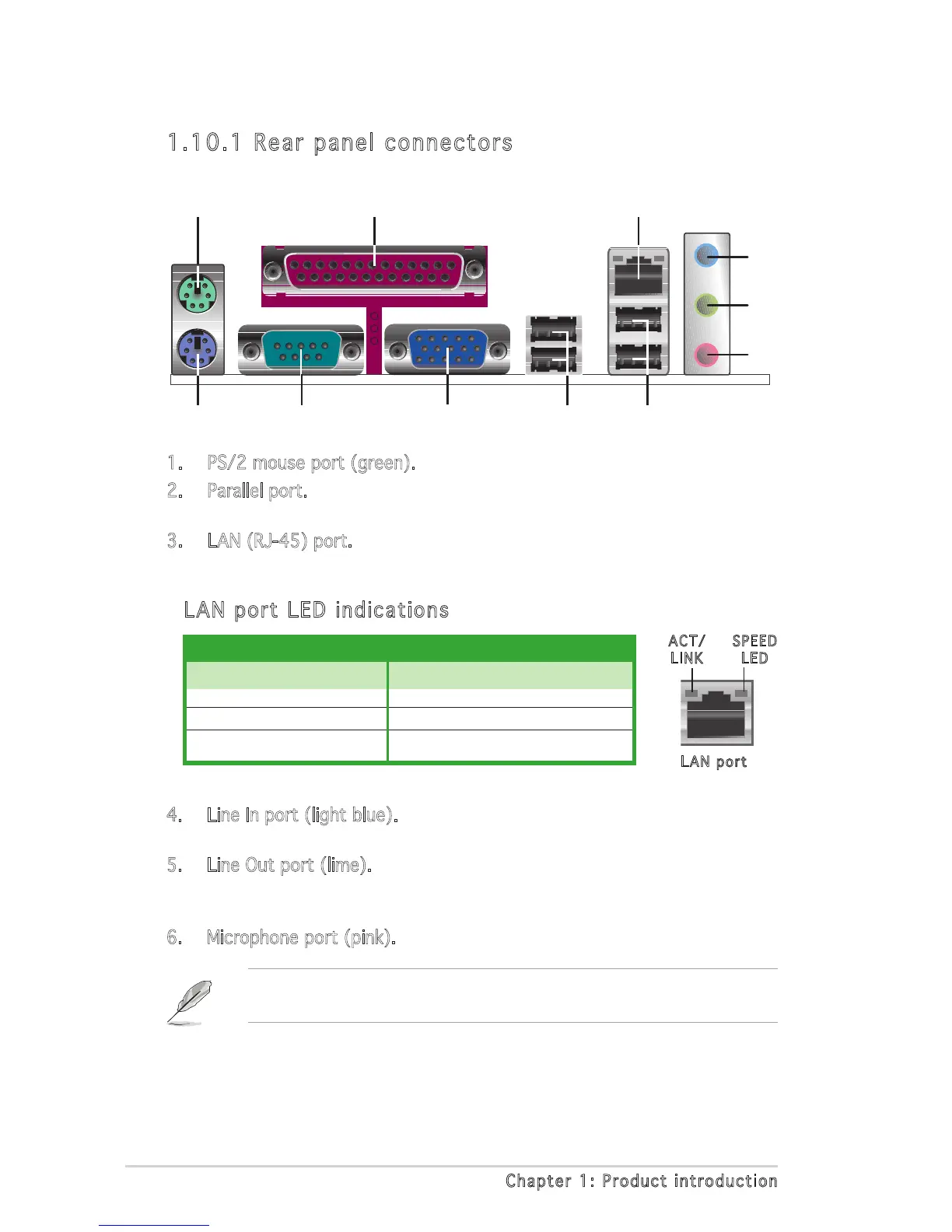

1.10.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub.
LAN port LED indications
LAN port
SPEED
LED
ACT/
LINK
4. Line In port (light blue). This port connects a tape, CD, DVD player, or
other audio sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel/ 6-channel conguration, the function of this port becomes
Front Speaker Out.
6. Microphone port (pink). This port connects a microphone.
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
Orange Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1
11
4
5
6
7
2 3
8
10
9
