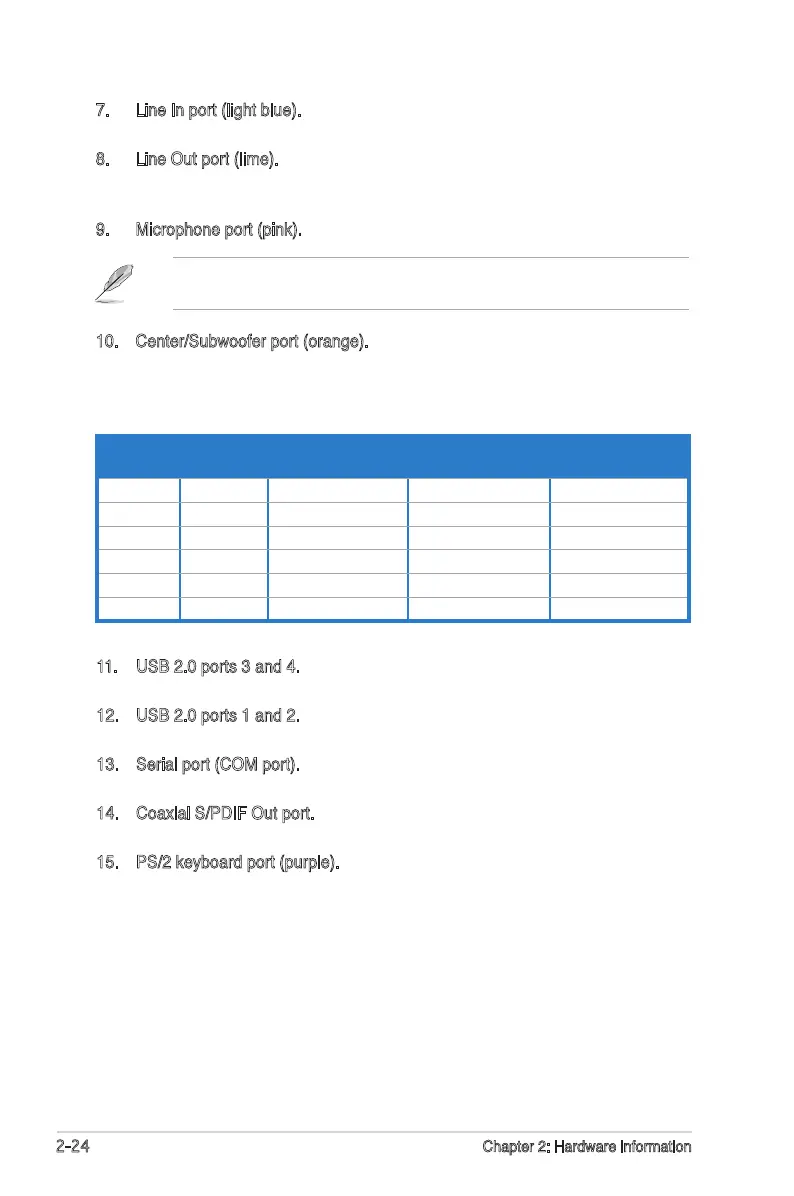

2-24
Chapter 2: Hardware information
7. Line In port (light blue). This port connects the tape, CD, DVD player, or other
audio sources.
8. Line Out port (lime). This port connects a headphone or a speaker. In 4-
channel, 6-channel, and 8-channel conguration, the function of this port
becomes Front Speaker Out.
9. Microphone port (pink). This port connects a microphone.
Refer to the audio conguration table below for the function of the audio ports in
2, 4, 6 or 8-channel conguration.
11. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
12. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
13. Serial port (COM port). This 9-pin COM port is for pointing devices and other
serial devices.
14. Coaxial S/PDIF Out port. This port connects an external audio output device
via a coaxial S/PDIF cable.
15. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
Audio 2, 4, 6, or 8-channel conguration
Port Headset
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – – – Rear Speaker Out
Gray – Side Speaker Out Side Speaker Out Side Speaker Out
10. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.

Asus M2N SLI - Deluxe AiLifestyle Series Motherboard Specifications

General

Form Factor	ATX
Chipset	NVIDIA nForce 570 SLI
CPU Socket Type	AM2
Memory Slots	4
Memory Standard	DDR2 800/667/533
Maximum Memory Supported	8GB
Channel Supported	Dual Channel
PCI Express x16	2
PCI Express x1	2
PCI Slots	2
Audio Chipset	ADI AD1988B
LAN Chipset	Marvell 88E1116
LAN Speed	10/100/1000Mbps
Audio Ports	6
CPU Type	AMD Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron
SATA RAID	0, 1, 0+1
Audio Channels	8
PS/2	1
USB 2.0 Ports	8
S/PDIF Out	Coaxial/Optical
Dimensions	30.5 cm x 24.4 cm
Power Pin	24-pin
LAN	Gigabit Ethernet
IEEE 1394a	2 x IEEE 1394a
ATA133	1 x ATA133
