Asus M2N SLI - Deluxe AiLifestyle Series Motherboard User Manual

ASUS M2N-SLI 2-23

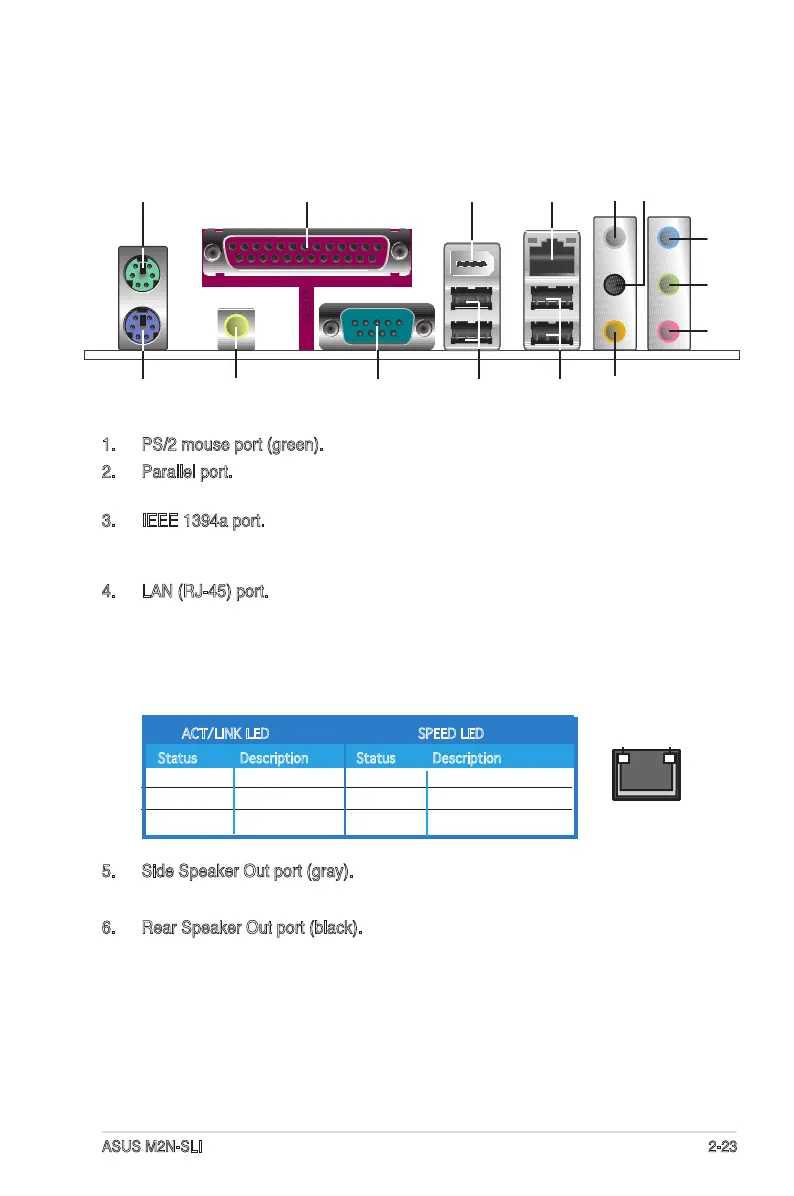

2.7 Connectors
2.7.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed
connectivity for audio/video devices, storage peripherals, PCs, or portable
devices.
4. LAN (RJ-45) port. Supported by the NVIDIA
®
nForce™ 560 Gigabit MAC with
external Attansic PHY, this port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
SPEED
LED
ACT/LINK
LED
LAN port
LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1
15
7
8
9
5 6
11 10
2 4
14 13
3
12
5. Side Speaker Out port (gray). This port connects the side speakers in an
8-channel audio conguration.
6. Rear Speaker Out port (black). This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio conguration.

Asus M2N SLI - Deluxe AiLifestyle Series Motherboard Specifications

General

Form Factor	ATX
Chipset	NVIDIA nForce 570 SLI
CPU Socket Type	AM2
Memory Slots	4
Memory Standard	DDR2 800/667/533
Maximum Memory Supported	8GB
Channel Supported	Dual Channel
PCI Express x16	2
PCI Express x1	2
PCI Slots	2
Audio Chipset	ADI AD1988B
LAN Chipset	Marvell 88E1116
LAN Speed	10/100/1000Mbps
Audio Ports	6
CPU Type	AMD Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron
SATA RAID	0, 1, 0+1
Audio Channels	8
PS/2	1
USB 2.0 Ports	8
S/PDIF Out	Coaxial/Optical
Dimensions	30.5 cm x 24.4 cm
Power Pin	24-pin
LAN	Gigabit Ethernet
IEEE 1394a	2 x IEEE 1394a
ATA133	1 x ATA133
