Asus M2N-VM DH User Manual

ASUS M2N - V M D H 1-13

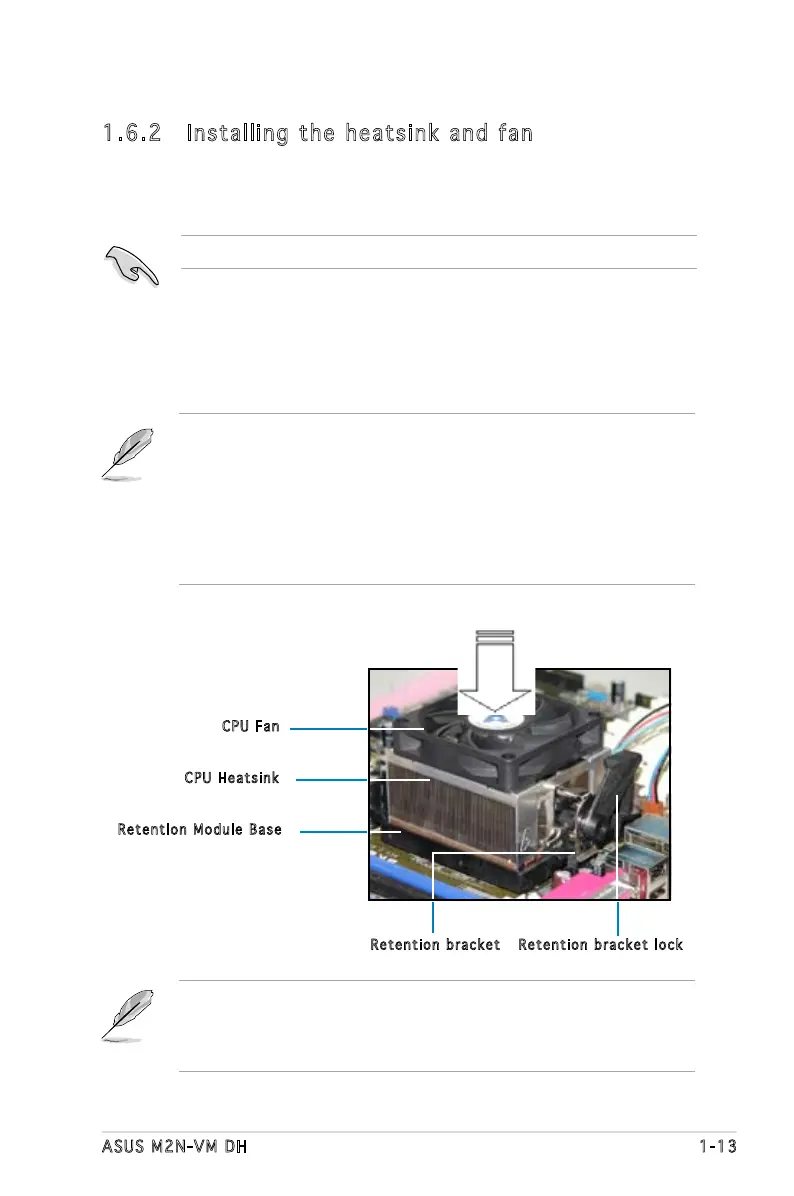

1.6.2 Installing the heatsink and fan
The AMD Socket AM2 Athlon™ 64 X2/Athlon™ 64/Athlon™ FX/Sempron™
processor require a specially designed heatsink and fan assembly to ensure
optimum thermal condition and performance.
Follow these steps to install the CPU heatsink and fan.
1. Place the heatsink on top of the installed CPU, making sure that the
heatsink ts properly on the retention module base.
Rete ntion Mo dule Bas e
CPU Heats ink
CPU Fan
Rete ntion br acket lo ckRete ntion br acket
Make sure that you use only qualied heatsink and fan assembly.
• The retention module base is already installed on the motherboard
upon purchase.
• You do not have to remove the retention module base when
installing the CPU or installing other motherboard components.
• If you purchased a separate CPU heatsink and fan assembly, make
sure that a Thermal Interface Material is properly applied to the CPU
heatsink or CPU before you install the heatsink and fan assembly.
Your boxed CPU heatsink and fan assembly should come with installation
instructions for the CPU, heatsink, and the retention mechanism. If the
instructions in this section do not match the CPU documentation, follow
the latter.

Asus M2N-VM DH Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
S/PDIF out connector	Yes
Number of SATA connectors	5
I/O ports	1x WiFi-AP Solo antenna
Special features	ASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In ASUS C.P.R. Q-Fan2 MyLogo2 EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, Chassis Intrusion
Controller interface type	JMicron JMB363
Controller 2nd interface type	NVIDIA nForce 430
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS DH Remote Application ASUS WiFi-AP Solo Wizard Nvidia MediaShield RAID ASUS PC Probe 2 AMD Cool ' n' Quiet Utility ASUS LiveUpdate Utility Anti-Virus software (OEM)
Graphics card	GeForce 6100
Networking features	Gigabit Ethernet, Wireless LAN
BIOS memory size	32 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	245 mm
