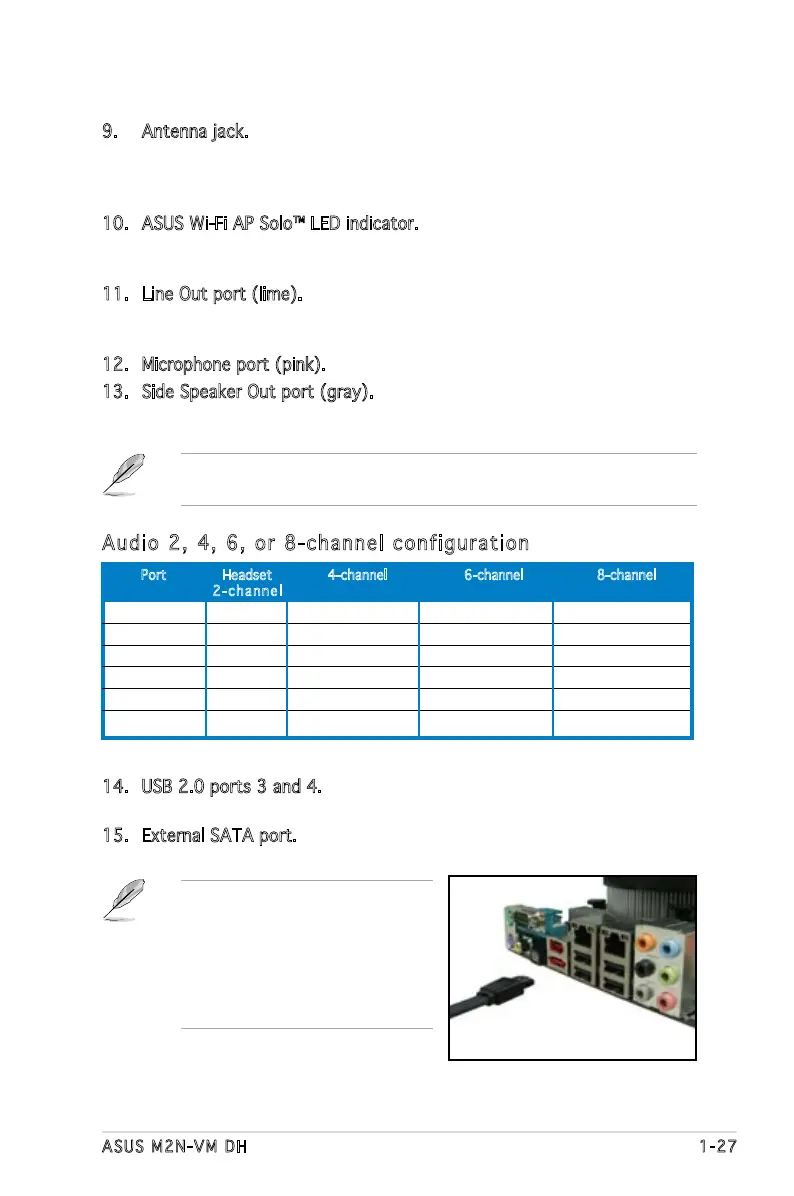

ASUS M2N - V M D H 1-27
14. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
15. External SATA port. This port connects to an external SATA box or a
Serial ATA port multiplier.
9. Antenna jack. This jack is on the onboard wireless LAN module that
allows you to set up a wireless network and exchange information with
other wireless devices without tangling cables and wires. Connect the
moveable omni-directional antenna to this jack.
10. ASUS Wi-Fi AP Solo™ LED indicator. The ASUS Wi-Fi AP Solo™ comes
with a green data transmission LED (AIR). For more information, refer
to the ASUS Wi-Fi AP Solo™ user guide.
11. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel conguration, the function of this
port becomes Front Speaker Out.
12. Microphone port (pink). This port connects a microphone.
13. Side Speaker Out port (gray). This port connects the side speakers in
an 8-channel audio conguration.
Refer to the audio conguration table below for the function of the audio
ports in 2, 4, 6, or 8-channel conguration.
Audio 2, 4, 6, or 8-channel configuration
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Gray • Rear Speaker Out Rear Speaker Out Side Speaker Out
Black • • • Rear Speaker Out
Yellow Orange • • Center/Subwoofer Center/Subwoofer
Port Headset 4-channel 6-channel 8-channel
2-ch annel
The external SATA port supports
external Serial ATA 3.0 Gb/s
devices. Longer cables support
higher power requirements to
deliver signal up to two meters
away, and enables improved
hot-swap function.
