Asus M2N-VM DH User Manual

1-36 Chapter 1: Product introduction

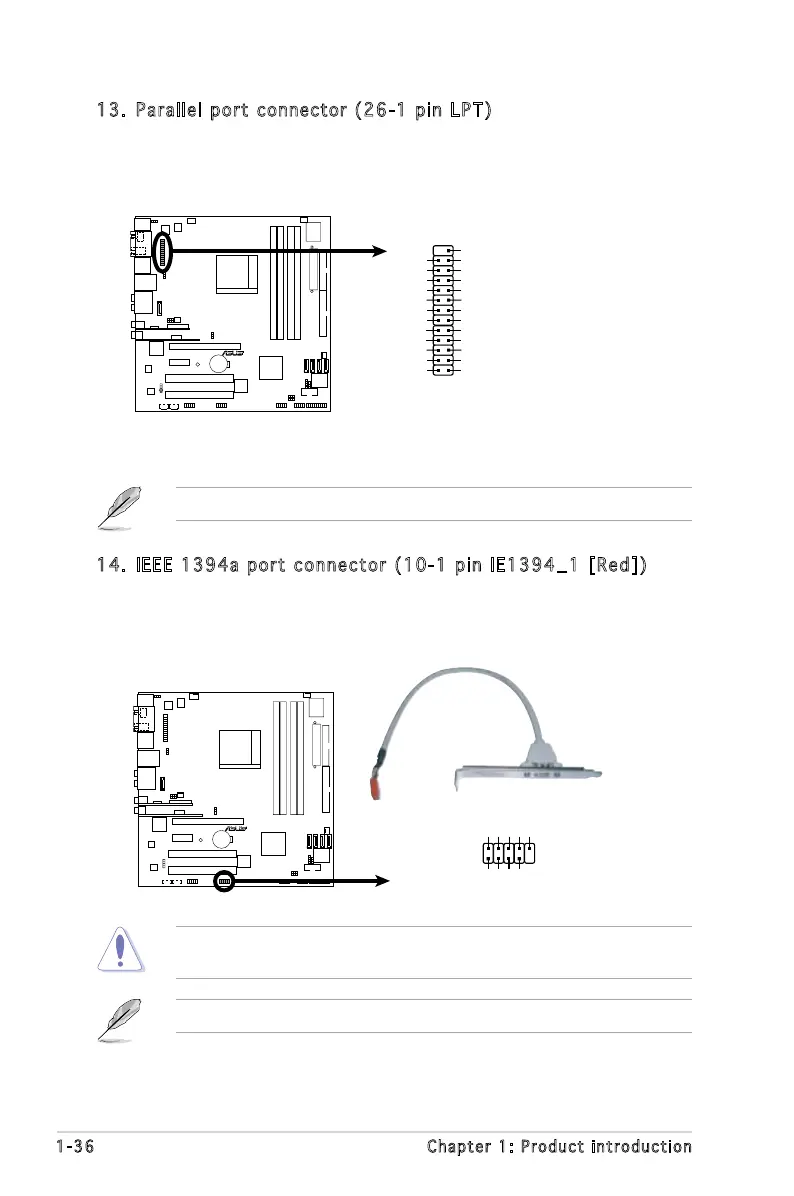

13. Parallel port connector (26-1 pin LPT)
This connector is for a parallel port. Connect the parallel port module
cable to this connector, then install the module to a slot opening at
the back of the system chassis.
The parallel port cable is purchased separately.
R
M2N-VM DH
M2N-VM DH Parallel Port Connector
LPT
STB#
AFD
PD0ERR#
PD1
INIT
#
PD2SLIN#
PD3GND
PD4
1
GND
PD7
PD6
PD5
GND
GND
GND
ACK#
GND
BUS
Y
PE
SLCT
GND
GND
14. IEEE 1394a port connector (10-1 pin IE1394_1 [Red])
This connector is for an additional IEEE 1394a port. Connect the IEEE
1394a module cable (red) to this connector, then install the module
to a slot opening at the back of the system chassis.
Never connect a USB port module cable to the IEEE 1394 connector.
Doing so will damage the motherboard!
R
M2N-VM DH
M2N-VM DH IEEE 1394a Connector
IE1394_2
1
GND
+12V
TPB1-
GND
TPA1-
+12V
TPB1+
GND
TPA1+
The IEEE 1394a module is purchased separately.

Asus M2N-VM DH Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
S/PDIF out connector	Yes
Number of SATA connectors	5
I/O ports	1x WiFi-AP Solo antenna
Special features	ASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In ASUS C.P.R. Q-Fan2 MyLogo2 EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, Chassis Intrusion
Controller interface type	JMicron JMB363
Controller 2nd interface type	NVIDIA nForce 430
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS DH Remote Application ASUS WiFi-AP Solo Wizard Nvidia MediaShield RAID ASUS PC Probe 2 AMD Cool ' n' Quiet Utility ASUS LiveUpdate Utility Anti-Virus software (OEM)
Graphics card	GeForce 6100
Networking features	Gigabit Ethernet, Wireless LAN
BIOS memory size	32 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	245 mm
