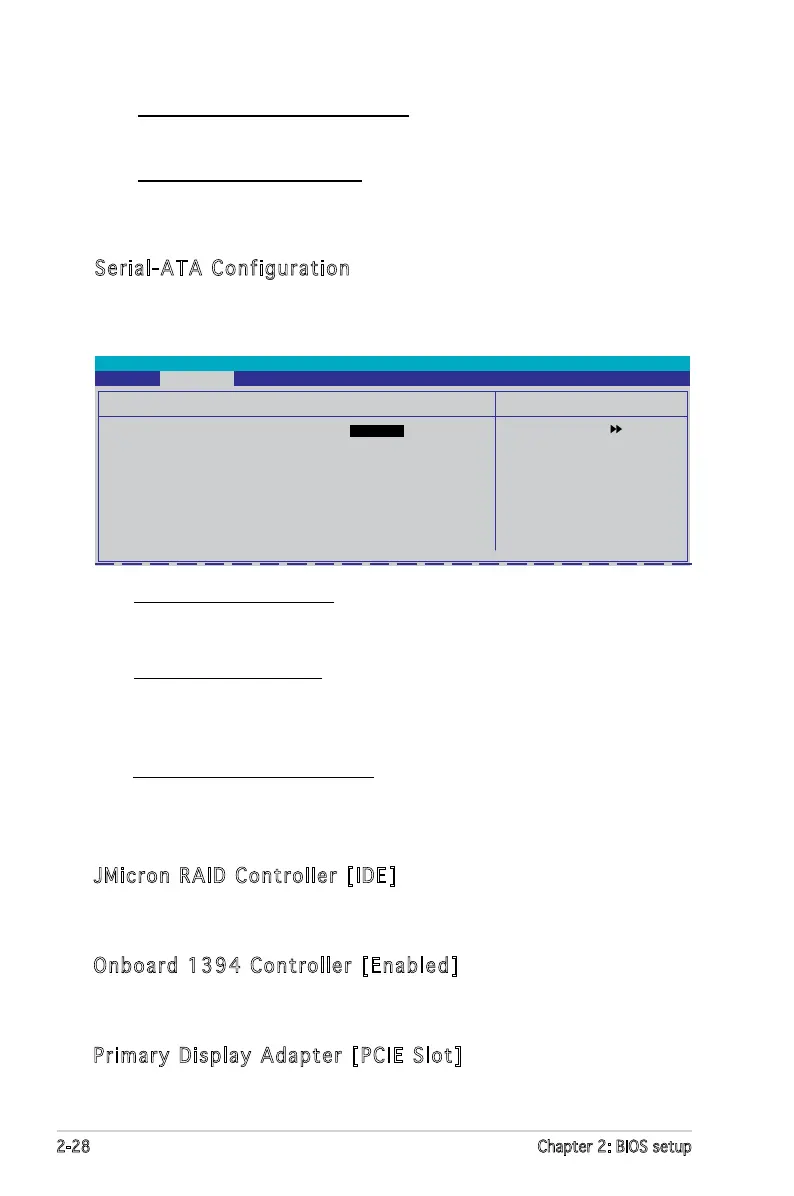

2-28 Chapter 2: BIOS setup
SATA Port 1, 2 [Enabled]
Allows you to disable or set the SATA 1 and 2 ports.
Conguration options: [Disabled] [SATA-1] [SATA-1+2]
RAID Enabled [Disabled]
Enables or disables the onboard RAID controller. When set to
[Enabled], the succeeding items become user-congurable.
Conguration options: [Disabled] [Enabled]
IDE DMA transfer access [Enabled]
Allows you to enable or disable the IDE DMA transfer access.
Conguration options: [Disabled] [Enabled]
IDE Prefetch Mode [Enabled]
Allows you to enable or disable the IDE PIO read prefetch mode.
Conguration options: [Disabled] [Enabled]
SATA1/2/3/4 RAID [Disabled]
Enables or disables the RAID function of the SATA1/2
primary/secondary master drives. Conguration options: [Disabled]
[Enabled]
JMicron RAID Controller [IDE]
Allows you to set the JMicron RAID controller mode.
Conguration options: [IDE] [AHCI] [RAID] [Disabled]
Onboard 1394 Controller [Enabled]
Allows you to disable or enable the onboard 1394 device support.
Conguration options: [Disabled] [Enabled]
Primary Display Adapter [PCIE Slot]
Allows you to select the graphics controller to use as the primary boot
device. Conguration options: [PCI Slot] [PCIE Slot] [Onboard VGA]
Select Menu
Item Specic Help
Disable/Enable OnChip
IDE Channel0
Phoenix-Award BIOS CMOS Setup Utility
Advanced
Serial-ATA Configuration
This sub-menu contains IDE function-related items. Select an item then
press <Enter> to edit.
Serial-ATA Conguration
SATA Port 1,2 [SATA-1+2]
RAID Enabled [Disabled]
x SATA 1 RAID Disabled
x SATA 1 RAID Disabled
x SATA 2 RAID Disabled
x SATA 2 RAID Disabled

Asus M2N-VM DH Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	2
S/PDIF out connector	Yes
Number of SATA connectors	5
I/O ports	1x WiFi-AP Solo antenna
Special features	ASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In ASUS C.P.R. Q-Fan2 MyLogo2 EZ Flash 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, Chassis Intrusion
Controller interface type	JMicron JMB363
Controller 2nd interface type	NVIDIA nForce 430
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS DH Remote Application ASUS WiFi-AP Solo Wizard Nvidia MediaShield RAID ASUS PC Probe 2 AMD Cool ' n' Quiet Utility ASUS LiveUpdate Utility Anti-Virus software (OEM)
Graphics card	GeForce 6100
Networking features	Gigabit Ethernet, Wireless LAN
BIOS memory size	32 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	245 mm
