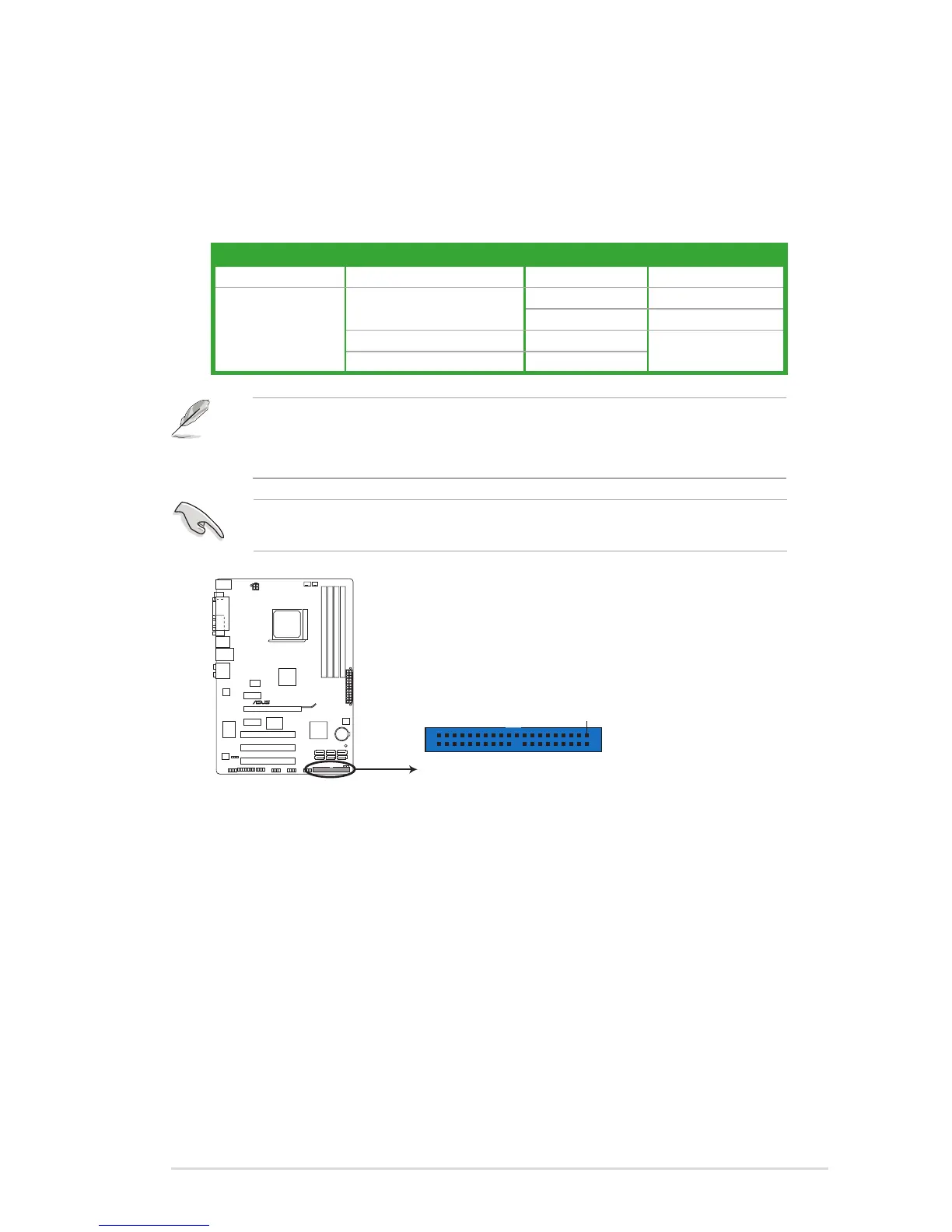

2. IDE connector (40-1 pin PRI_IDE)
The onboard IDE connector is for Ultra DMA 133/100 signal cable. There are three
connectors on each Ultra DMA 133/100 signal cable: blue, black, and gray. Connect
the blue connector to the motherboard’s IDE connector, then select one of the following
modes to congure your devices:
Drive jumper setting Mode of device(s) Cable connector
Single device Cable-Select or Master - Black
Two devices
Cable-Select
Master Black
Slave Gray
Master Master
Black or gray
Slave Slave
• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA
cable connector. This prevents incorrect insertion when you connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 133/100 IDE devices.
If any device jumper is set as “Cable-Select”, ensure that all other device jumpers have the
same setting.
PRI_IDE
NOTE:Orient the red markings
on the IDE ribbon cable to PIN 1.
PIN1
M4A77D
M4A77D IDE connector
ASUS M4A77D 1-23

Asus M4A77D Specifications

General

Socket	AM3
Chipset	AMD 770
Form Factor	ATX
Memory Slots	4
Max Memory Support	16 GB
Memory Type	DDR3
Storage Interface	6 x SATA 3Gb/s
Audio	8-Channel HD Audio
Max. LAN Speed	10/100/1000 Mbps
S/PDIF Out	Yes
Audio Ports	6
Expansion Slots	1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 2 x PCI
USB Ports	12 (6 on back panel, 6 via headers)
RAID	RAID 0, RAID 1, RAID 10, JBOD
LAN Chipset	Realtek 8112L
Dimensions (W x L)	30.5 cm x 24.4 cm
Power Pin	24-pin ATX + 4-pin ATX12V
