Asus M4A87T User Manual

3. AMD
®
SB850 Serial ATA 6.0 Gb/s connectors (7-pin SATA 1~6)
These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard
disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you can
create a RAID 0, RAID 1, RAID 5, or RAID 10 conguration through the onboard AMD
®
SB850 controller.
• These connectors are set to IDE mode by default. In IDE mode, you can connect Serial
ATA boot/data hard disk drives to these connectors. If you intend to create a Serial ATA
RAID set using these connectors, set the type of the SATA connectors in the BIOS to
[RAID]. See section 2.3.4 SATA Conguration for details.
• You must install Windows
®
XP Service Pack 2 or later version before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP2 or later version.
• When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to
[AHCI]. See section 2.3.4 SATA Conguration for details.
SATA6G_1
SATA6G_2
SATA6G_3
SATA6G_4
SATA6G_5
SATA6G_6
GND RSATA_RXN2 RSATA_RXP2 GND RSATA_TXN2 RSATA_TXP2 GND
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
GND RSATA_RXN4 RSATA_RXP4 GND RSATA_TXN4 RSATA_TXP4 GND
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND RSATA_RXN6 RSATA_RXP6 GND RSATA_TXN6 RSATA_TXP6 GND
GND
RSATA_TXP5
RSATA_TXN5
GND
RSATA_RXP5
RSATA_RXN5
GND
M4A87T

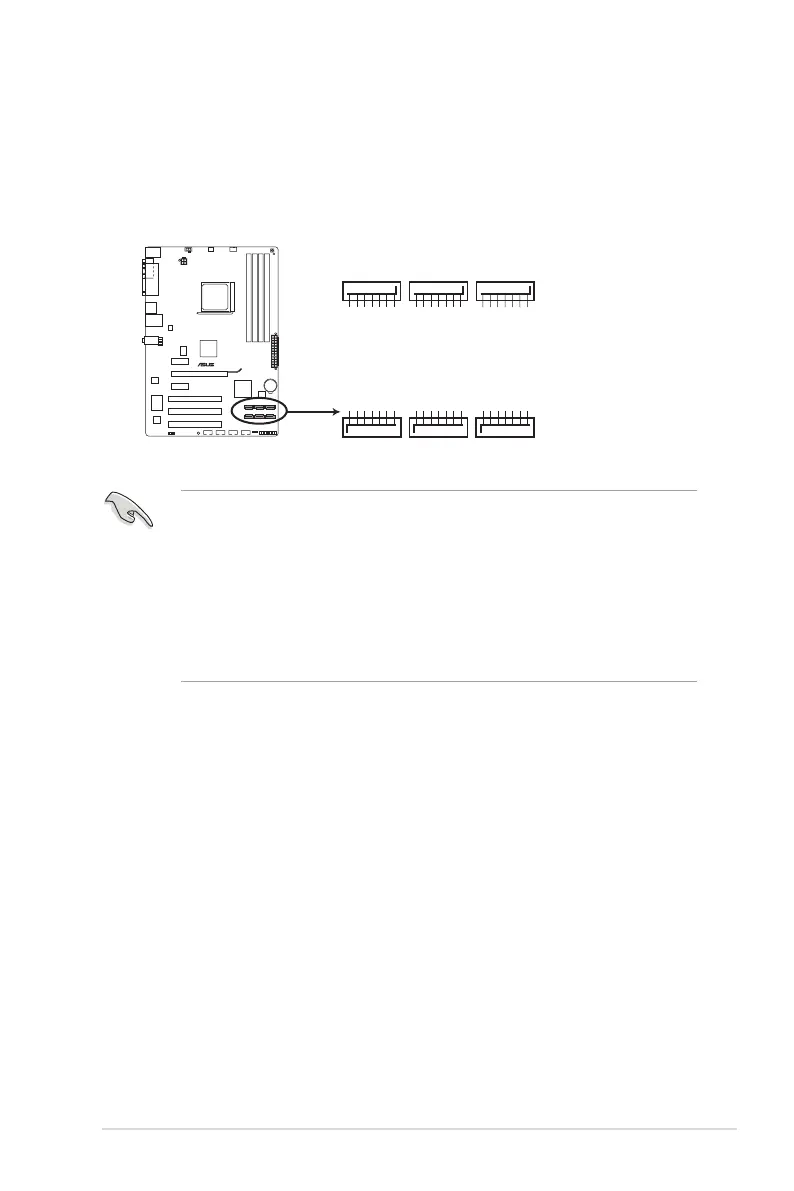

M4A87T SATA connectors
ASUS M4A87T 1-23
