1-221-22

1-22

Chapter 1: Product introductionChapter 1: Product introduction

Chapter 1: Product introduction

1.8.41.8.4

1.8.4

PCI slotsPCI slots

PCI slots

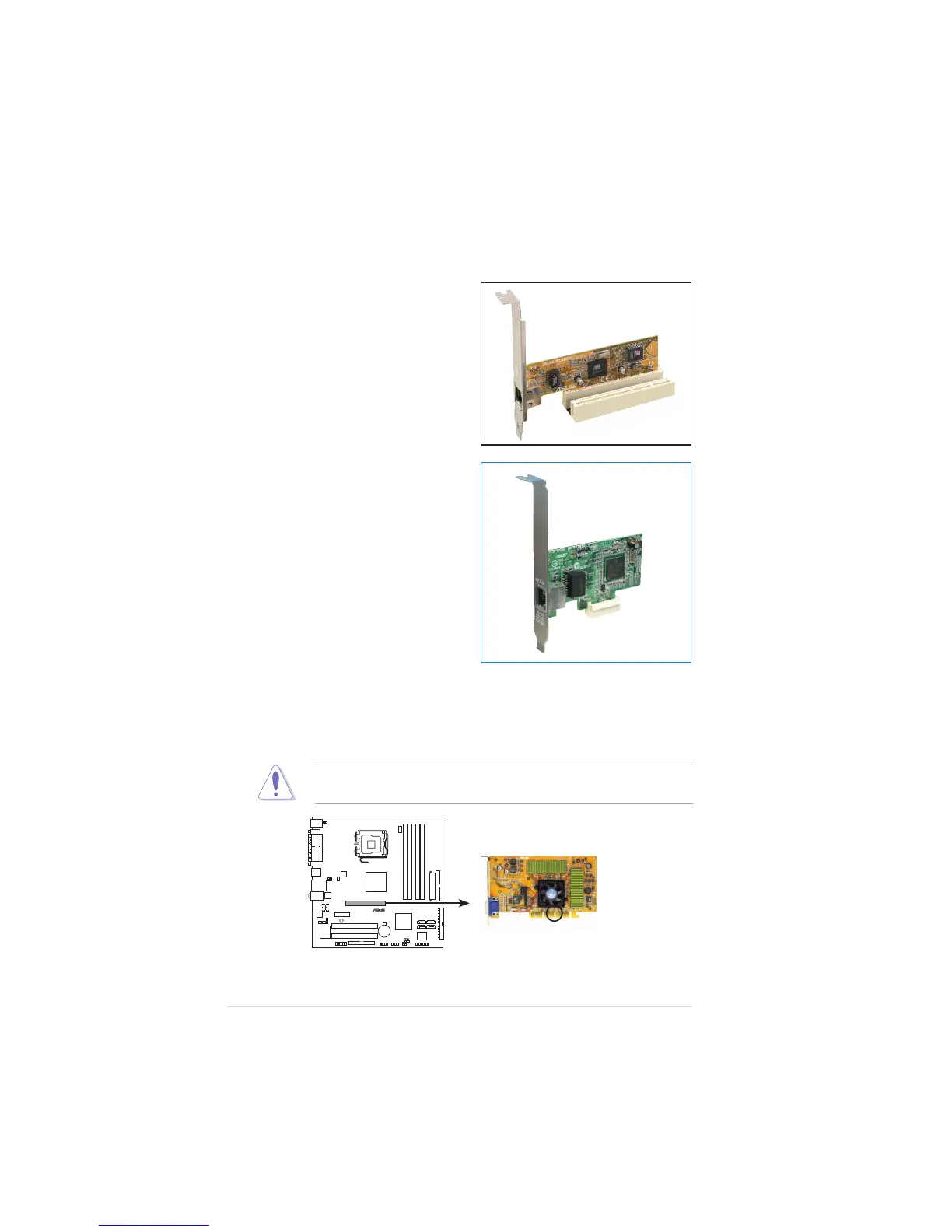

The PCI slots support cards such as a

LAN card, SCSI card, USB card, and

other cards that comply with PCI

specifications. The figure shows a

LAN card installed on a PCI slot.

1.8.61.8.6

1.8.6

AGP slotAGP slot

AGP slot

The Accelerated Graphics Port (AGP) slot supports AGP8X/4X cards. When

you buy an AGP card, make sure that you ask for one with +1.5V

specification. Note the notches on the card golden fingers to ensure that

they fit the AGP slot on your motherboard.

Install only 1.5 V or 0.8 V AGP cards on this motherboard! 3.3V AGP

cards are not supported in this motherboard.

P5VDC-MX

P5VDC-MX Accelerated Graphics Port (AGP)

Keyed for 1.5v

1.8.51.8.5

1.8.5

PCI Express x1 slotPCI Express x1 slot

PCI Express x1 slot

This motherboard supports PCI

Express x1 network cards, SCSI cards

and other cards that comply with the

PCI Express specifications. The figure

shows a network card installed on the

PCI Express x1 slot.

Asus Motherboard P5VDC-MX User Manual
