Chapter 2: Hardware informationChapter 2: Hardware information
Chapter 2: Hardware informationChapter 2: Hardware information
Chapter 2: Hardware information

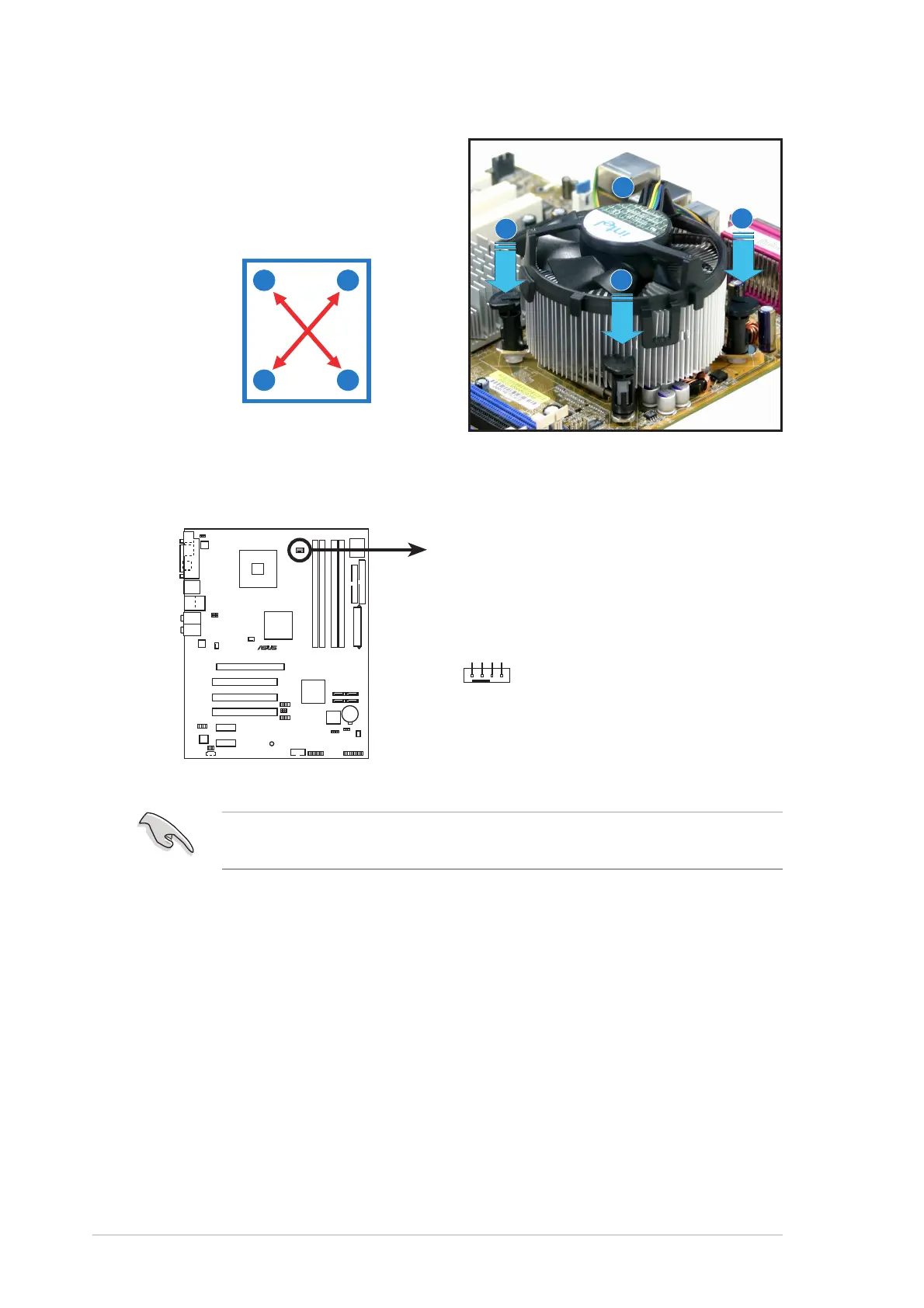

3. Connect the CPU fan cable to the connector on the motherboard
labeled CPU_FAN1.
2. Push down two fasteners at a
time in a diagonal sequence to
secure the heatsink and fan
assembly in place.
B
B
A
A
A
A
B
B
Do not forget to connect the CPU fan connector! Hardware monitoring
errors can occur if you fail to plug this connector.
P5AD2-E
®
P5AD2-E CPU fan connector
CPU_FAN
1
GND CPU FAN PWR CPU FAN IN CPU FAN PWM
