Asus P5B-VM User Manual

1-8 Chapter 1: Product introduction

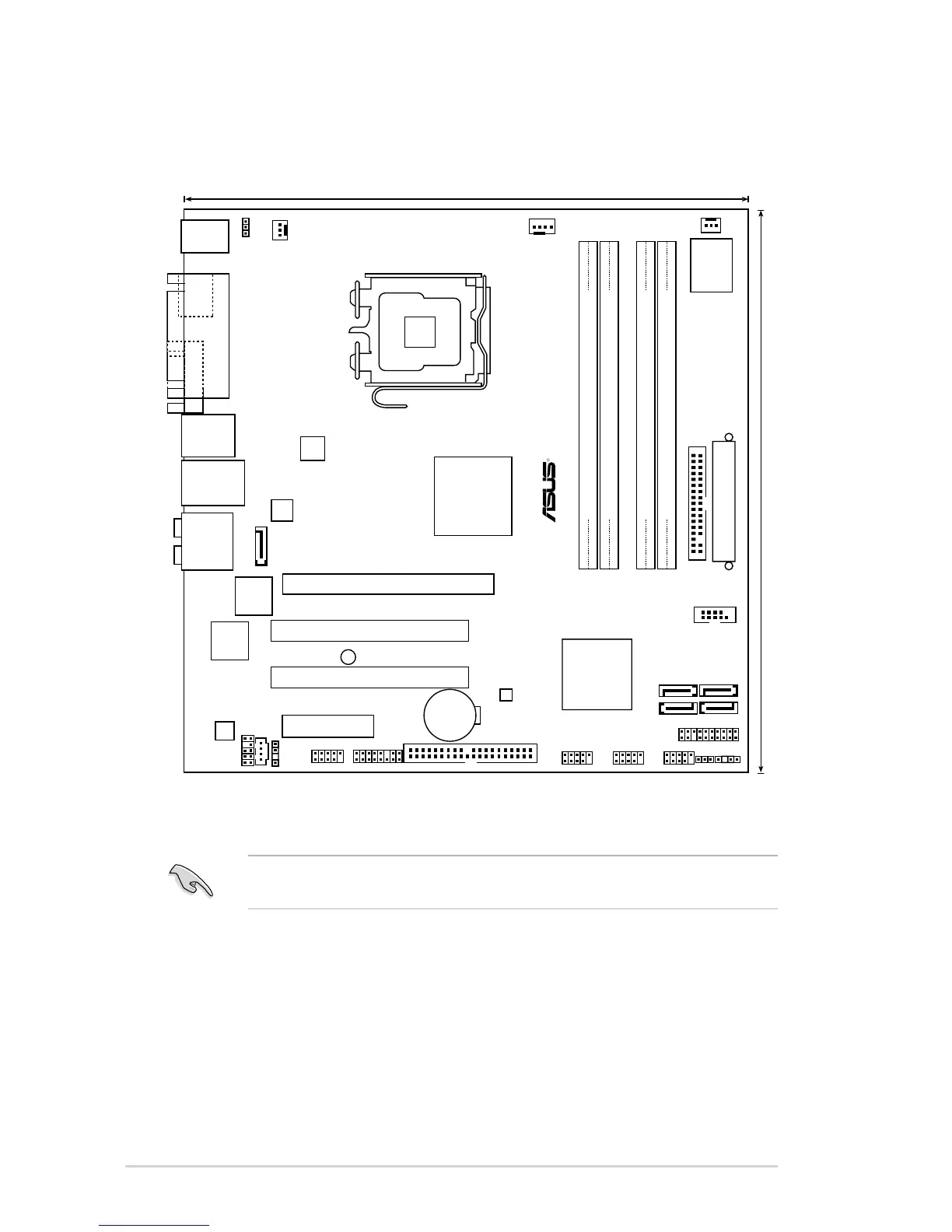

1.5.3 Motherboard layout
24.5cm (9.6in)
24.5cm (9.6in
)
LGA775
PCIEX16
PCI1
PCI2
PCIEX4_1
EATXPWR
PWR_FAN
SPDIF_OUT
CD
CHA_FAN1
KBPWR
CPU_FAN
Super I/O
DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_A2 (64 bit,240-pin module) DDR2 DIMM_B1 (64 bit,240-pin module) DDR2 DIMM_B2 (64 bit,240-pin module)
Intel G965MCH
Intel ICH8
FLOPPY
COM1
SATA1
SATA_RAID1
SATA2
SATA3
SATA4
PANEL
CHASSIS
CLRTC
USB910USB78USB56
PRI_EIDE
ADH
IE1394_2
AAFP
AD1988
RTL8111B
TSB43AB22A
JMicron
JMB363
8Mb BIOS
CR2032 3V
Lithium Cell
CMOS Power
AUDIO
LAN_USB34
1394_USB12
PARALLE PORT
PS/2KBMS
T: Mouse
B: Keyboard
ATX12V
R
P5B-VM
SB_PWR
ESATA
VGA
Refer to 1.10 Connectors for more information about rear panel connectors and
internal connectors.

Asus P5B-VM Specifications

General

ECC	No
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Maximum number of SMP processors	1
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	5
Special features	- ASUS AI Gear - ASUS AI Nap - ASUS Advanced Q-Fan - ASUS Q-Connector - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS C.P.R. - ASUS MyLogo 2
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE, RPL
Controller interface type	JMicron JMB363 PATA & SATA
PS/2 ports quantity	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	ADI AD1988
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows
Bundled software	ASUS PC Probe II ASUS Update Anti-Virus
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit
RAID levels	0, 1, JBOD
Parallel processing technology support	Not supported

Weight and Dimensions

Width	245 mm
