Asus P5G41T-M USB3 User Manual

ASUS P5G41T-M/USB3 1-7

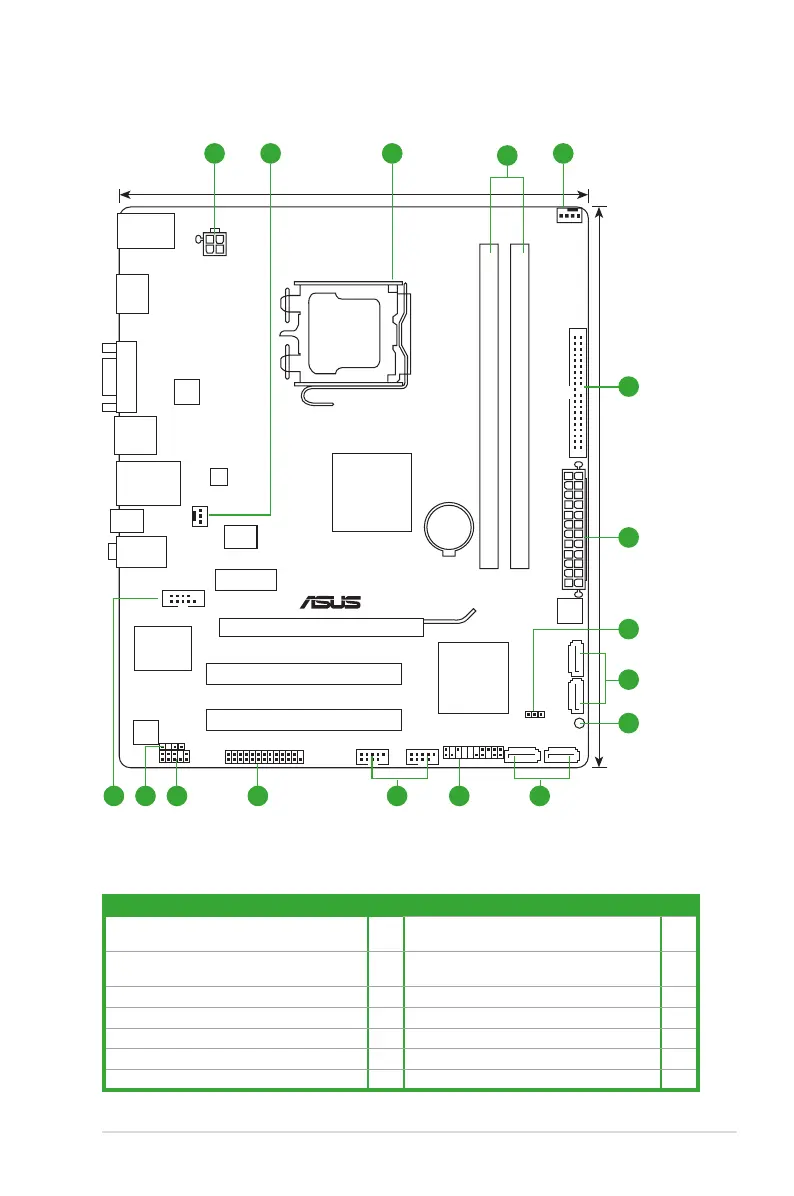

1.5.3 Motherboard layout
P5G41T-M/USB3
NEC
USB 3.0
PCIEX16
PCIEX1_1
PCI1
PCI2
PRI_IDE
USB78USB56
AAFP
ATX12V
EATXPWR
CPU_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
887
RTL
8111E
ICS
954 A4
KBMS
HDMI
8Mb
BIOS
SB_PWR
CLRTC
20.8cm(8.2in)
24.4cm(9.6in)
Intel
®
G41
Intel
®
ICH7
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA1 SATA3
SATA2 SATA4
AUDIO
LAN1_USB12
SPDIF_O2
USB_3_12
CHA_FAN
PANEL
SPDIF_OUT
LPT
COM1
LGA775
VGA
1 2 23
5
4
71011 9121314
1
6
7
8
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-22 8. Onboard power LED (SB_PWR) 1-5
2. CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
1-21 9. System panel connector (20-8 pin PANEL) 1-25
3. Intel
®
LGA775 CPU socket 1-8 10. USB connectors (10-1 pin USB56, USB78) 1-26
4. DDR3 DIMM slots 1-13 11. LPT connector (26-1 pin LPT) 1-23
5. IDE connector (40-1 pin PRI_IDE) 1-24 12. Front panel audio connector (10-1 pin AAFP) 1-20
6. Clear RTC RAM (3-pin CLRTC) 1-18 13. Digital audio connector (4-1 pin SPDIF_OUT) 1-21
7. Serial ATA connectors (7-pin SATA1-4) 1-23 14. Serial port connector (10-1 pin COM1) 1-26

Asus P5G41T-M USB3 Specifications

General

Chipset	Intel G41
Memory Type	DDR3
Max Memory	8GB
Form Factor	Micro ATX
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
CPU Socket Type	LGA 775
Audio Chipset	Realtek ALC887
Video Outputs	1 x VGA
RAID Support	No
LAN	Realtek 8111E Gigabit LAN
USB Ports	2 x USB 3.0
