ASUS P5GC-VM
1-15
4.

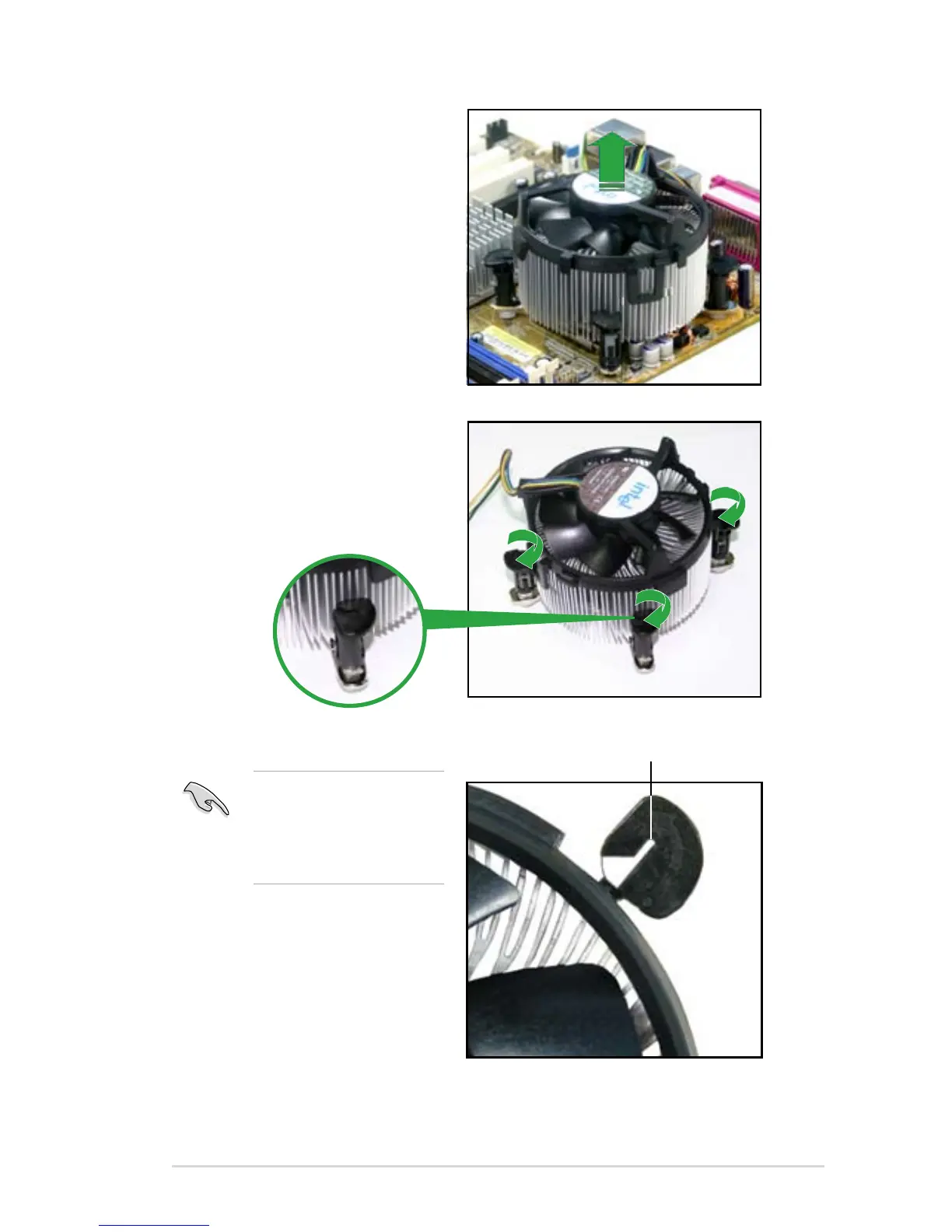

Remove the heatsink and fan
assembly from the
motherboard.
5.
Rotate each fastener clockwise
to reset the orientation.
The narrow end of the
groove should
point outward
after resetting. (The photo
shows the groove shaded
for emphasis.)
Narrow end of the groove
26
28
Table of Contents
Default Chapter
3
Table of Contents
3
Canadian Department of Communications Statement
6
Federal Communications Commission Statement
6
Notices
6
Electrical Safety
7
Safety Information
7
About this Guide
8
Conventions Used in this Guide
9
P5GC-VM Specifications Summary
10
Chapter 1: Product Introduction
13
Welcome
14
Package Contents
14
Special Features
14
Product Highlights
14
High Definition Audio
16
Tpm Support
16
Innovative ASUS Features
17
Before You Proceed
18
Onboard LED
18
Motherboard Overview
19
Placement Direction
19
Screw Holes
19
Motherboard Layout
20
Central Processing Unit (CPU)
21
Installling the CPU
21
Installling the CPU Heatsink and Fan
24
Uninstalling the CPU Heatsink and Fan
26
System Memory
28
Overview
28
Memory Configurations
28
DDR2 Qualified Vendors List
29
Installing a DIMM
32
Removing a DIMM
32
Expansion Slots
33
Installing an Expansion Card
33
Configuring an Expansion Card
33
Interrupt Assignments
34
PCI Slots
35
PCI Express X16 Slot
35
Jumpers
36
Clear RTC RAM
36
1.10 Connectors
38
Rear Panel Connectors
38
LAN Port LED Indications
38
Internal Connectors
39
Chassis Intrusion Connector
45
Front Panel Audio Connector
45
System Panel Connector
47
Chapter 2: BIOS Setup
49
Managing and Updating Your BIOS
50
Creating a Bootable Floppy Disk
50
ASUS EZ Flash Utility
51
AFUDOS Utility
52
Updating the Bios File
53
ASUS Crashfree BIOS 2 Utility
54
Recovering the Bios from the Support CD
55
ASUS Update Utility
56
BIOS Setup Program
59
BIOS Menu Screen
60
Menu Bar
60
Navigation Keys
60
Menu Items
61
Sub-Menu Items
61
Configuration Fields
61
Pop-Up Window
61
Scroll Bar
61
General Help
61
Main Menu
62
System Time
62
System Date
62
Legacy Diskette a
62
Primary, Third and Fourth IDE Master/Slave
63
IDE Configuration
64
System Information
65
Advanced Menu
66
USB Configuration
66
CPU Configuration
68
Chipset
69
Onboard Devices Configuration
72
PCI Pnp
73
TPM Configuration
74
Power Menu
75
Suspend Mode
75
ACPI 2.0 Support
75
ACPI APIC Support
75
APM Configuration
76
Hardware Monitor
78
Boot Menu
79
Boot Device Priority
79
Hard Disk Drives
79
Boot Settings Configuration
80
Security
81
Change User Password
82
Clear User Password
82
Exit Menu
83
Discard Changes
84
Load Setup Defaults
84
Chapter 3: Software Support
85
Installing an Operating System
86
Support CD Information
86
Running the Support CD
86
Drivers Menu
87
Utilities Menu
88
ASUS Contact Information
89
Cpu Features
91
Appendix: CPU Features
92
Enhanced Intel Speedstep Technology (EIST)
92
System Requirements
92
Using the EIST
92
Intel ® Hyper-Threading Technology
94
Using the Hyper-Threading Technology
94
4
