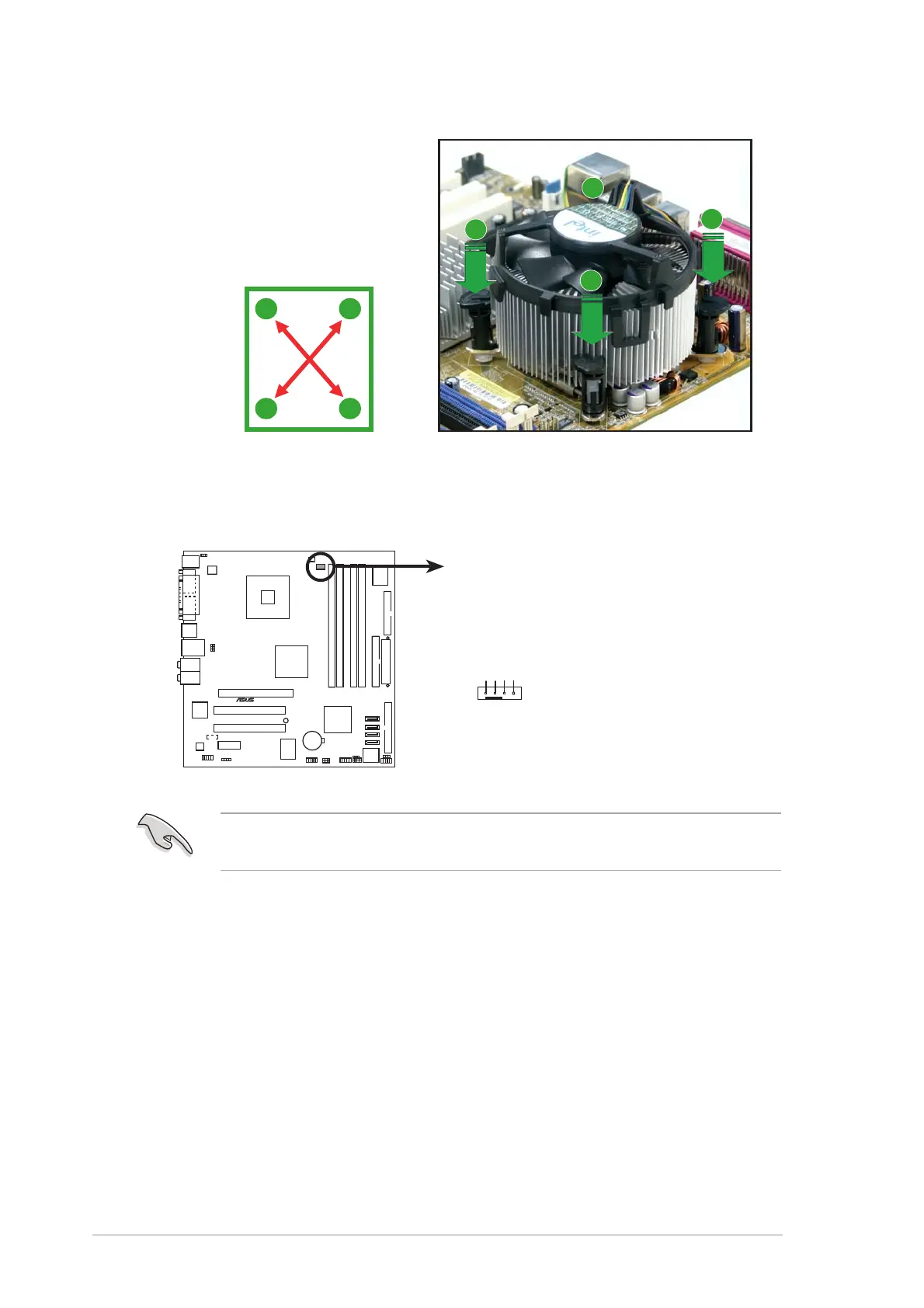

3. Connect the CPU fan cable to the connector on the motherboard
labeled CPU_FAN1.
Do not forget to connect the CPU fan connector! Hardware monitoring
errors can occur if you fail to plug this connector.
2. Push down two fasteners at
a time in a diagonal
sequence to secure the
heatsink and fan assembly in
place.
B
B
A
A
A
A
B
B
P5GD1-VM
®
CPU_FAN
1
GND CPU FAN PWR CPU FAN IN CPU FAN PWM
