3. Connect the CPU fan cable to the connector on the motherboard
labeled CPU_FAN1.
Do not forget to connect the CPU fan connector! Hardware monitoring
errors can occur if you fail to plug this connector.

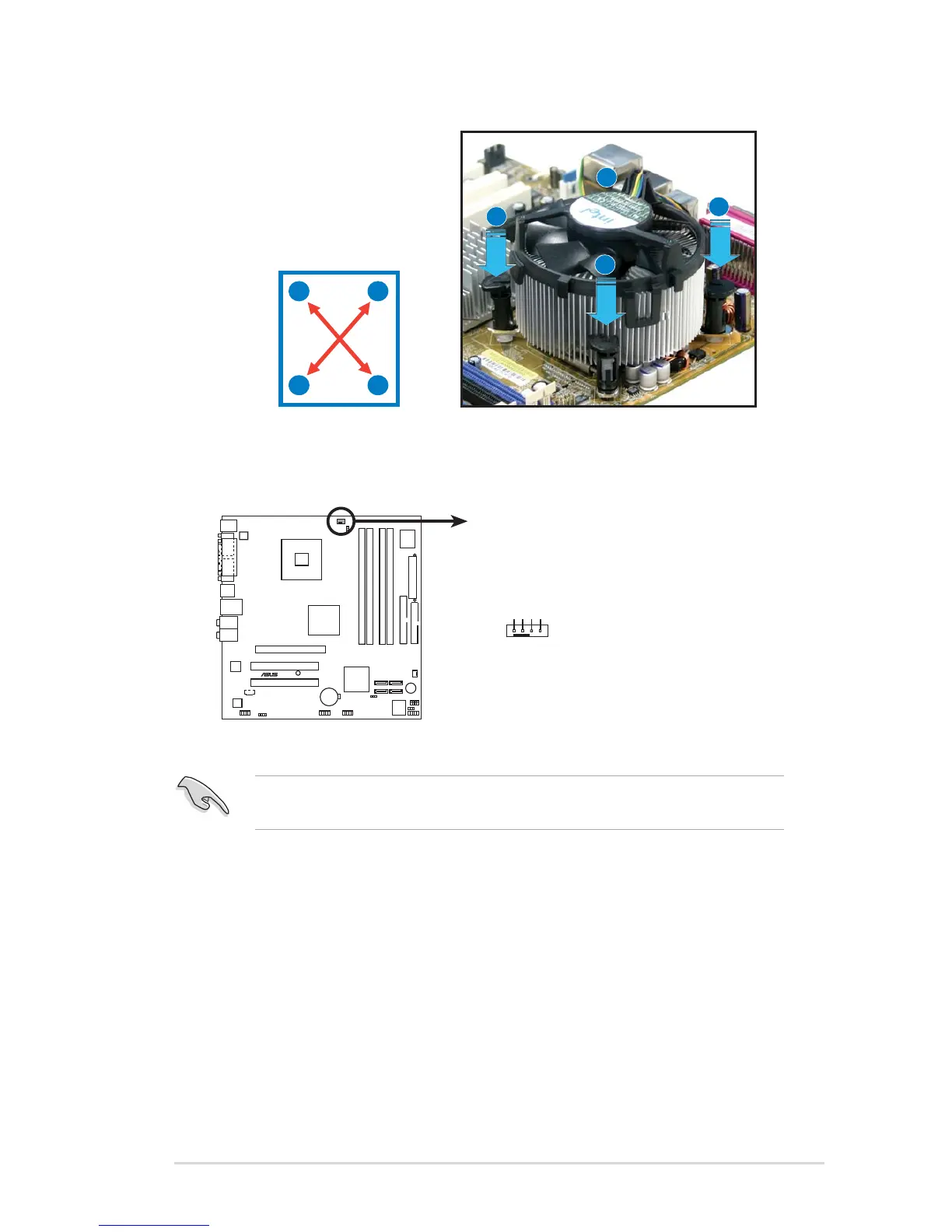

2. Push down two fasteners at
a time in a diagonal
sequence to secure the
heatsink and fan assembly in
place.
B
B
A
A
A
A
B
B
P5GD2-VM
®
P5GD2-VM CPU fan connector
CPU_FAN1
GND CPU FAN PWR CPU FAN IN CPU FAN PWM
