Asus P5K - AiLifestyle Series Motherboard User Manual

華碩 P5K 使用手冊
2-3

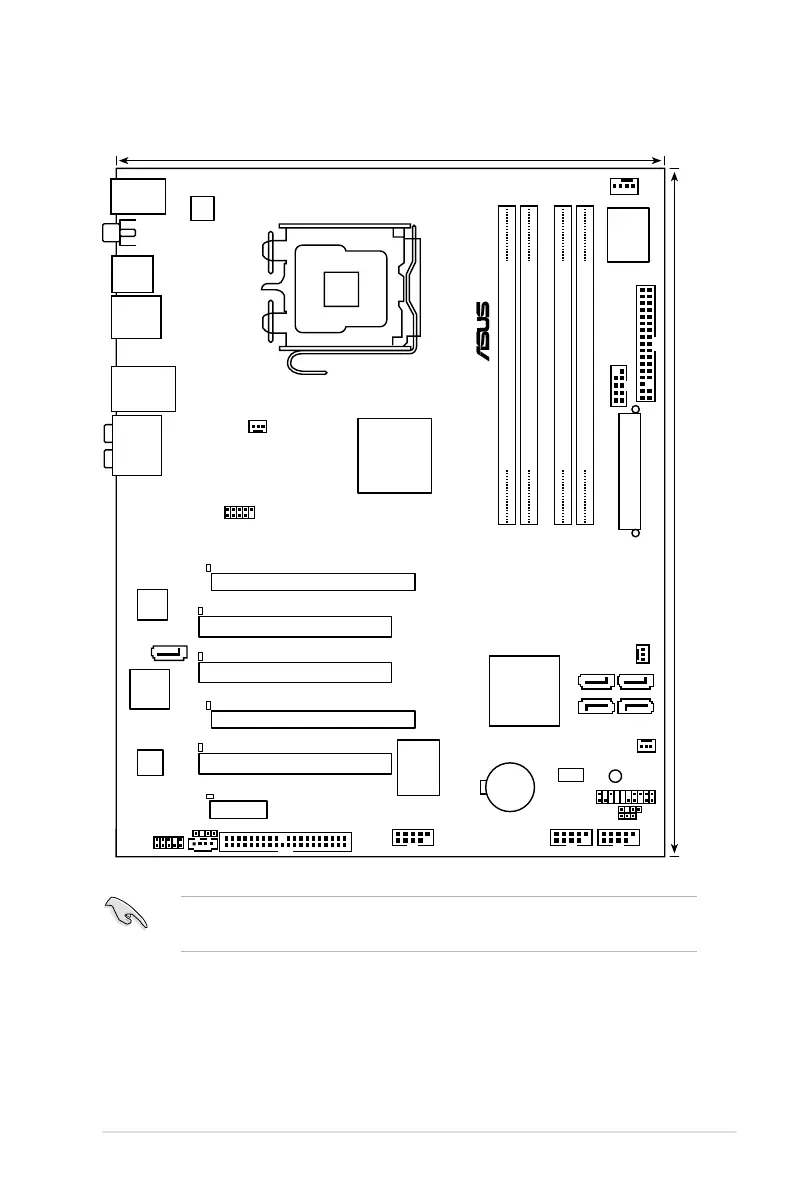

2.2.3 主機板構造圖
關於面板連接插座與內部連接插座的相關資訊，請參考〝2.7 元件
與周邊裝置的連接〞一節中的說明。
PANEL
P5K
®
AAFP
CHASSIS
24.5cm (9.6in)
30.5cm (12.0in)
CPU_FAN
DDR2 DIMM_A1 (64 bit,240-pin module)
FLOPPY
Super
I/O
CD
PCIEX16_2
CLRTC
Intel
®
ICH9
EATXPWR
CR2032 3V
Lithium Cell
CMOS Power
Intel
®
P35
PCI1
USB910
LAN1_USB12
KB_USB56
USB34
PCIEX16_1
PCI2
PCI3
JMB363
CHA_FAN1
SPDIF_OUT
LGA775
IE1394_2 USB78
SATA2
ATX12V
ALC883
PWR_FAN
DDR2 DIMM_A2 (64 bit,240-pin module) DDR2 DIMM_B1 (64 bit,240-pin module) DDR2 DIMM_B2 (64 bit,240-pin module)
PCIEX1_1
CHA_FAN2
AUDIO
USB1112
F_ESATA
COM1
BIOS
PRI_EIDE
SB_PWR
SATA4
SATA1
SATA3
SPDIF_O1
SATA_E2
VIA
VT6308P
LAN
DET_X16_1
DET_PCI1
DET_PCI2
DET_PCI3
DET_X16_2
DET_EX1_1

Asus P5K - AiLifestyle Series Motherboard Specifications

General

Brand	Asus
Model	P5K - AiLifestyle Series Motherboard
Category	Motherboard
Language	English
