2 ASUS P5KPL-CM

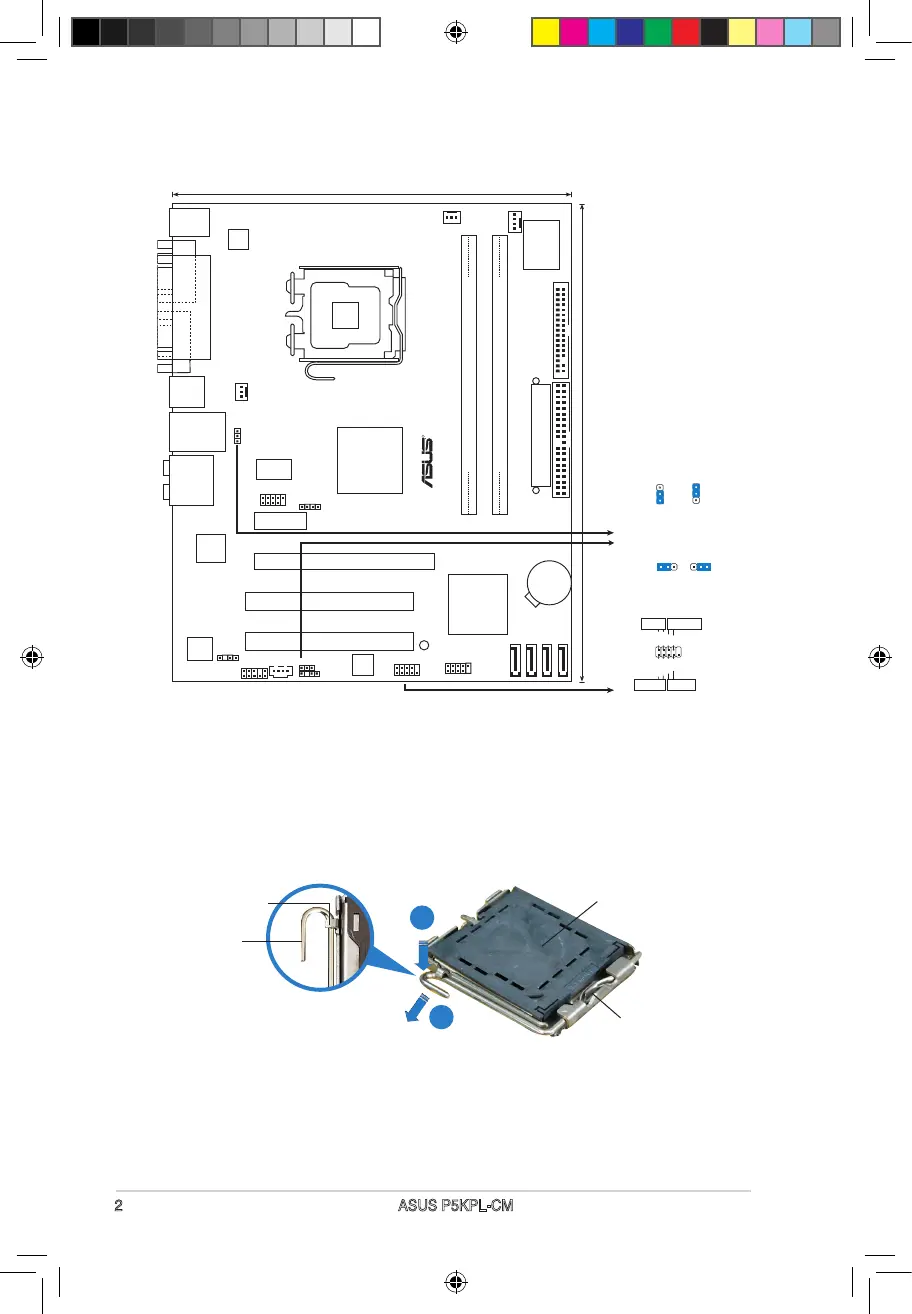

1. Motherboard layout
2. Installing the CPU
Follow these steps to install an Intel
®
processor in the 775-land package.
1. Press the load lever with your thumb (A), then move it to the left (B) until it is
released from the retention tab.
Retention tab
Load lever
This side of the cam box
should face you.
PnP cap
A
B
20.3cm (8in)
24.5cm (9.6in
)
DDR2 DIMM_A1 (64 bit,240-pin module)
DDR2 DIMM_B1 (64 bit,240-pin module)
P5KPL-CM
LAN_USB12
AUDIO
LGA775
CPU_FAN
Super I/O
CHA_FAN
FLOPPY
PRI_IDE
SATA1
SATA2
SATA3
SATA4
Intel ICH7
Intel G31
CLRTC
CHASSIS
USB56
F_PANEL
8Mb
BIOS
SPDIF_OUT
SPEAKER
CD
AAFP
PCI2
PCI1
PCIEX16
PCIEX1_1
VT1708B
PS2_USBPW
CR2032 3V
Lithium Cell
CMOS Power
A
TX12V
PARALLEL
POR
T
VGA COM1
PS/2KBMS
T: Mouse
B: Keyboard
USB34
EATXPWR
R
ATHEROS
AR8121
Clock Gen 954
SB_PWR
USB78
CLRTC
Normal
Clear RTC
(Default)
1 2 2 3
3
2
2
1
PS2_USBPW
(D
e
fault)
+5
V
+5VS
B
F_PANEL
PLED-
PWR
PLED+
Ground
GNDReset
IDELED+
IDELED-
+HD LED RESET
PLED PWRBTN
PWR_FAN
qe3662_P5KPL-CM QSG.indd 2 2008.2.15 10:10:55 AM
