Chapter 2: Hardware informationChapter 2: Hardware information
Chapter 2: Hardware informationChapter 2: Hardware information
Chapter 2: Hardware information
2.5.42.5.4
2.5.42.5.4
2.5.4
PCI Express x16 slotsPCI Express x16 slots
PCI Express x16 slotsPCI Express x16 slots
PCI Express x16 slots

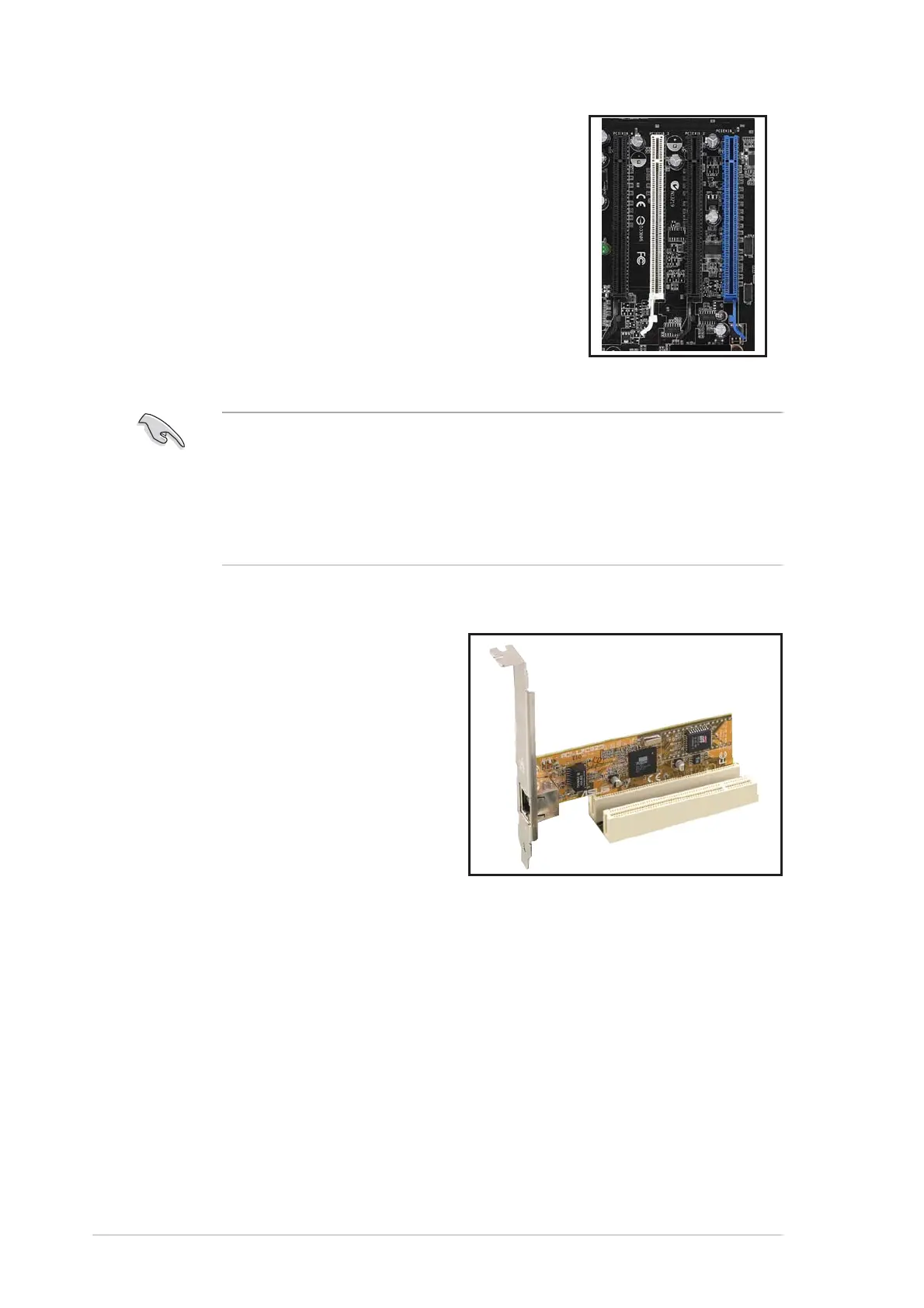

This motherboard supports 4 PCI Express graphics
cards that comply with the PCI Express
specifications. The cards run at x8, x8, x4, x8 mode
or at x16, x0, x4, x0 mode. See the following notes
for details.
Refer to the next page for the list of qualified PCI
Express x16 graphics cards for this motherboard.
•
In CrossFire™ modeIn CrossFire™ mode
In CrossFire™ modeIn CrossFire™ mode
In CrossFire™ mode, install the master card in PCIEX16_1 (blue
slot). Each PCI Express x16 slot works at x8 bandwidth.
•
In single card modeIn single card mode
In single card modeIn single card mode
In single card mode, install the VGA card in PCIEX16_1 (blue
slot) to avail of full x16 bandwidth. Installing in PCIEX16_2 or
PCIEX16_4 (black slots) will cause the card to run at x8 bandwidth
only.
2.5.52.5.5
2.5.52.5.5
2.5.5
PCI slotsPCI slots
PCI slotsPCI slots
PCI slots
The PCI slots support cards such as a
LAN card, SCSI card, USB card, and
other cards that comply with PCI
specifications. The figure shows a
LAN card installed on a PCI slot.

Asus P5W64 WS Professional Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Manageability features	WOL @ PME, WOR @ PME, PXE, AI NET
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Audio chip	ADI AD1988B
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista Windows XP Windows 2000
RAID levels	0, 1, 10

Weight and Dimensions

Depth	245 mm
Width	305 mm
