6-16
Chapter 6: Driver installation

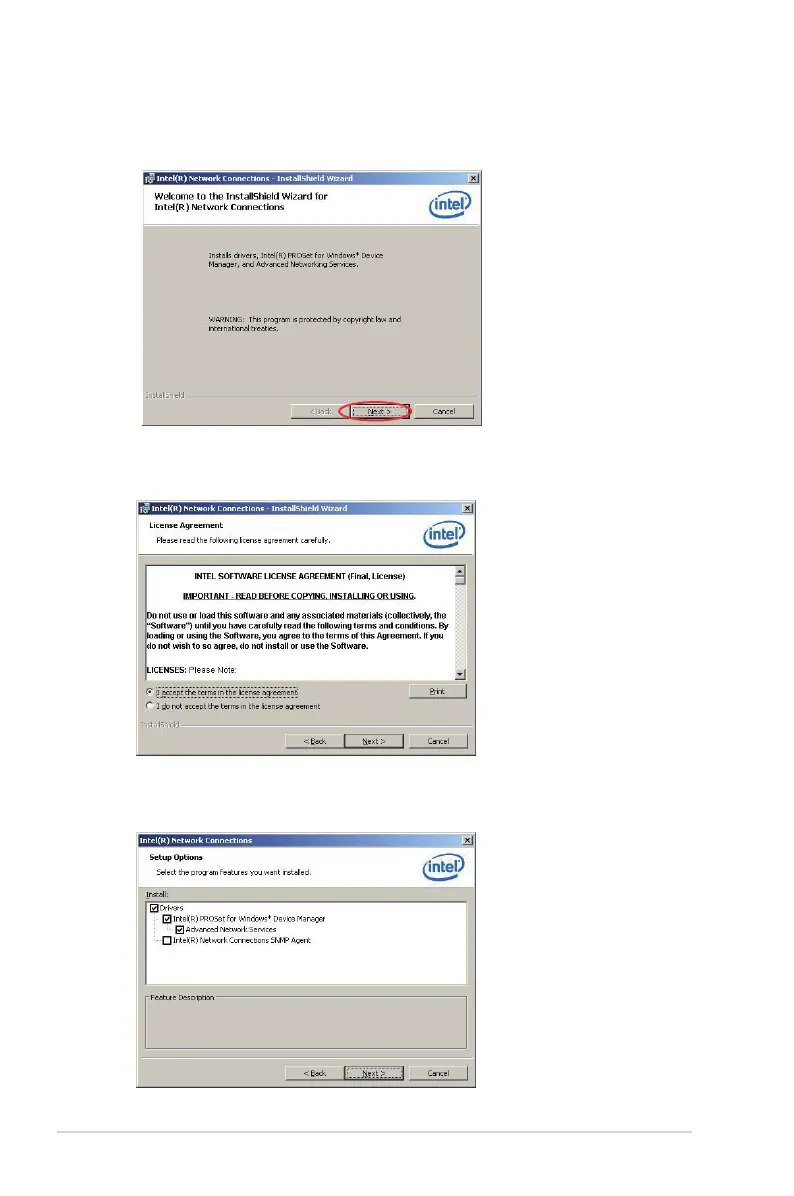

4.
Click
Next
when the
Intel(R) Network Connections–InstallShield Wizard
window appears.
5.
T
oggle
I accept the terms in the license agreement
and click
Next
to
continue.
6.
Click the
Intel(R) PROSet for Windows Device Manager
box, and then click
Next
to start the installation.
165
