2-14 Chapter 2: Hardware information

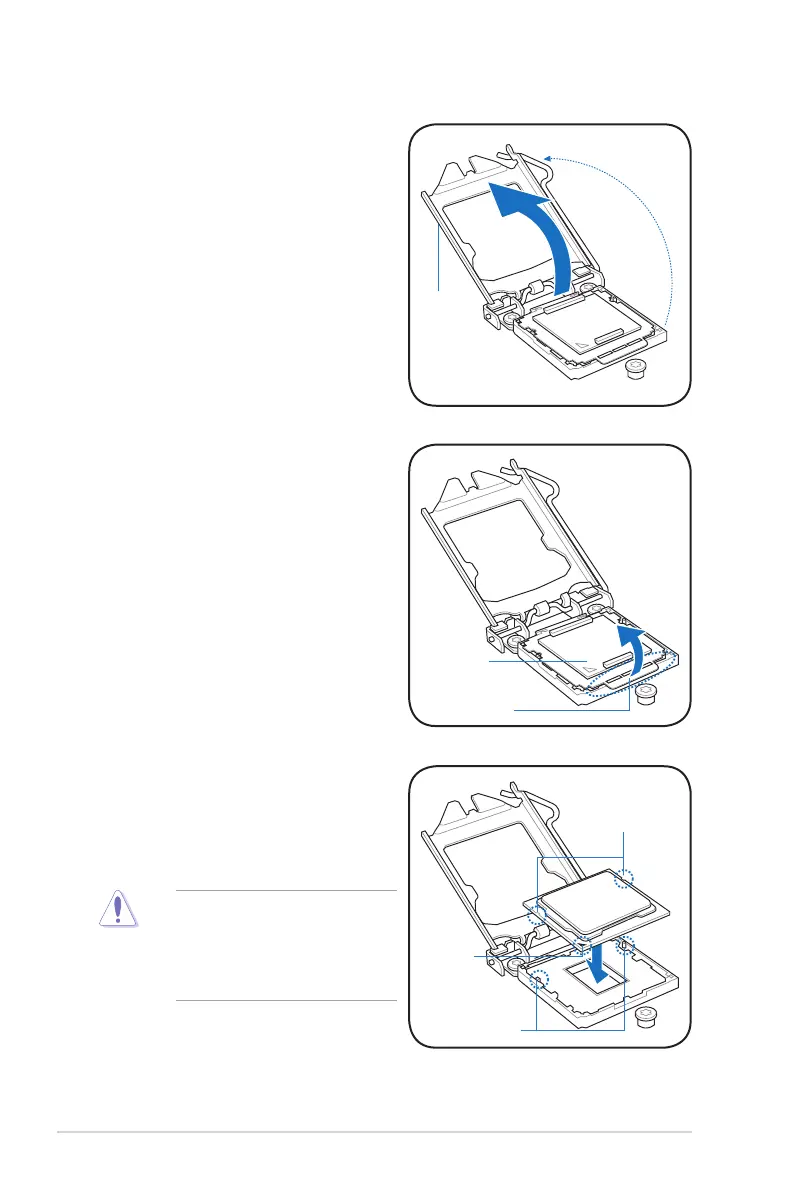

3. Lift the load lever in the direction
of the arrow until the load plate is
completely lifted.
The CPU ts in only one correct
orientation. DO NOT force the
CPU into the socket to prevent
bending the connectors on the
socket and damaging the CPU!
Load plate
Gold
triangle
mark
Alignment keys
CPU notches
5. Position the CPU over the socket,
ensuring that the gold triangle is on
the bottom-left corner of the socket,
and then t the socket alignment
keys into the CPU notches.
4. Remove the PnP cap from the CPU
socket by lifting the tab only.
PnP cap
Cap tab
