2-28 Chapter 2: Hardware information
4. LAN controller setting
(3-pin LAN_SW1–2,
P8B-C/SAS/2L only
)
(3-pin LAN_SW1–4,
P8B-C/4L, P8B-C/SAS/4L only
)

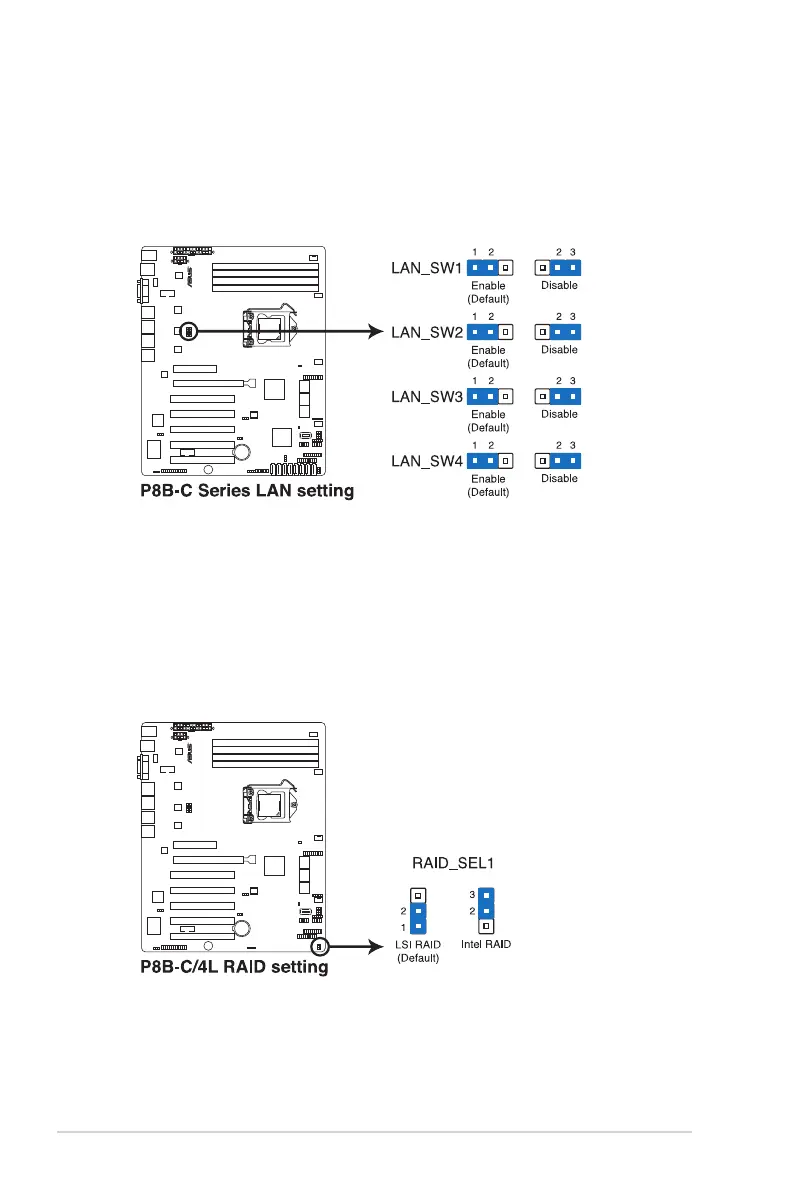

These jumpers allow you to enable or disable the onboard Intel
®
82574L
Gigabit LAN controllers. Set to pins 1-2 to activate the Gigabit LAN feature.
P8B-C/4L only
)
This jumper allows you to select the RAID conguration utility to use when
you create disk arrays. Place the jumper caps over pins 1–2 if you want to
use the LSI Logic Embedded SATA RAID Setup Utility (default); otherwise,
place the jumper caps to pins 2–3 to use the Intel
®
Rapid Storage Technology.
