Asus P8H61-I R2.0 User Manual

1-3 Chapter 1: Product introduction
P8H61-I R2.0
PCIEX16
Super
I/O
F_PANEL
AAFP
ATX12V
EATXPWR
CPU_FAN CHA_FAN
USB78 USB56
Lithium Cell
CMOS Power
LAN1_USB3_12
USB12
RTL
8111F
ASM
1042
ASM
1442
VIA
VT1708S
EPU
32Mb
BIOS
SB_PWR
17.1cm(6.75in)
17.1cm(6.75 in)
Intel
®
H61
SATA3G_1
SATA3G_2
SATA3G_3
SATA3G_4
AUDIO
KBMS
SPDIF_OUT
SPEAKER
DDR3 DIMMA1 (64bit, 240-pin module) DDR3 DIMMB1 (64bit, 240-pin module)
CLRTC
DRCT
DVI_VGA
LGA1155
HDMI
41 2
2
7
8
6
3
911
5
12 10
1.2.4 Layout contents

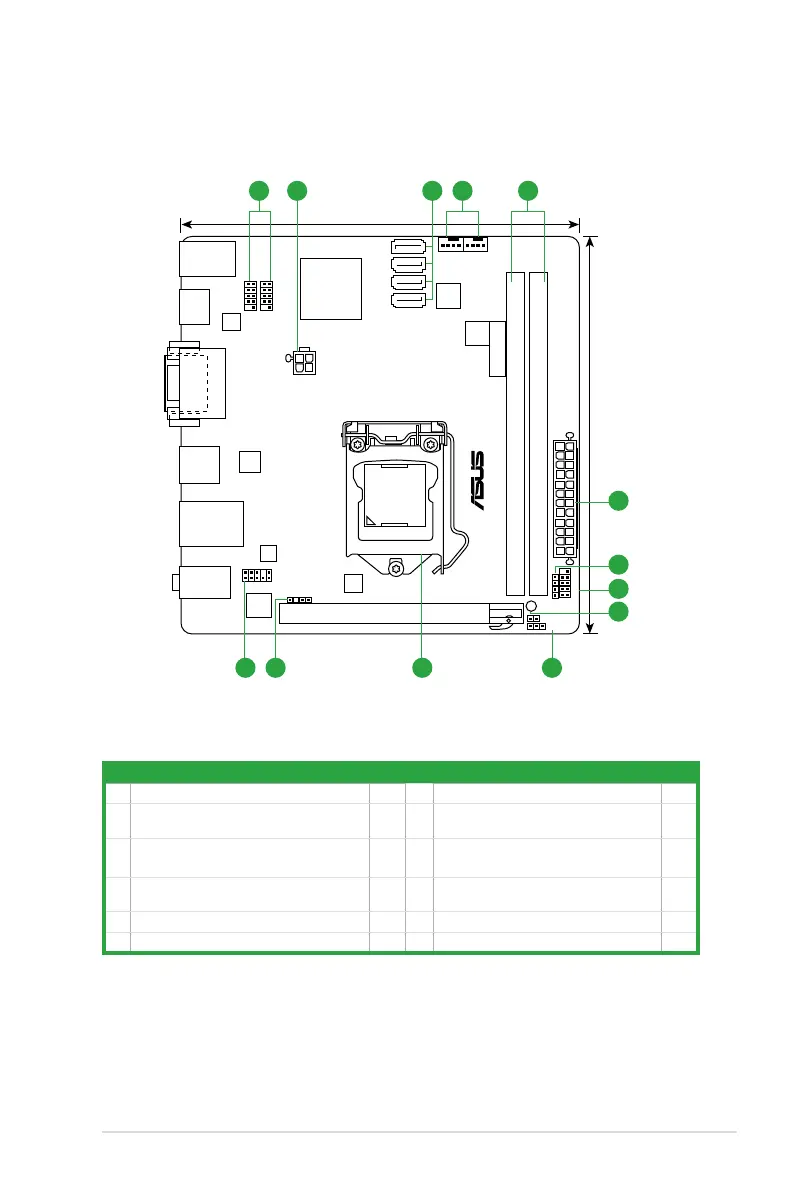

1.2.3 Motherboard layout
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. USB 2.0 connector (10-1 pin USB78, USB56) 1-17 7. System panel connector (10-1 pin F_PANEL) 1-13
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-13 8. Standby power LED (SB_PWR) 1-1
3. Intel
®
H61 Serial ATA 3.0Gb/s connectors (7-pin
SATA3G_1/2/3/4)
1-15 9. Clear RTC RAM (3-pin CLRTC) 1-10
4. CPU and chassis fan connectors (4-pin
CPU_FAN, 4-pin CHA_FAN)
1-14 10. Intel
®
LGA1155 CPU socket 1-13
5. DDR3 U-DIMM slots 1-4 11. Digital audio connector (4-1 pin SPDIF_OUT) 1-16
6. Speaker Connector (4-pin SPEAKER) 1-16 12. Front panel audio connector (10-1 pin AAFP) 1-17

Asus P8H61-I R2.0 Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 2000, 2200 MHz
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1708S
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H61
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Supported storage drive interfaces	SATA, SATA II
Graphics card	HD Graphics
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1748 MB
Parallel processing technology support	Not supported
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16
Special features	2 x Thunderbolt
Cables included	SATA
LAN controller	Realtek RTL8111F
Networking features	Gigabit LAN
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	171 mm
