Asus P8H61-I User Manual

1-13 Chapter 1: Product introduction

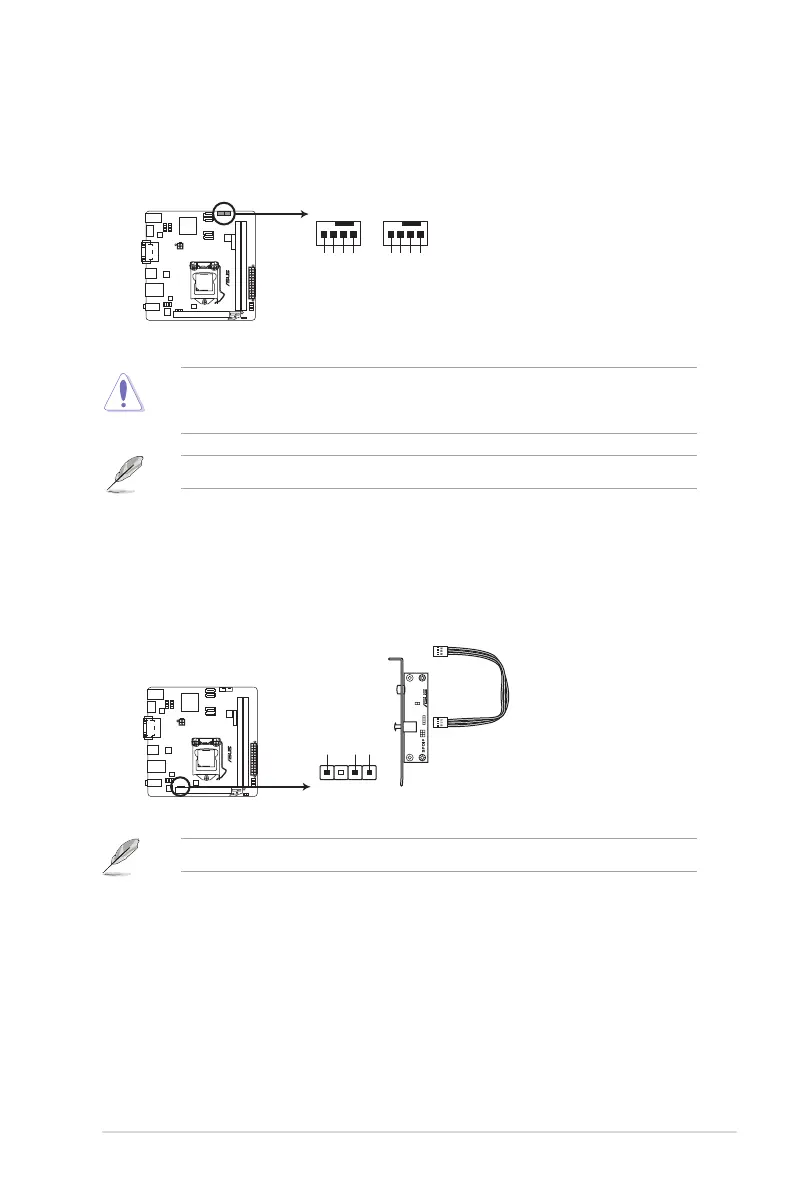

3. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the
system may damage the motherboard components. These are not jumpers! Do not place
jumper caps on the fan connectors!
2. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Only the 4-pin CPU fan and chassis fan support the ASUS FanXpert feature.
P8H61-I
P8H61-I fan connectors
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CHA_FAN
CHA FAN PWM
CHASSIS FAN IN
CHA FAN PWR
GND
SPDIF_OUT
+5V SPDIFOUT GND
P8H61-I
P8H61-I Digital audio connector

Asus P8H61-I Specifications

General

Form Factor	Mini ITX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Maximum Memory	16GB
Memory Type	DDR3
SATA Ports	4 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Video Outputs	1 x HDMI, 1 x DVI-D
RAID Support	No
Memory Standard	DDR3 1333/1066 MHz
Expansion Slots	1 x PCIe 2.0 x16
USB Ports	8 x USB 2.0
LAN	Realtek 8111E, 1 x Gigabit LAN Controller
